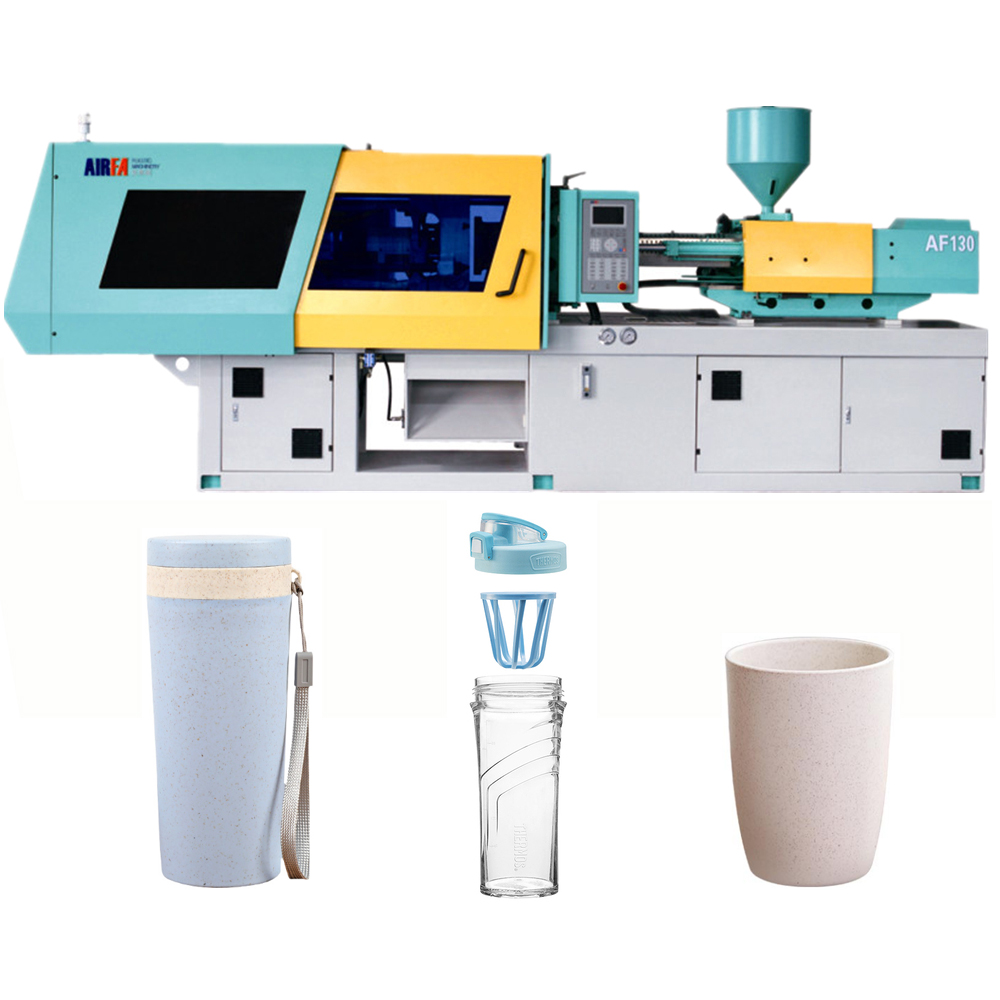

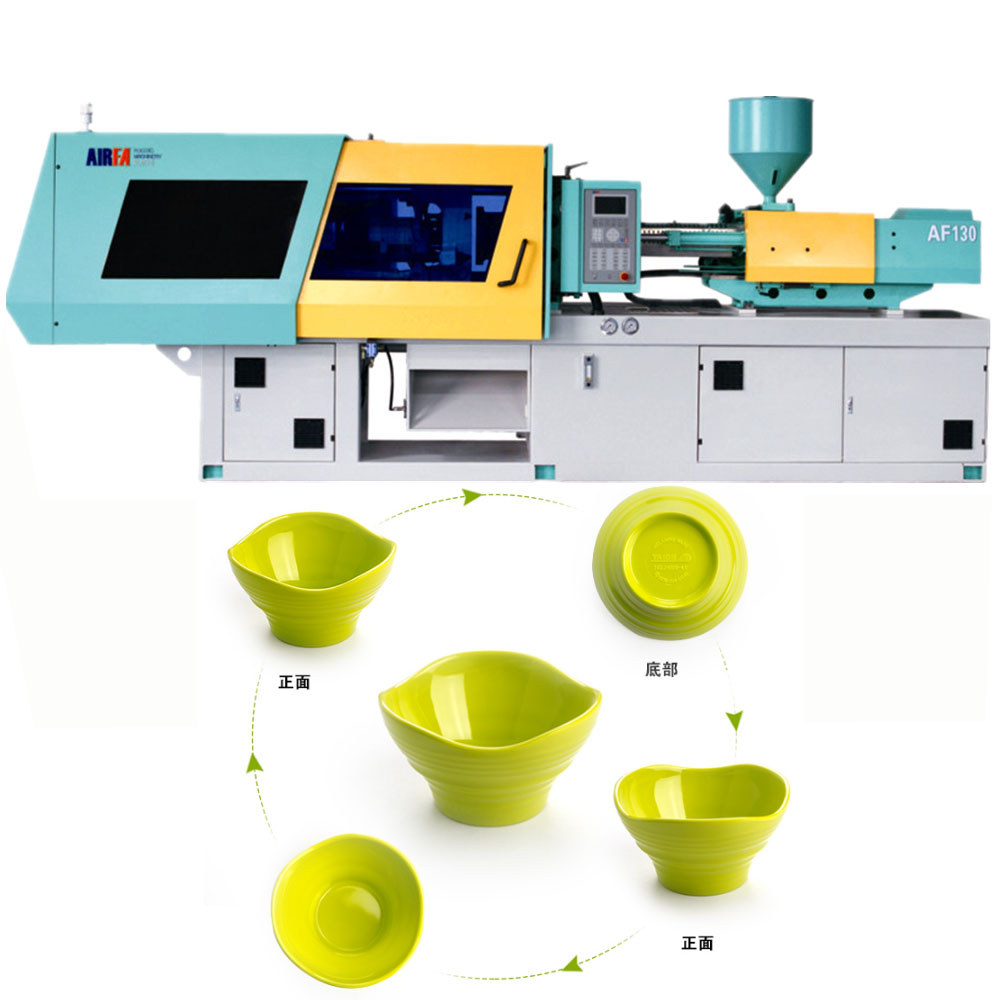

Automatic Plastic Spoon Injection Molding Machine
This automatic plastic injection molding machine is designed for the efficient production of plastic parts, particularly spoons. It features a servo motor for energy-saving operation and precise control.
Technical Specifications
Overview
High-Efficiency Plastic Injection Molding
The AF130 is an automatic plastic injection molding machine optimized for high-volume production of items like plastic spoons. Equipped with a servo motor drive system, it delivers significant energy savings while maintaining precise control over injection parameters. Its robust construction and advanced hydraulic systems ensure consistent part quality and long-term reliability for professional manufacturing environments.
Key Performance Metrics
Performance Highlights
130 AF
Model Series

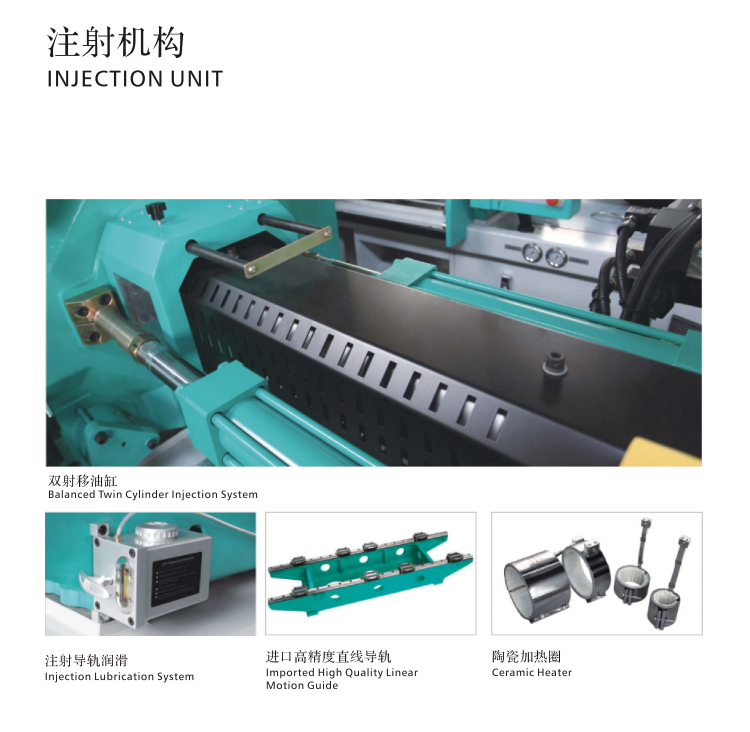

Injection Unit
Injection Components
- Injection lubrication system
- Imported high-quality linear motion guides
- Ceramic heater bands for uniform heating
- Injection System
- Balanced twin cylinder injection system

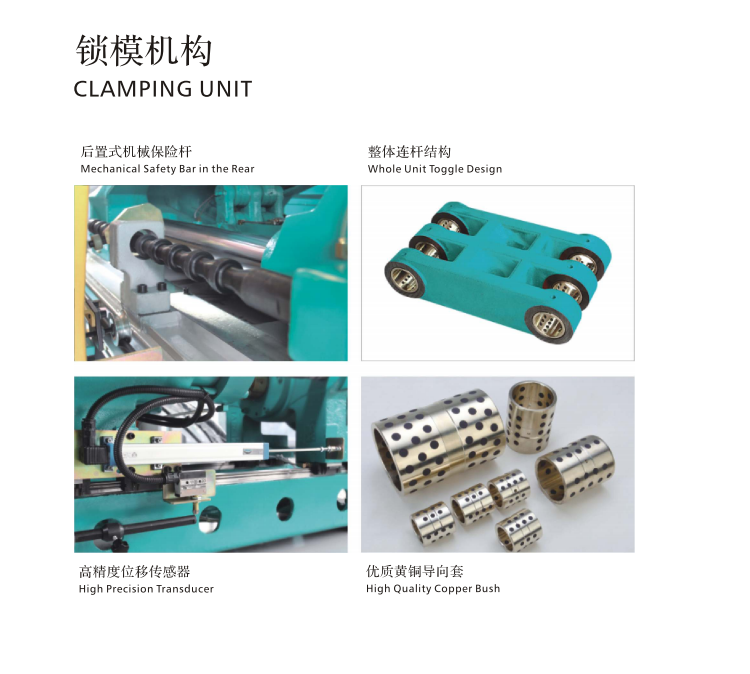

Clamping Unit
Clamping Mechanism
- Whole unit toggle design
- High-precision position transducer
- High-quality copper bushes
- Rear-mounted mechanical safety bar

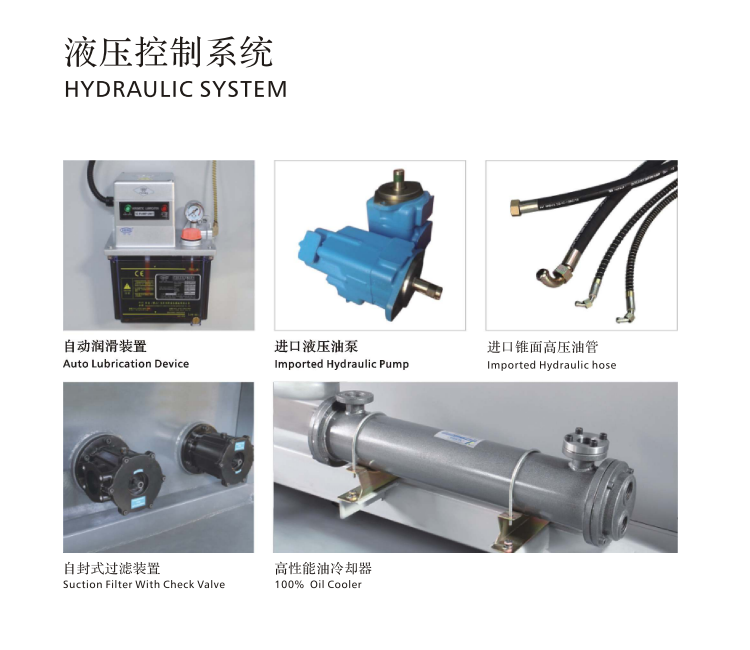

Hydraulic System
Hydraulic Features
- Imported hydraulic pump
- Imported cone-face high-pressure hydraulic hoses
- Self-sealing suction filter with check valve
- High-performance oil cooler (100%)
- Automatic lubrication device

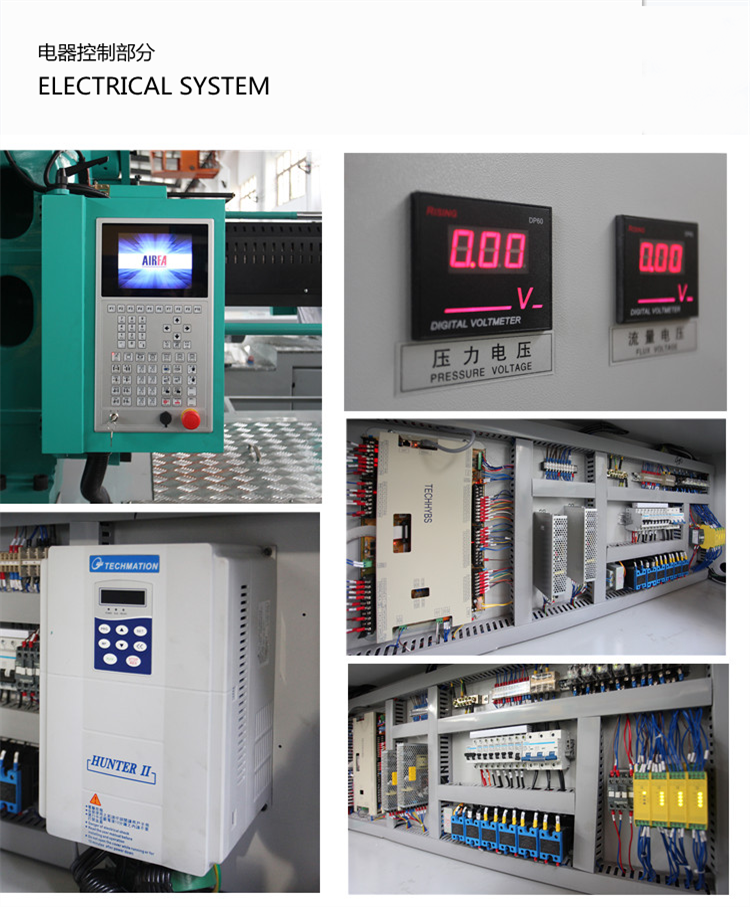

Control System
Electrical & Control
- Techmation Hunter II drive system
- Digital voltmeters for pressure and flow monitoring
- Servo motor energy-saving technology
- Advanced digital control panel
Material Compatibility
- Supported Materials
- General PlasticEngineering PlasticPCPMMAFiber Glass Reinforced Plastic
Efficiency & Sustainability
Energy Efficiency
- Servo motor driven energy-saving operation
- Reduced hydraulic energy consumption during high oil temperatures
- Effective reduction in cooling water consumption
