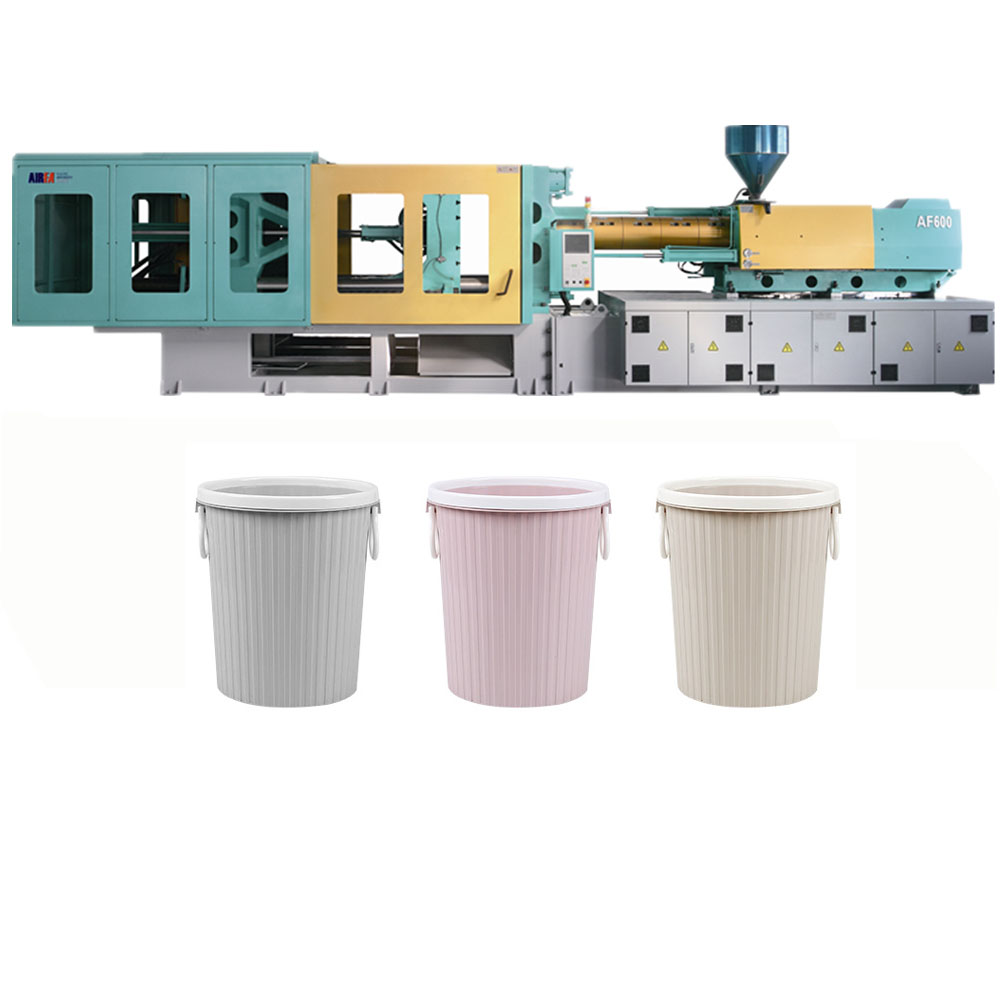

Automatic Plastic Injection Molding Machine with Fixed Pump

High-Performance Automatic Injection Molding

The AF Series injection molding machine utilizes double linear motion guides and a fixed-pump system to deliver fast, reliable, and precise plastic production. Designed for industrial efficiency, it features a servo-control energy-saving system that can reduce power consumption by 30-80% compared to traditional models. This versatile machine is engineered with a robust clamping unit and a high-speed injection structure to meet the demanding requirements of professional B2B manufacturing environments.

Performance Highlights

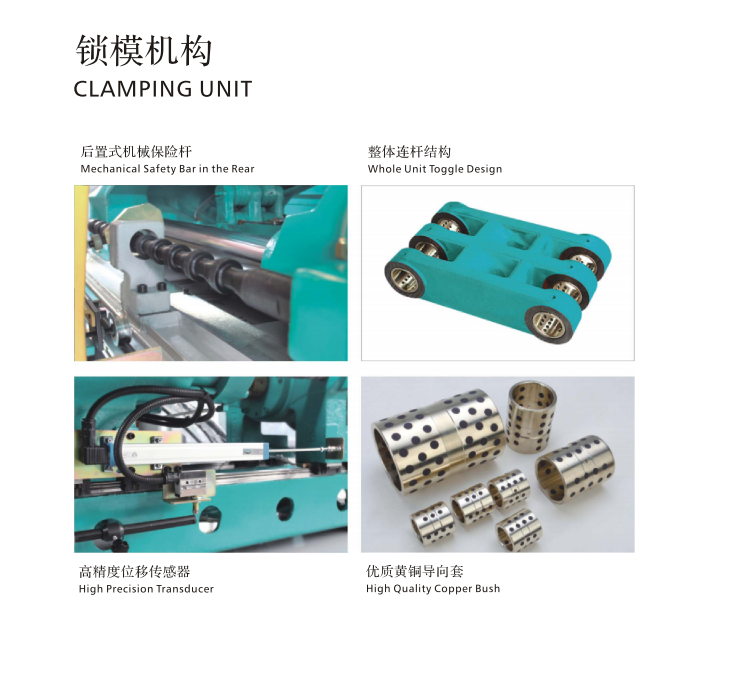

Clamping System Features

• Optimized platen design with enlarged space between tie bars
• Euromap-based layout with T-slots and tap holes
• Hydraulic driven gear-type mold height adjustment
• Mechanical safety interlock for operator protection
• High-strength linkage structure for increased rigidity
• High-precision displacement transducer

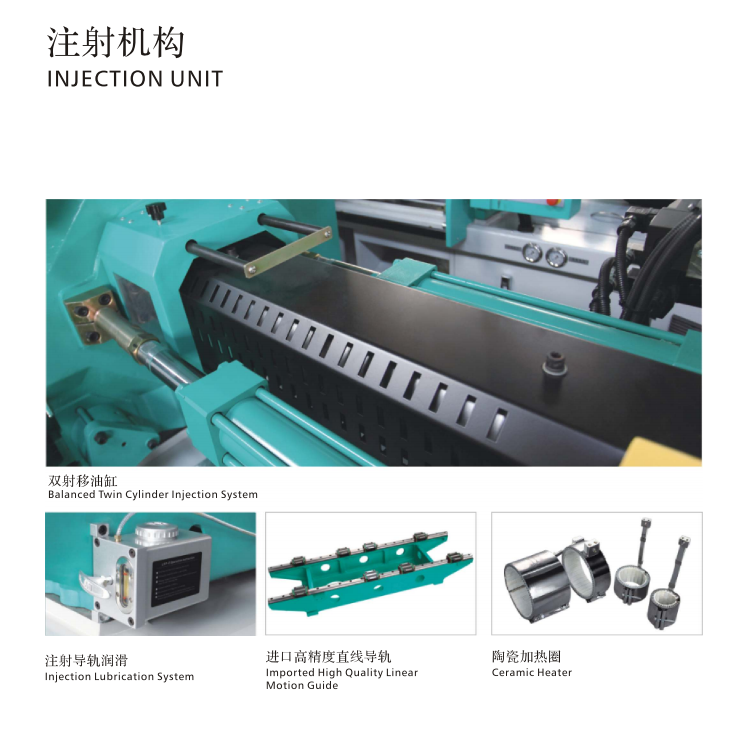

Injection System Features

• High-quality linear motion guides for smooth processing
• Balanced twin-cylinder injection structure
• Specialized screw barrel designs for various applications
• Ceramic heater bands for efficient temperature control
• Integrated injection lubrication system

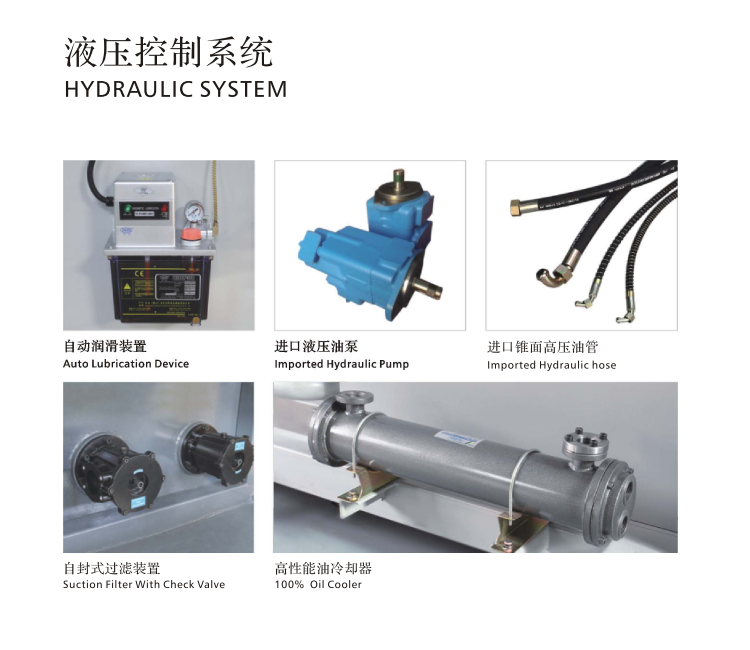

Hydraulic Components

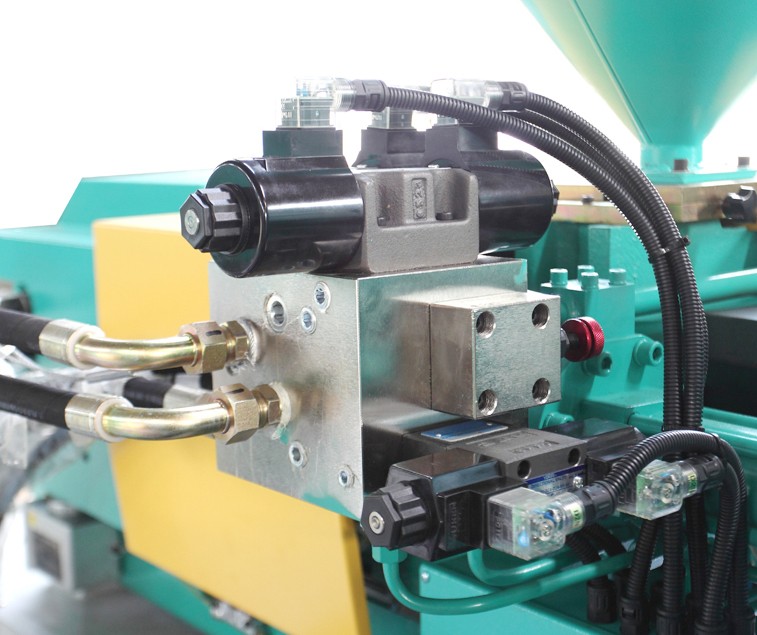

• Double proportional compound valve for pressure and flow control
• Low-noise imported hydraulic pump
• High-performance oil cooler (100% capacity)
• Suction filter with integrated check valve
• Low-pressure mold protection system
• Independent grease and lubrication oil system

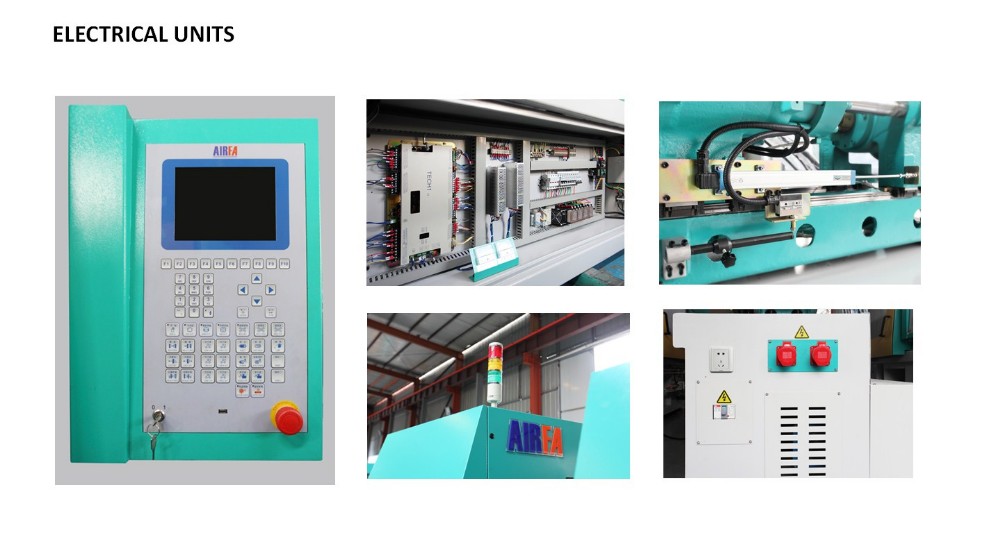

Control System Specifications
