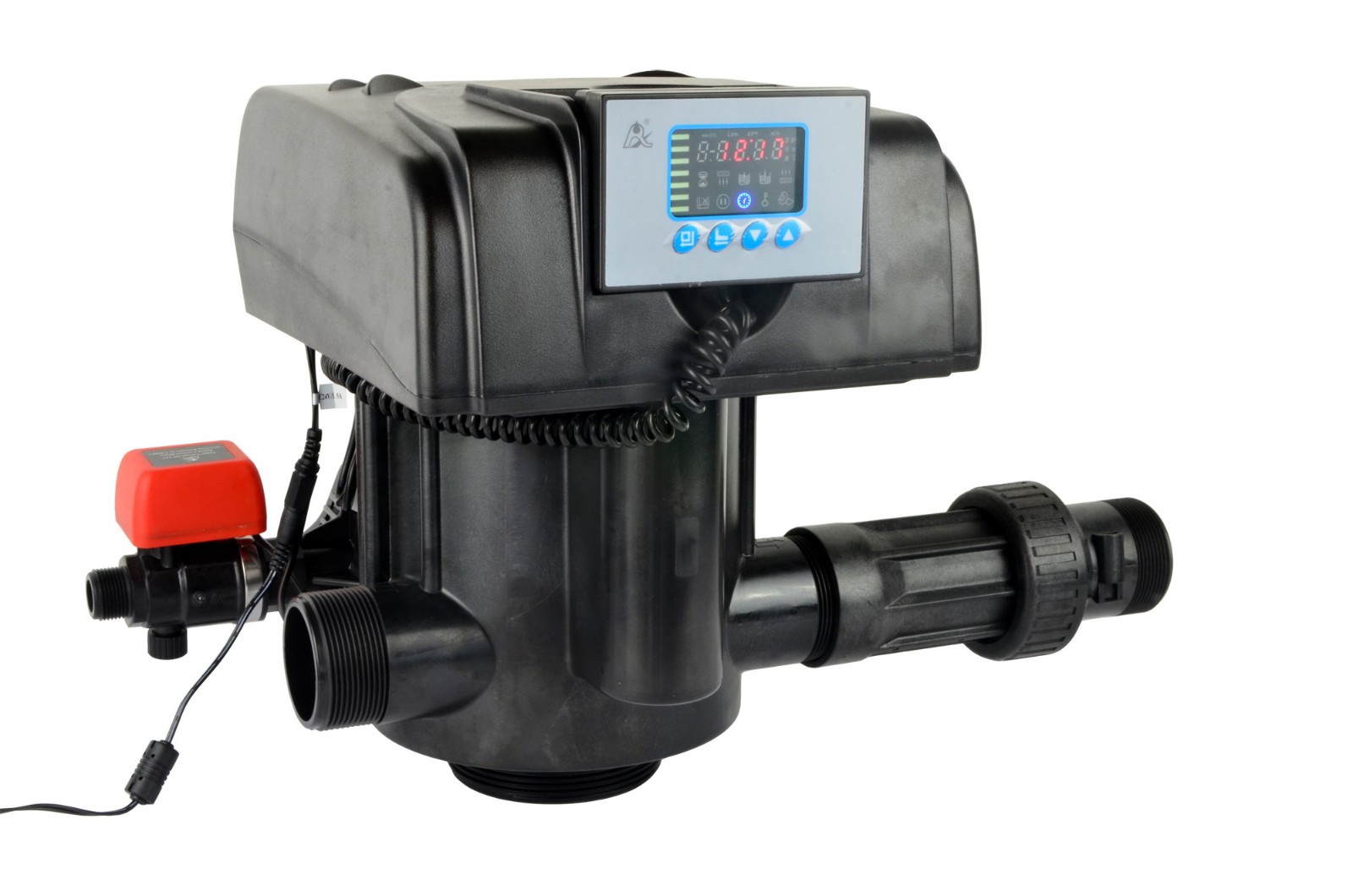

Automatic Multiport Water Softener Valves
Automatic multiport valves designed for efficient water softening processes. Features a digital display for easy programming and monitoring of regeneration cycles.
Technical Specifications
Overview
Professional Water Softening Control
These automatic multiport valves are engineered for high-performance water softening systems in industrial and commercial environments. Designed with corrosion-resistant materials, they support comprehensive regeneration cycles including service, backwash, brine, and rinse phases. Available in both timer-clock and meter-type configurations, these valves offer flexible installation options and reliable operation for large-scale water treatment applications.
Performance Metrics
Key Performance Indicators
15 m3/h
Max Flow Rate
0.6 MPa
Max Pressure
50 ℃
Max Temperature
Technical Specifications
Model Variants
| Model | Type |
|---|---|
| F99A1 | Timer Clock |
| F99A3 | Meter Type |
Port Connections
- Inlet/Outlet: 2" M
- Drain: 1.5" M
- Brine Line: 3/4" M
- Mounting Base: 4" - 8UN
- Riser Pipe: 1.5" D-GB
Operating Environment
- Water Pressure: 0.2-0.6 MPa
- Water Temperature: 5-50 ℃
- Water Turbidity: < 5 FTU
- Relative Humidity: ≤ 95% (25℃)
Power & Installation
- Power Adapter
- Input AC100~240V/50~60HZ, Output DC24V/1.5A
- Mounting Options
- Top MountSide Mount
Features
Regeneration Phases
ServiceBackwashBrine & Slow RinseBrine RefillFast Rinse
