Automatic Filter Valves
Automatic filter valves are designed for reliable control of water filtration systems. The valves automate backwashing and regeneration processes, reducing manual intervention and ensuring optimal filter performance.
Technical Specifications
Product Overview

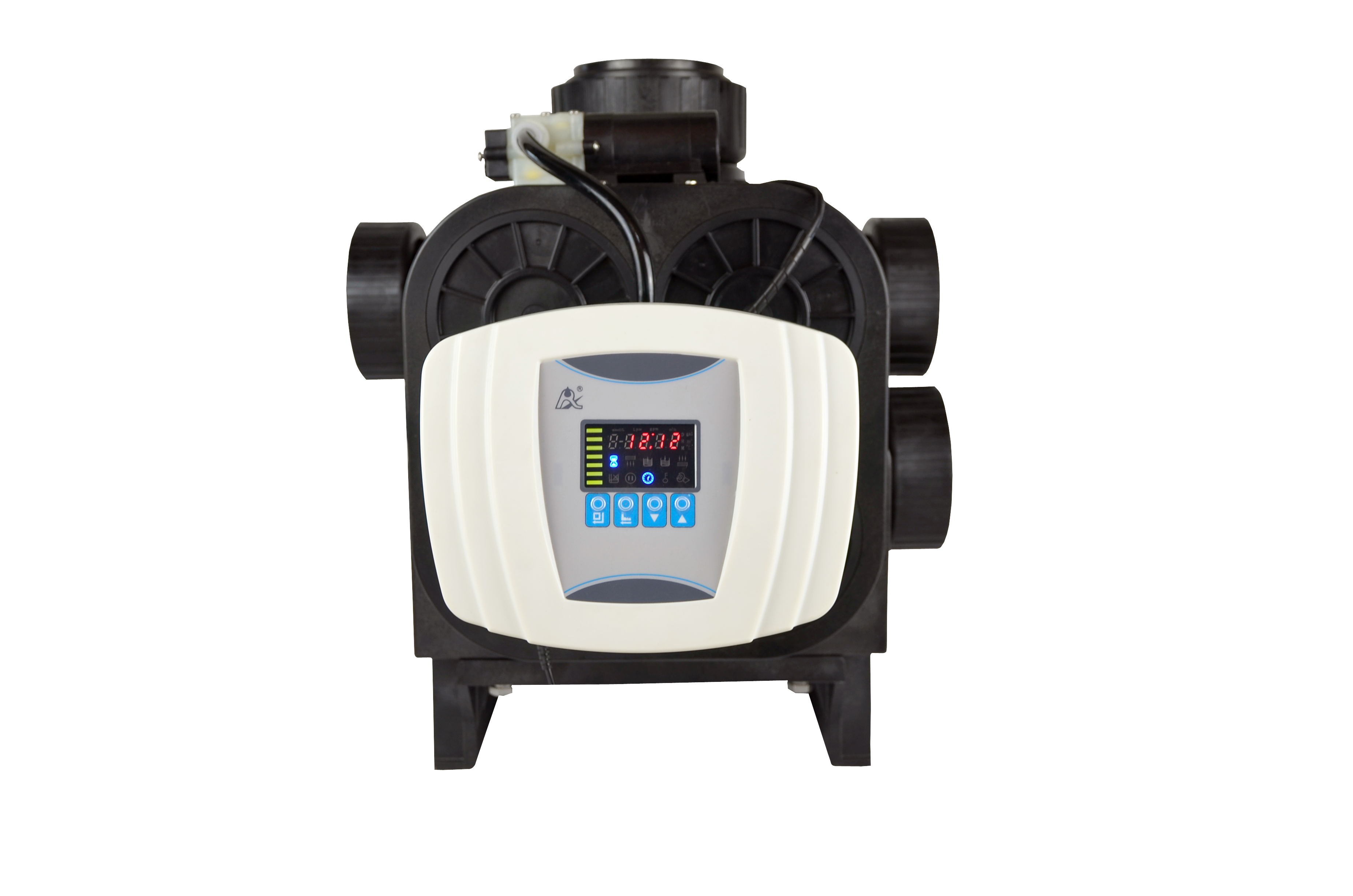

Automatic Filter Valves
These automatic filter valves feature a T-configuration with 4 ports in the valve body, offering versatile control for water filtration systems. Designed for durability and corrosion resistance, they utilize a hydraulically balanced piston to manage different flow passages efficiently. The system supports multiple operational modes, including service, backwash, and fast rinse, making it an ideal solution for activated carbon and sand filter applications.
Technical Specifications
Flow Rate
50 m3/h
Flow Rate
Operating Parameters
| Parameter | Value |
|---|---|
| Water Pressure | 0.2-0.6 MPa |
| Water Temperature | 5-50 °C |
| Water Turbidity | < 20 FTU |
Model Variants
- F96B1: Timer clock type
- F96B3: Meter type
Installation & Compatibility
Connection Sizes
| Connection | Size |
|---|---|
| Inlet/Outlet | DN80 |
| Drain | DN80 |
| Riser Pipe | DN100 |
- Mounting Configuration
- Side mountTop distributor basketBottom distributor basket
- Compatible Filter Tanks
- 36" - 48"
Electrical Requirements
Power Adapter
| Specification | Value |
|---|---|
| Input | AC100~240V / 50~60HZ |
| Output | DC24V / 4A |
Applications
Compatible Filter Media
Quartz sandActivated carbon
