Technical Specifications
Overview

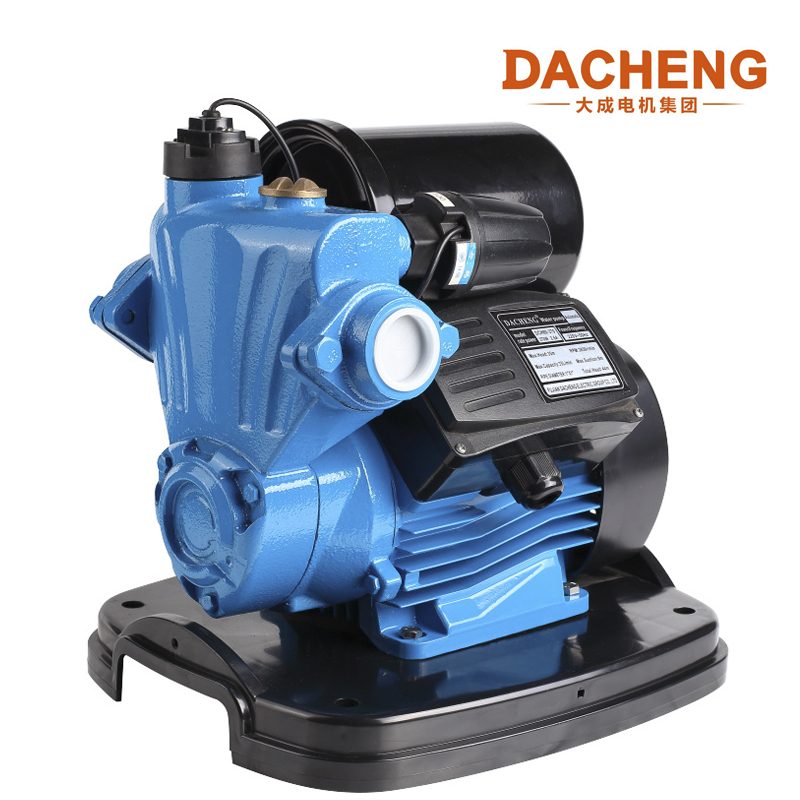

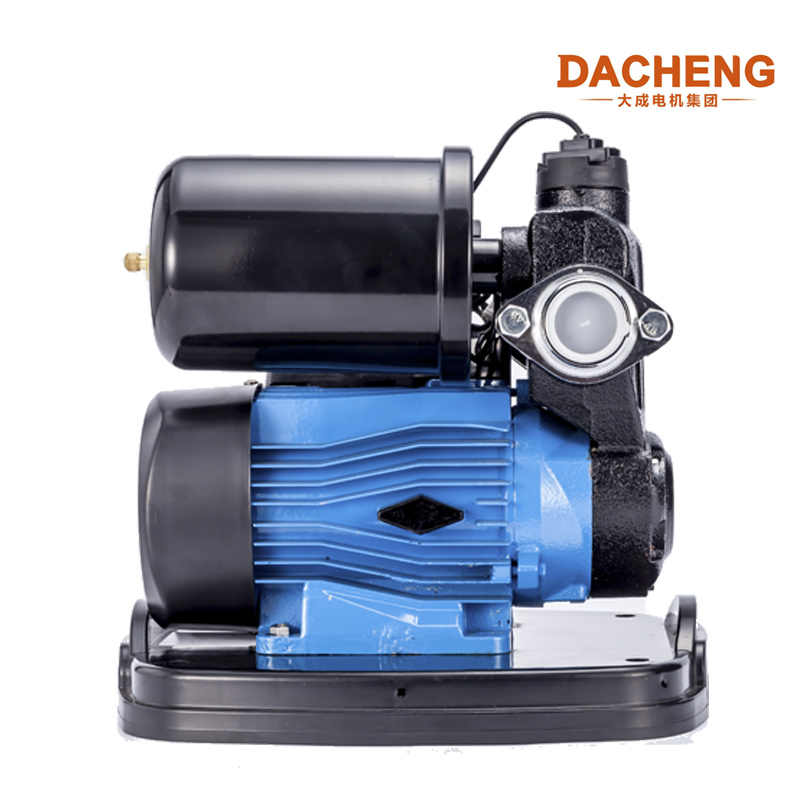

High-Efficiency Automatic Water Pump
The DCH series is a newly designed automatic turbine self-absorbing pump engineered for both cold and hot water applications. Built with a robust iron pump body, aluminum housing, and a brass impeller, this unit ensures durability and reliable performance for residential and light commercial water boosting. It features automatic start/stop functionality based on water demand, providing consistent pressure and efficient operation.
Performance Metrics
Key Performance Indicators
0.5 HP
Power
33 m
Max Head
2.5 m³/h
Max Capacity
9 m
Max Suction
Technical Specifications
Electrical Data
| Parameter | Value |
|---|---|
| Voltage | 220V-240V |
| Frequency | 50Hz |
| Power Rating | 370W |
| Rated Current | 2.5A |
| Speed | 2850r/min |
Operational Limits
- Max Liquid Temperature: 40°C
- Pipe Diameter: 1 inch x 1 inch
- Thermal Overload Protection Included
- Construction Materials
- Iron Pump BodyAluminum HousingBrass Impeller
Applications
Suitable Applications
Residential Water SupplyIrrigation SystemsPressure BoostingLight Industrial Use
