Technical Specifications
System Overview

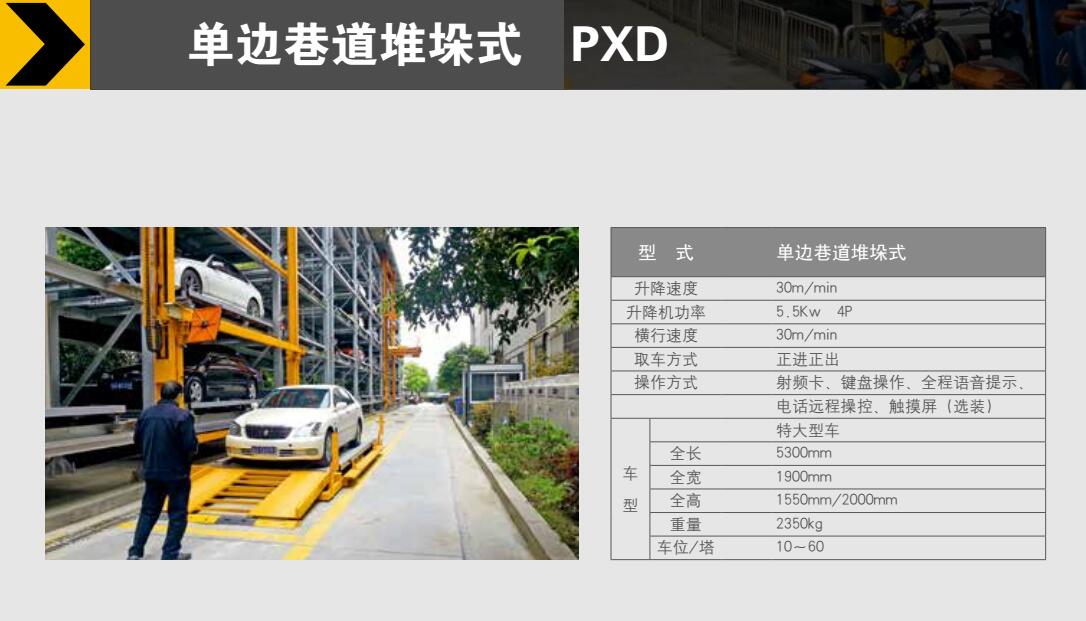

Automated Vertical Vehicle Stacking System
This automated roadway stacking parking system is engineered for maximum space efficiency in urban environments. Featuring a multi-level structure and high-speed lifting platforms, it significantly optimizes parking capacity while reducing traffic congestion. The system supports flexible operation methods and is designed to accommodate extra-large vehicles, making it an ideal solution for constrained urban parking projects.
Performance Specifications
Lifting Speed
30 m/min
Lifting Speed
30 m/min
Transverse Speed
- Lifting Motor Power
- 5.5 kW
Vehicle Capacity
Supported Vehicle Dimensions
| Dimension | Value |
|---|---|
| Length | 5300mm |
| Width | 1900mm |
| Height | 1550mm / 2000mm |
System Configuration
- Capacity per Tower
- 10-60 spaces
- Entry/Exit Method
- Forward entry and exit
Control & Operations
Operation Methods
- RF card
- Keyboard operation
- Full voice prompts
- Telephone remote control
- Touch screen (optional)
Technical Details
- Equipment Weight
- 2350 kg
