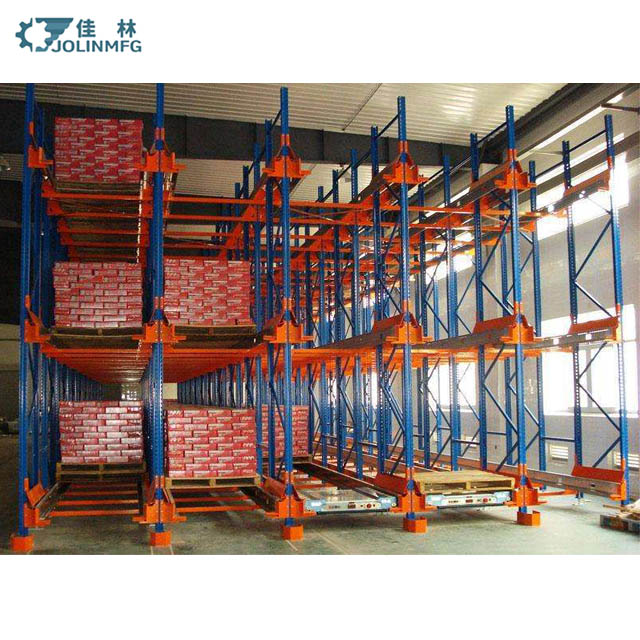

Automated Mobile Storage Racking System

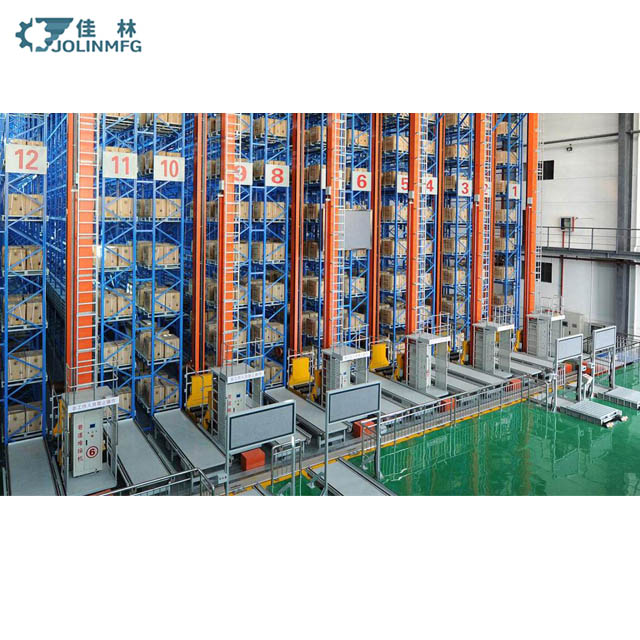

This automated warehouse system stores and retrieves materials without human intervention. Materials are stored on multi-layer shelves and accessed by a roadway stacking crane, with computer control for automated access and management.
Technical Specifications
Overview
Automated Storage & Retrieval Solution
This automated warehouse system provides high-density storage and retrieval without direct human intervention, utilizing multi-layer shelves and standard bins or pallets. Controlled by a centralized computer system, it employs roadway stacking cranes to optimize material access and inventory management. The solution is fully customizable to meet specific industrial requirements, significantly improving operational efficiency and space utilization.
System Capabilities
Integrated Solutions
- Convey & Deliver Machine/Line Systems
- Packing Machine Integration
- Palletizer Robot (Bags, cartons, bottles, and cans)
- Automatic Guided Vehicles (AGV)
- Stereoscopic Warehouse Design
- Vertical Elevator Systems
- Automatic Central Kitchen Applications
Racking Specifications
Surface Finish
Corrosion Protection
- Material
- Steel Q235B
- Loading Capacity
- 6000 kg/layer
- Load Range per Layer
- 500-6000kg
- Standard Colors
- BlueOrangeGreyCustomized
Stacker Crane Performance
Crane Performance Metrics
25 m
Max Rack Height
3 t
Max Heavy Duty Load
Stacker Crane Specifications
| Type | Load Capacity | Max Rack Height |
|---|---|---|
| Light Duty | 20-200kg | <=25m |
| Medium Duty | 250-1500kg | <=25m |
| Heavy Duty | 2.0t / 2.5t / 3.0t | <=25m |
Customization & Support
- Customizable Components
- Upright DimensionsBeam SizeStacker Crane HeightCargo Size
- Installation Instruction
- Yes
