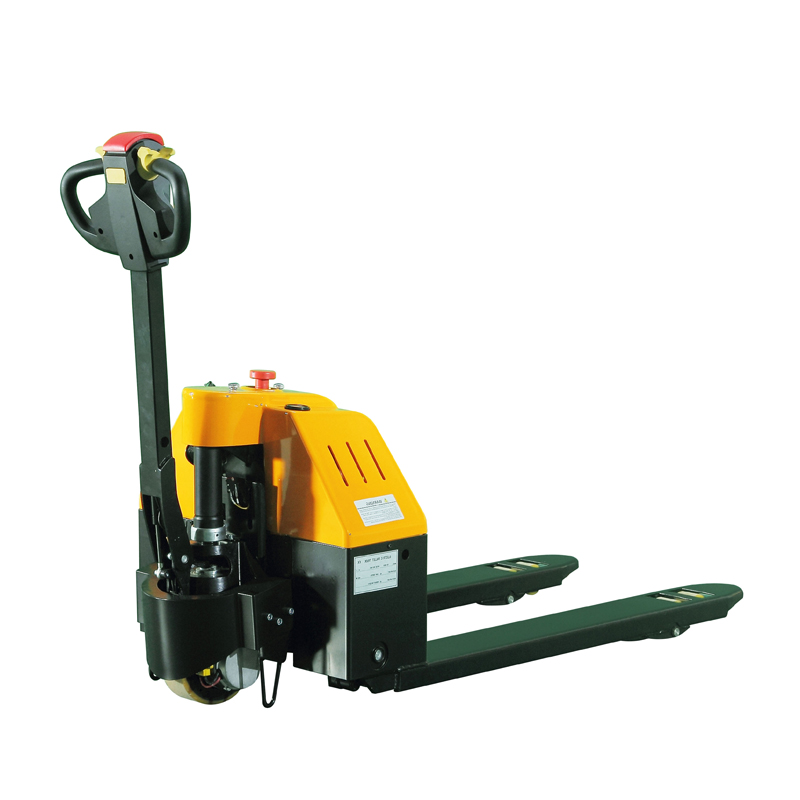

Electric Pallet Truck 1500kg Capacity
This electric pallet truck is a robust and efficient material handling solution designed for various industrial and agricultural settings. It offers a 1500kg lifting capacity for the safe and reliable transport of heavy loads.
Technical Specifications
Overview
High-Efficiency Electric Pallet Truck
This electric pallet truck is a robust material handling solution designed for efficient lifting, carrying, and maneuvering of heavy loads in industrial and agricultural settings. With a 1500kg capacity, it ensures safe transport while maintaining an ergonomic design to reduce operator fatigue. Its compact chassis and intuitive controls allow for precise operation in tight spaces, making it a reliable choice for warehouse productivity.
Performance Metrics
Rated Load Capacity
1,500 kg
Rated Load
Lifting Specifications
- 85
- 200
Dimensions
Dimensions Table
| Parameter | Value | Unit |
|---|---|---|
| Overall Length | 1,624 | mm |
| Overall Width | 690 | mm |
| Overall Height | 1,225 | mm |
| Tread Length | 1,270 | mm |
| Front Wheel Track | 530 | mm |
- Fork Size (L x W x H)
- 1150 x 160 x 50 mm
Technical Details
Power System
- Pumping Station: 24V/0.8Kw
- Drive Motor: 24V/0.6Kw
- Battery: 2x12V/65Ah
Weight Specifications
- 212
- 228
- Wheel Specifications
- Front Wheel: φ80x60mmDrive Wheel: φ210x70mm
- Turning Radius
- 1440 mm
- Load Center
- 500 mm
