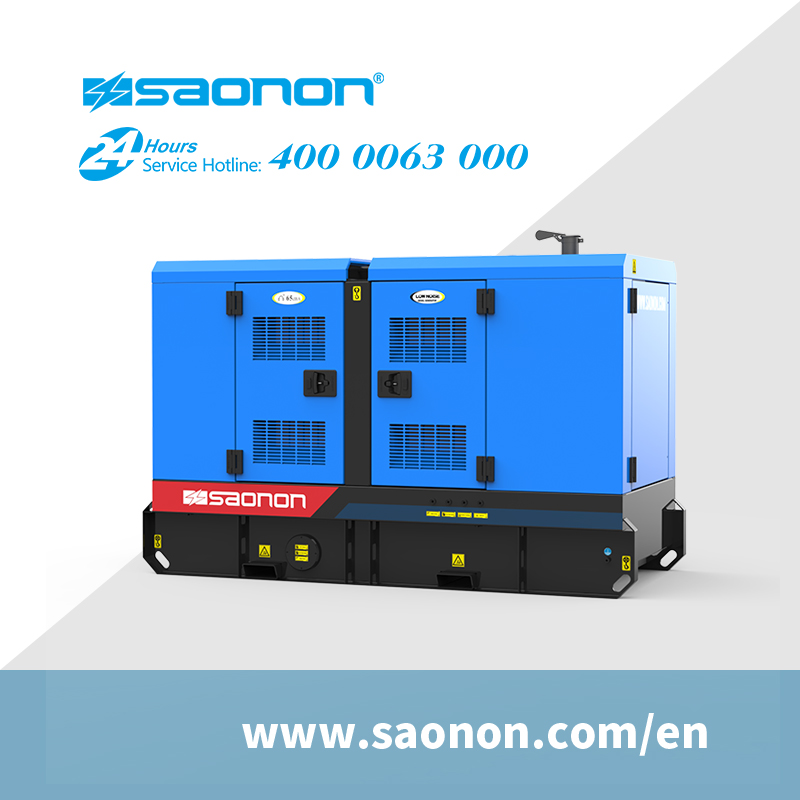

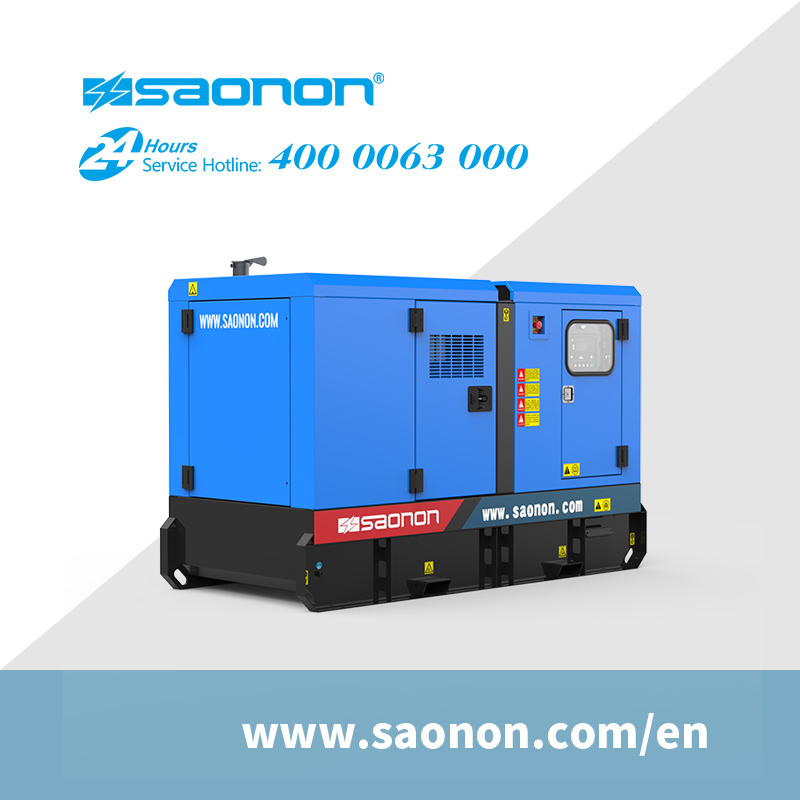

Australian Standard Genset
This genset is designed to meet Australian standards, ensuring safety and performance. It provides a stable and consistent power supply, making it suitable for both prime and standby power needs.
Technical Specifications
Product Overview
Australian Standard Power Generation Solution
Designed to meet rigorous safety and performance standards, this high-performance genset provides reliable power for both prime and standby applications. Engineered for silent operation in noise-sensitive environments, it features advanced soundproofing materials and residential silencers. Its robust construction includes specialized safety protections, making it an ideal choice for industrial, commercial, and critical infrastructure projects.
Technical Specifications
Key Performance Metrics
39 kVA
ESP Rating
43 kVA
PRP Rating
400 V
Rated Voltage
50 Hz
Frequency
Physical and Operational Data
| Parameter | Value |
|---|---|
| Model | S45YCS |
| Engine | 4D24TG0/A |
| Alternator | PI144J |
| Rated Speed | 1500 r/min |
| Weight | 2400 kg |
| Dimensions (LxWxH) | 2250*1000*975 mm |
Standards and Safety
Safety Design Features
- Double oil tank system to prevent contamination and leakage
- Internal coolant recycle system for zero emission leakage
- Integrated electrical components meeting AS/NZS3100-A3
- M-shape tuyere design to prevent debris entry
- Compliance and Safety
- AS/NZS3100-A3 CertifiedLeakage ProtectionRain-proofDust-proof
Operational Convenience
Maintenance and Handling
- External refueling design
- Visualized operation interface
- Forklift boot and drag hole for versatile transport
- Car-grade rubber seals for maintenance access
