ATV Electric Winch with Synthetic Rope

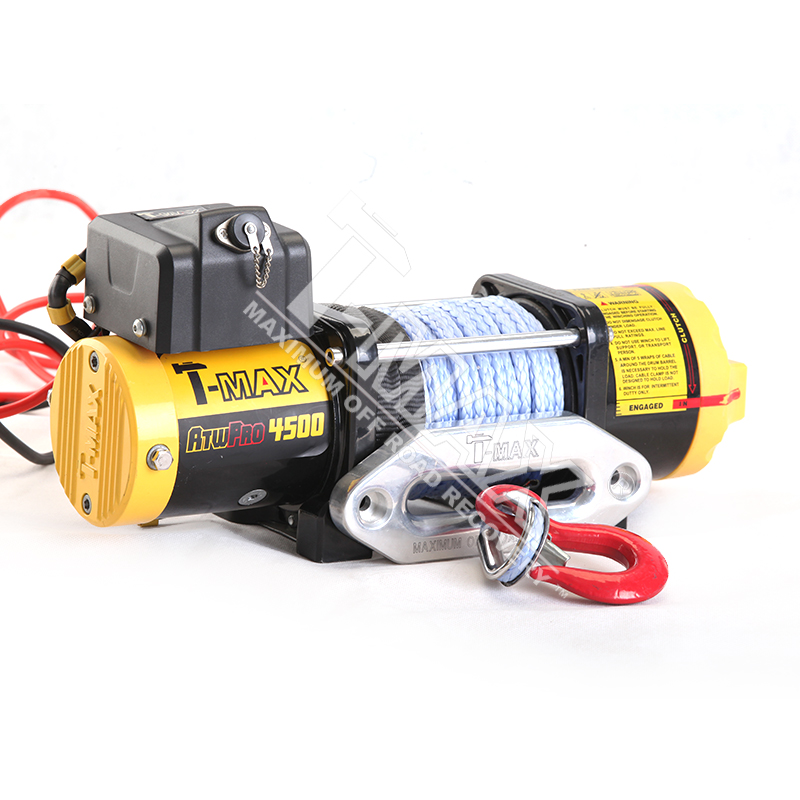

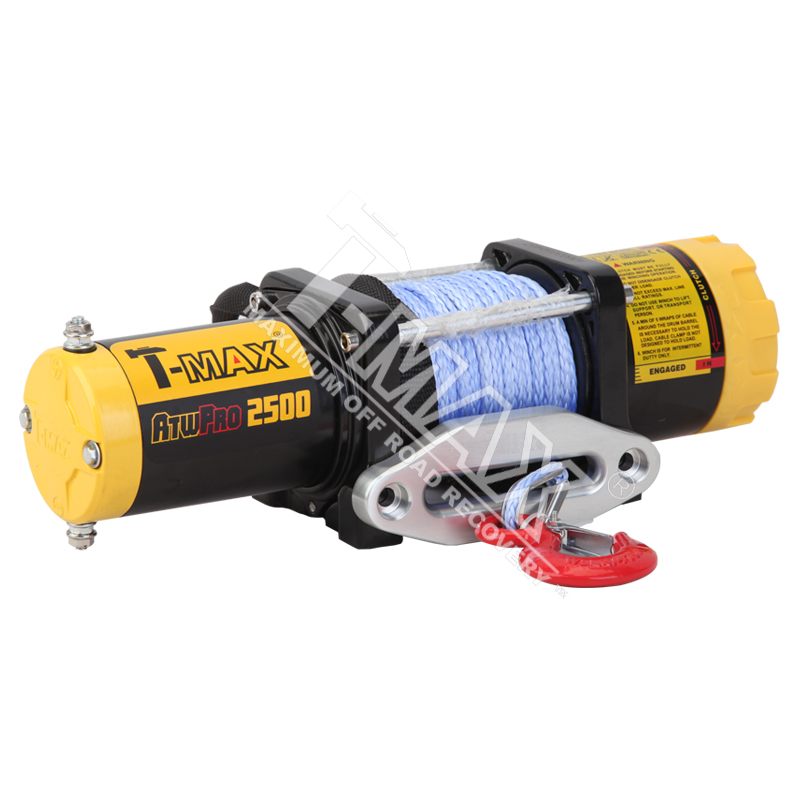

This electric winch is designed for ATVs and UTVs, providing reliable pulling power for recovery operations. It features a durable synthetic rope and a high-torque motor.
Technical Specifications
Overview
High-Performance ATV Electric Winch
This electric winch is engineered for reliable recovery and towing in demanding off-road environments. Designed for compatibility with ATVs, UTVs, and similar utility vehicles, it features a robust motor and an automatic braking system within the drum for enhanced safety. The unit comes equipped with a durable synthetic rope and a wired remote control, ensuring ease of operation during recovery tasks.
Performance Metrics
Rated Line Pull
3,500 lbs
Model 3500
6,000 lbs
Model 6000
Motor Power
| Model Capacity | Power Output |
|---|---|
| 3500 lbs | 12V DC 800W |
| 6000 lbs | 12V DC 1400W |
Technical Specifications
Synthetic Rope Dimensions
| Model Capacity | Rope Diameter | Rope Length |
|---|---|---|
| 3500 lbs | 5.5 mm | 15 m |
| 6000 lbs | 7.5 mm | 15 m |
Installation & Usability
Control System
- Wired handheld remote (3.7m cable)
- Wireless remote control (optional)
- Estimated Installation Time
- 40 minutes (varies by vehicle model)
- Mounting Locations
- Front BumperRear BumperQuick Mounting Bracket
Features
Safety & Durability
Automatic Drum BrakingWaterproof StructureAnti-UV Coating
