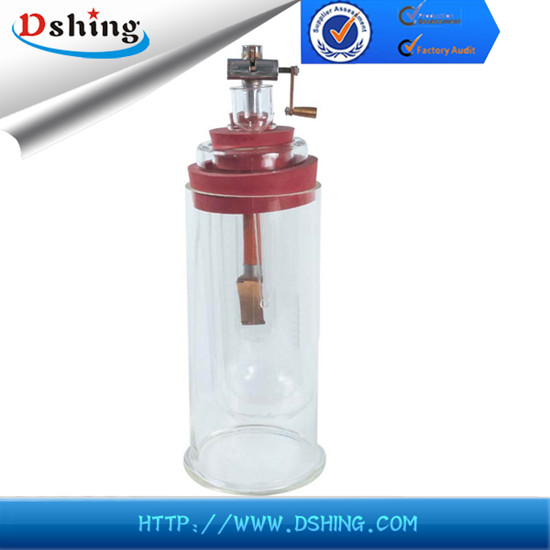

Asphalt Fraass Breaking Point Tester
This tester determines the Fraass breaking point of asphalt. It cools asphalt thin film on a metal sheet and bends it to find the temperature at which it breaks.
Technical Specifications
Product Overview
Precision Asphalt Testing
The Asphalt Fraass Breaking Point Tester is a specialized laboratory instrument engineered to determine the temperature at which asphalt transitions from a solid to a brittle state. By utilizing a controlled cooling environment and a precise mechanical stirring system, this apparatus provides essential data for pavement design, material selection, and quality control. Its durable construction ensures consistent performance and reliability in both laboratory and field testing environments.
Technical Specifications
Temperature Range
-30 °C
Minimum
100 °C
Maximum
- Temperature Accuracy
- 1 °C
Mechanical Dimensions
- Steel Sheet Size
- 41 x 20 x 0.15 mm
- Maximum Clamp Distance
- 44 mm
- Base Height Difference
- 3.5 mm
Features
Key Features
- Cylindrical glass container
- Hand-cranked stirrer mechanism
- Integrated heating system
- Temperature control system
- Visual observation method
