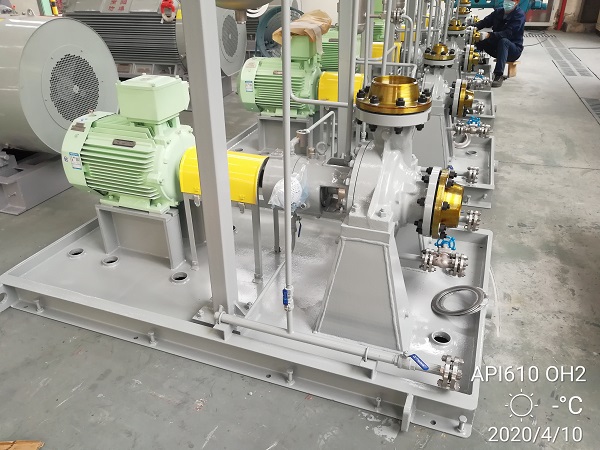

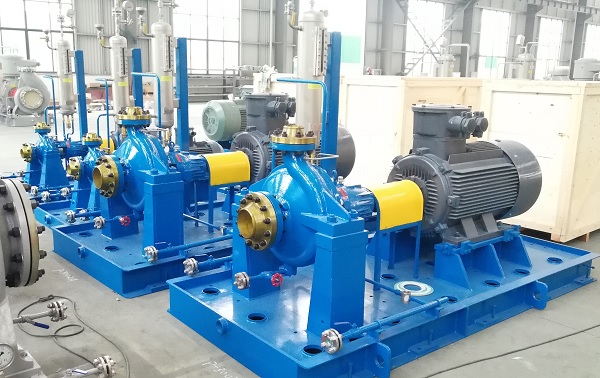

API610 OH2 Petrochemical Centrifugal Pump
This petrochemical pump is a centrifugal, horizontal, single-stage, single-suction, and cantilever type. It is designed according to API 610 standards.
Technical Specifications
Product Overview
API610 OH2 Petrochemical Centrifugal Pump
The SZE series is a horizontal, single-stage, cantilever-type centrifugal pump designed strictly according to API 610 11th Edition standards. Engineered for the demanding requirements of the petrochemical industry, it features a robust back pull-out design that allows for maintenance without disturbing the hydraulic model or piping. This series offers high efficiency, superior anti-cavitation performance, and intelligent monitoring provisions for temperature and vibration.
Technical Specifications

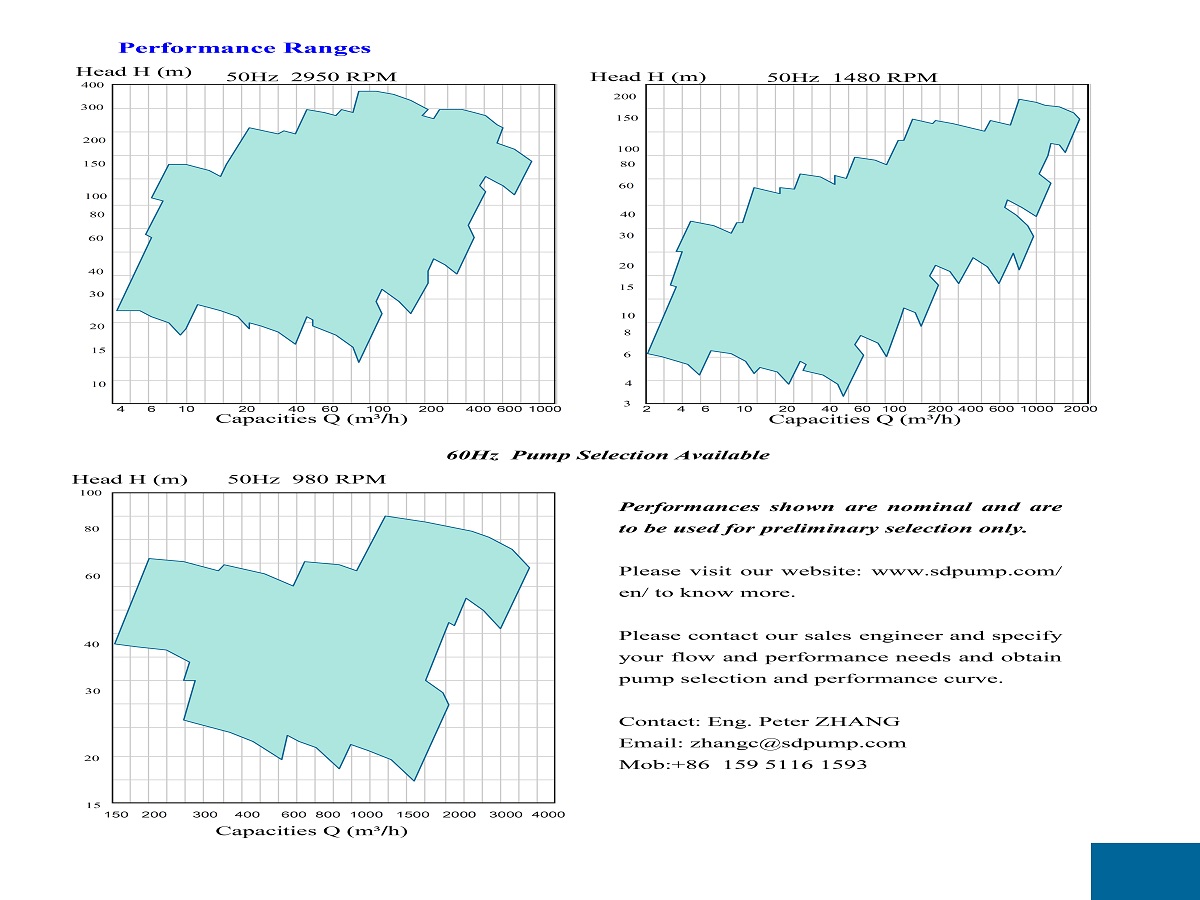

Performance Metrics
2,600 m3/h
Max Flow Capacity
300 m
Max Discharge Head
5 MPa
Design Pressure
- Nozzle Diameter
- 25 to 400 mm
- Operating Temperature Range
- -80°C to +450°C
Design & Construction
Pump Configuration
- Horizontal
- Single stage
- Single suction
- Cantilever type (OH2)
- Centerline or Foot mounted

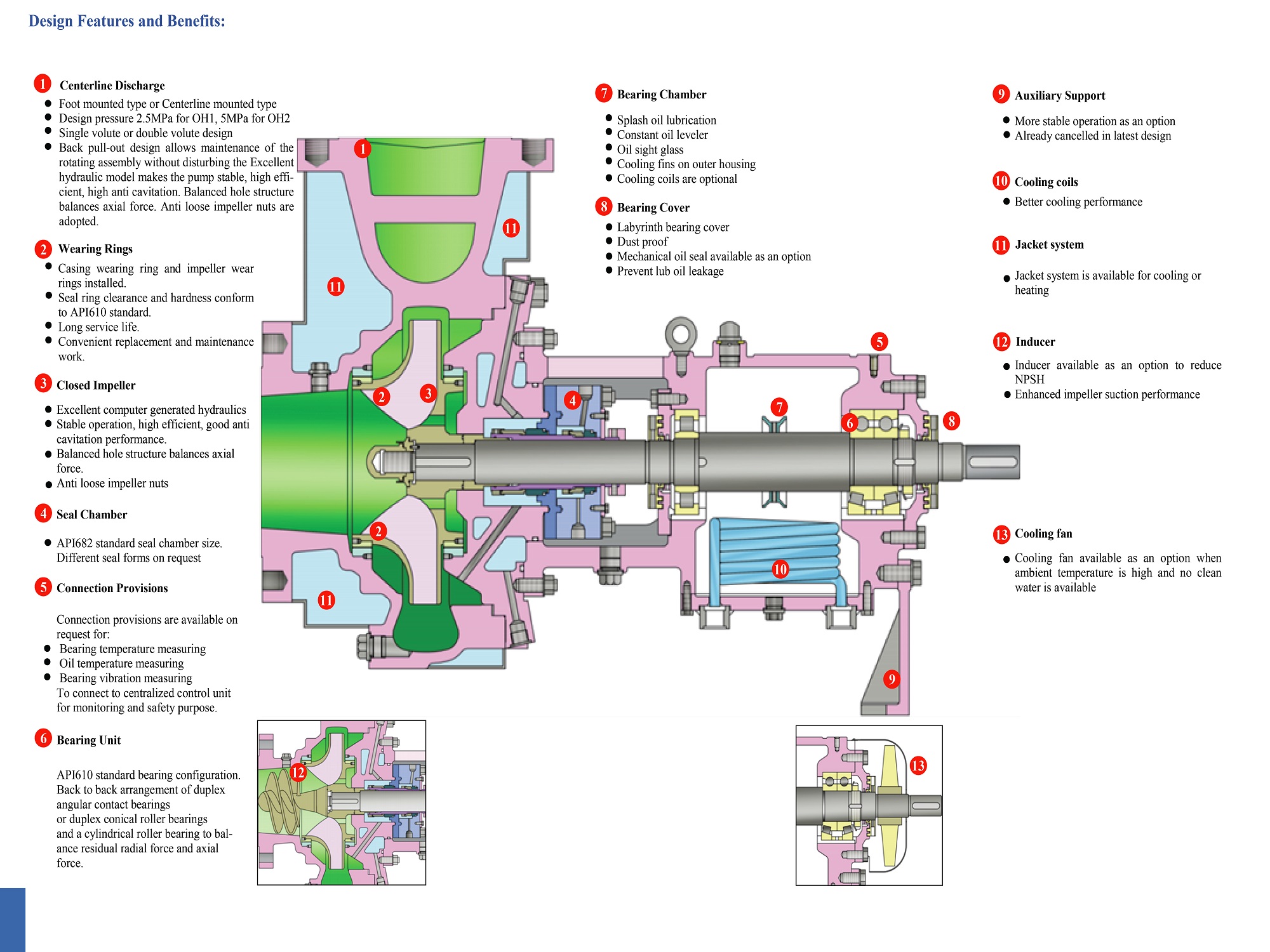

Key Design Features
- Back pull-out design for easy maintenance
- Balanced hole structure to balance axial force
- Anti-loose impeller nuts
- Closed impeller with computer-generated hydraulics
- Centerline discharge
Standards & Compliance
- Compliance Standards
- API 610 11th EditionAPI 682 (Seal Chamber)API Q1 Registered
Monitoring & Safety
Monitoring Provisions
- Bearing temperature measuring
- Oil temperature measuring
- Bearing vibration measuring
- Centralized control unit connectivity
Bearing & Lubrication
Bearing & Lubrication System
- Back-to-back duplex angular contact bearings
- Cylindrical roller bearings for radial force
- Splash oil lubrication
- Constant oil leveler and sight glass
- Labyrinth bearing cover (dust-proof)
Optional Configurations
Optional Features
Cooling CoilsJacket System (Heating/Cooling)Inducer (Reduced NPSH)Cooling FanMechanical Oil Seal
