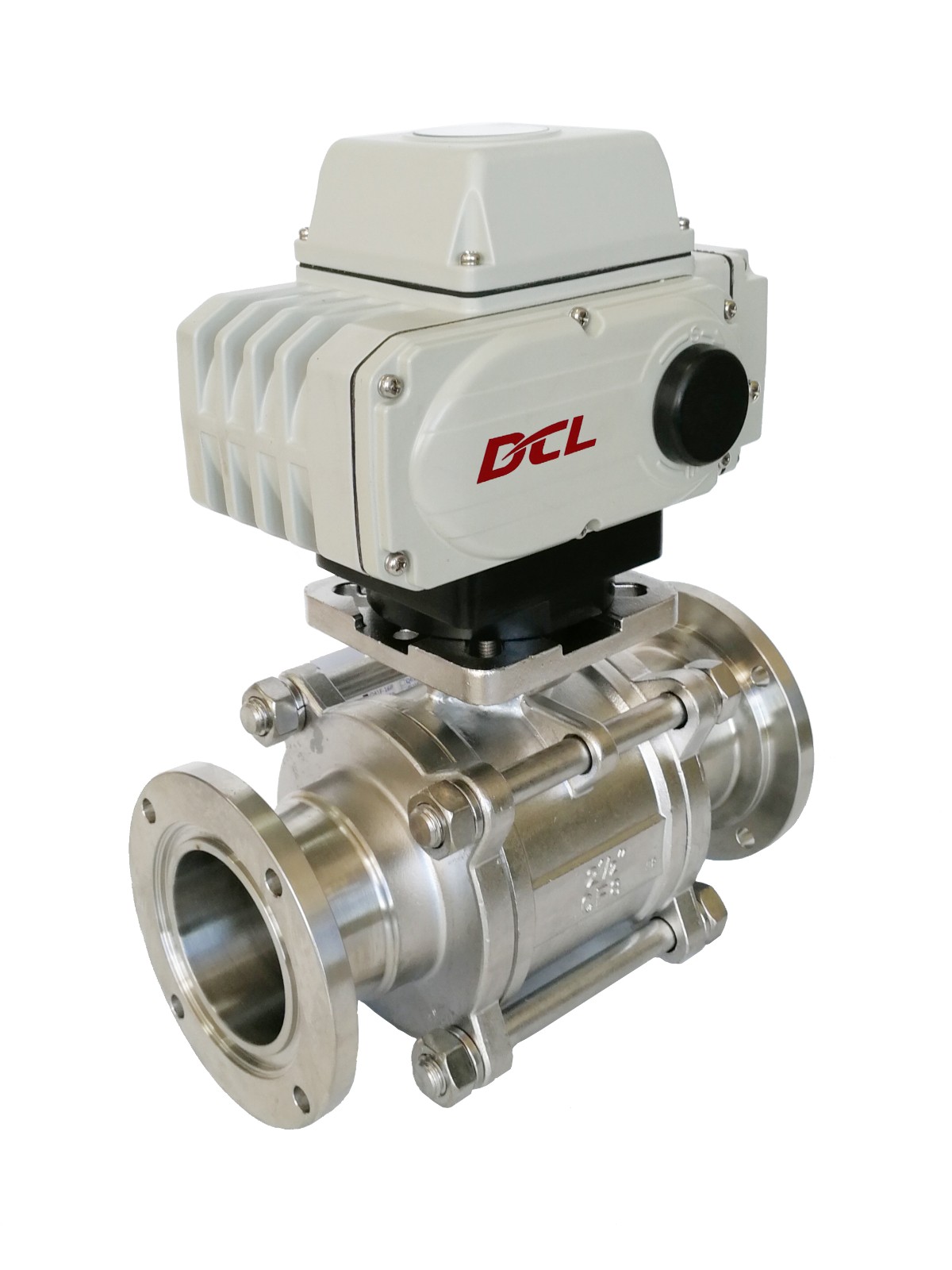

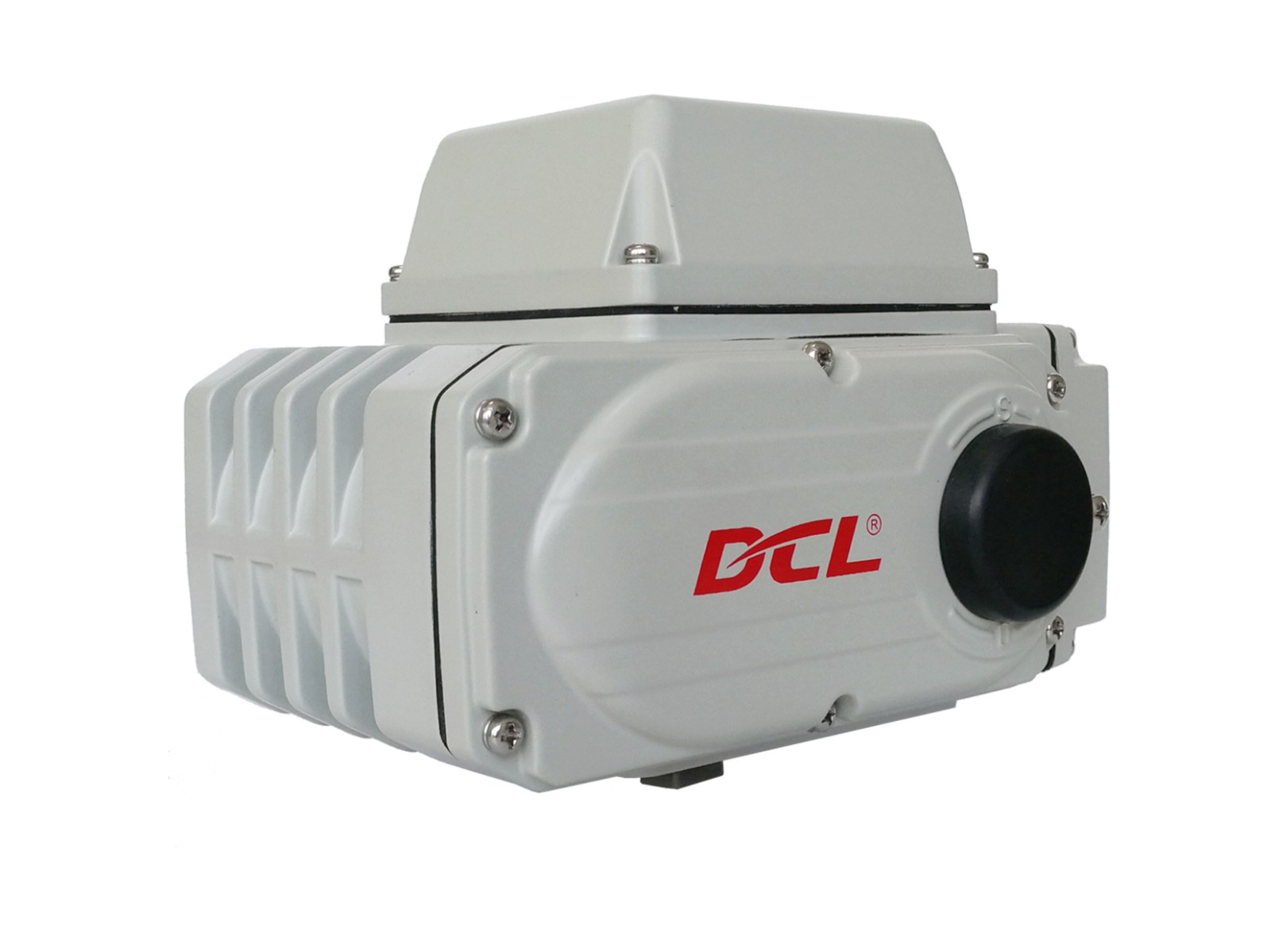

Anti-Condensation Quarter-Turn Electric Actuator
This quarter-turn electric actuator features an anti-condensation mechanism with a dehumidify heater. The actuator incorporates a one-way breather to maintain optimal internal pressure.
Technical Specifications
Product Overview
Anti-Condensation Electric Actuator
This quarter-turn electric actuator is engineered specifically for high-humidity and high-temperature environments. It features an integrated PTC electronic heating component and a patented one-way breathing apparatus to effectively prevent internal condensation and moisture damage. Designed for reliability, the unit includes an insulating class F induction motor with overheating protection and a rugged Type 4X passivation aluminum alloy enclosure.
Technical Specifications
- Motor Insulation Class
- Class F
- Enclosure Type
- Type 4X
- Mounting Standard
- ISO 5211 Multi-flange
- Gear Train
- Self-locking worm gear
Features
Core Capabilities
- Quarter-turn operation
- PTC electronic heating component for condensation prevention
- One-way breathing apparatus
- De-clutchable manual override
- Overheating protection
Compliance
- Certifications & Standards
- CSA ListedCE MarkRoHS
