Angle Notching Machine
The angle notching machine is a metalworking tool used for creating notches in metal profiles, including angles, channels, and flat bars. It features a heavy-duty steel frame and a hydraulic system for powerful cutting force and efficient processing of thick materials.
Technical Specifications
Product Overview
High-Performance Angle Notching Solution

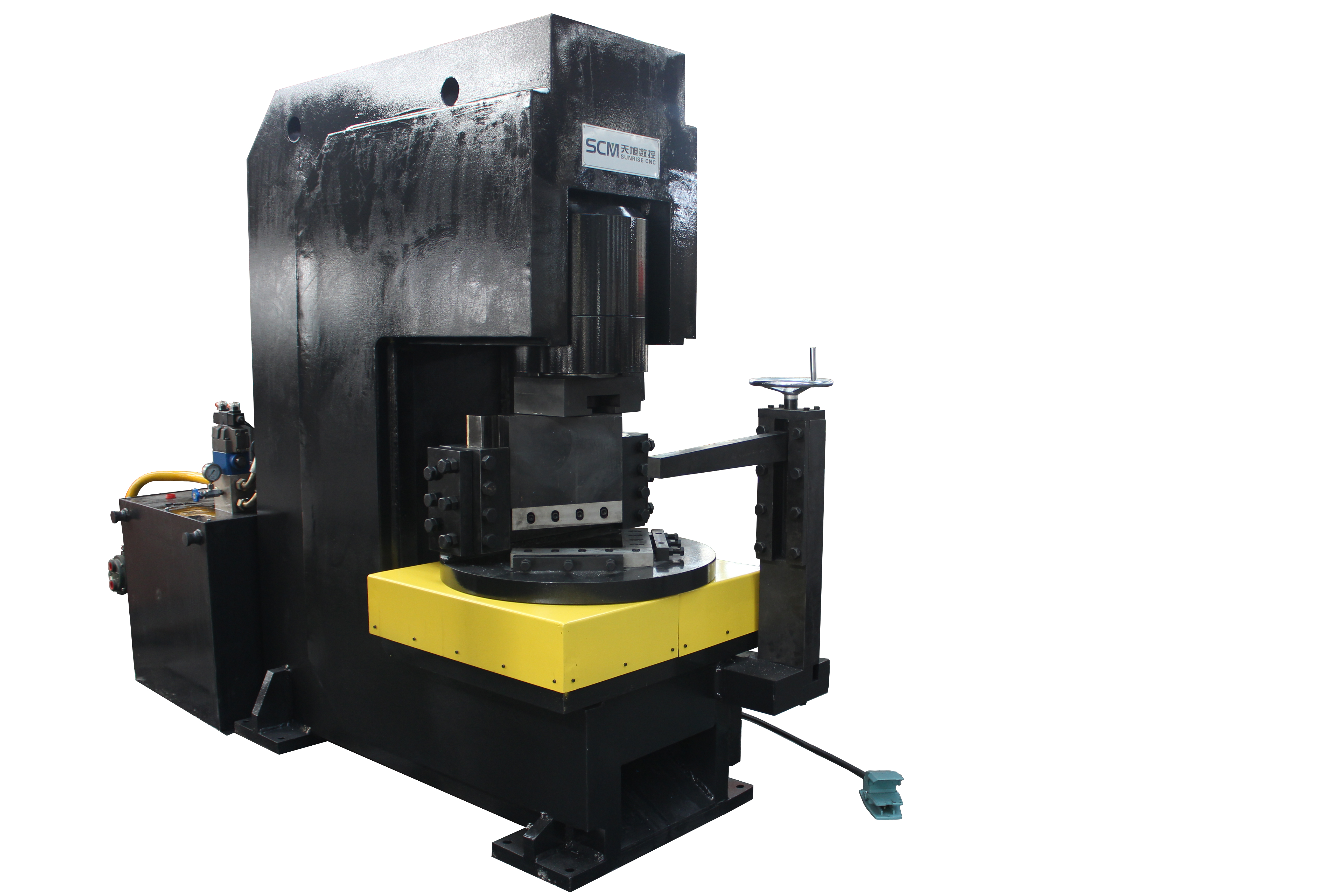

The TQJ200 Angle Notching Machine is a robust hydraulic solution specifically engineered for the steel tower industry. It offers a 360-degree rotary mould and an adjustable cutting range from 0 to 45 degrees, providing exceptional versatility for complex metal fabrication tasks. With a substantial nominal pressure of 1400kN and a high-power motor, it ensures consistent, efficient performance when processing heavy-duty angle steel.
Performance Metrics
Key Operational Metrics
1,400 kN
Nominal Pressure
18.5 kW
Motor Power
20 min-1
Stroke Frequency
22 Mpa
Hydraulic System Pressure
Technical Specifications
Capacity Details
| Feature | Specification |
|---|---|
| Max Angle Size (Q235-A) | 200x200x20 mm |
| Max Angle Size (Q420-A) | 200x200x18 mm |
| Cutting Length | 300 mm |
| Throat Depth | 325 mm |
- Cutting Versatility
- 360° Rotary Mould0°- 45° Cutting Angle
Physical Dimensions
Size and Weight
- Dimensions: 2635 x 1200 x 2300 mm
- Weight: 6500 KG
