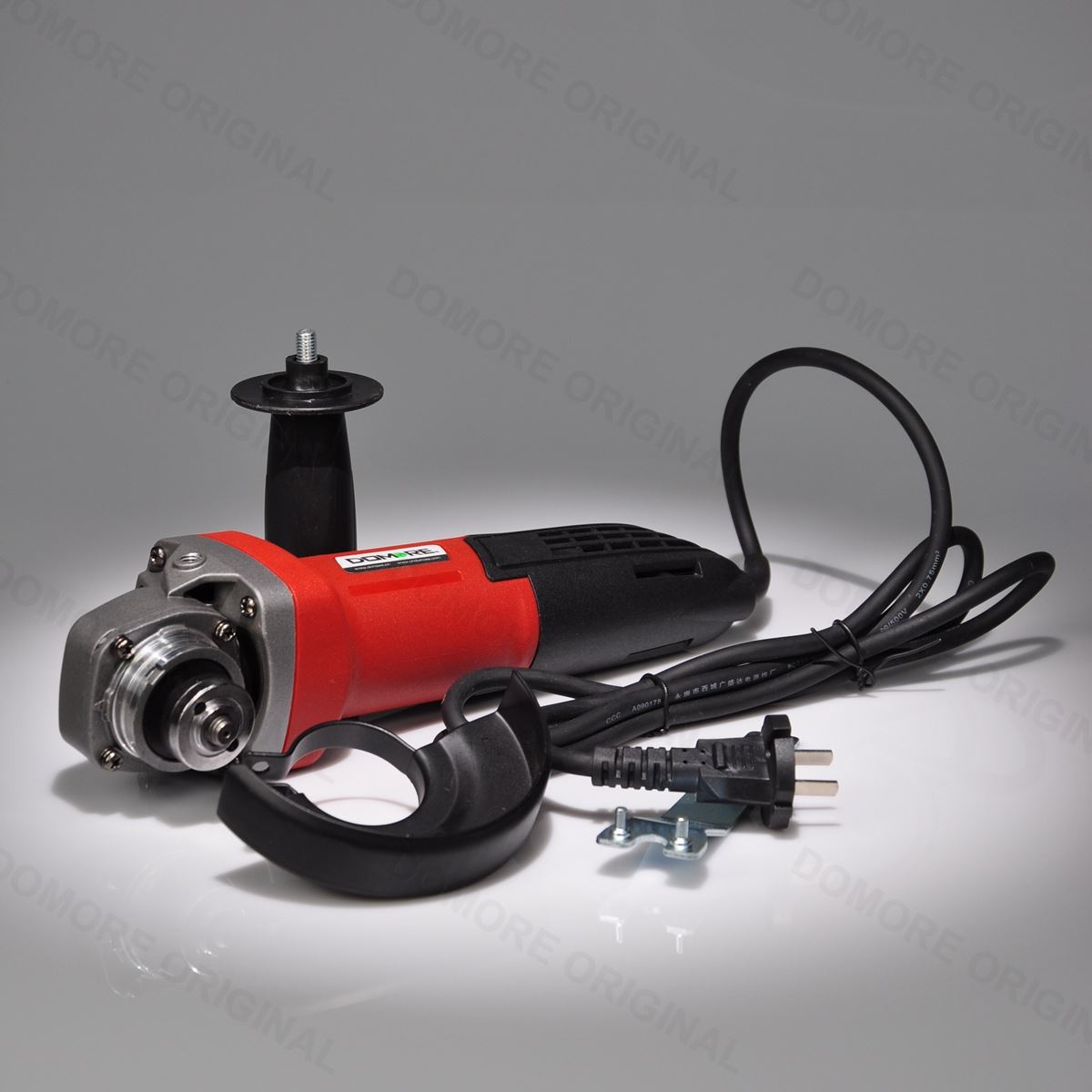

Angle Grinder Power Tool
This angle grinder is a versatile power tool used for grinding, cutting, and polishing various materials. The model features a durable motor, adjustable guard, and ergonomic design for comfortable operation.
Technical Specifications
Overview
Professional Angle Grinder Series
This versatile series of angle grinders is engineered for heavy-duty grinding, cutting, and polishing tasks across metalworking and construction environments. Designed with ergonomic handling and safety features like adjustable guards and spindle locks, these tools ensure precise control and reduced user fatigue. With a wide range of power inputs and wheel sizes available, this lineup provides a tailored solution for various industrial and DIY applications.
Performance Metrics
Performance Overview
2,600 W
Max Power Input
13,000 r/min
Max Speed
230 mm
Max Wheel Diameter
Technical Specifications
Model Specifications
| Model | Wheel Diameter (mm) | Max Speed (r/min) | Power Range (W) |
|---|---|---|---|
| DM20-100 | 100 | 13,000 | 570 - 1200 |
| DM20-125 | 125 | 11,800 | 850 - 1200 |
| DM20-150 | 150 | 9,000 | 900 - 1400 |
| DM20-180 | 180 | 8,300 | 2000 - 2600 |
| DM20-230 | 230 | 6,600 | 2000 - 2600 |
Supported Wheel Hole Diameters
- 16
- 22
- Standard Voltage
- 220V / 50Hz
Features
- Key Features
- Adjustable GuardSpindle LockAuxiliary HandleErgonomic Design
