Angle-Adjustable Construction Hoist

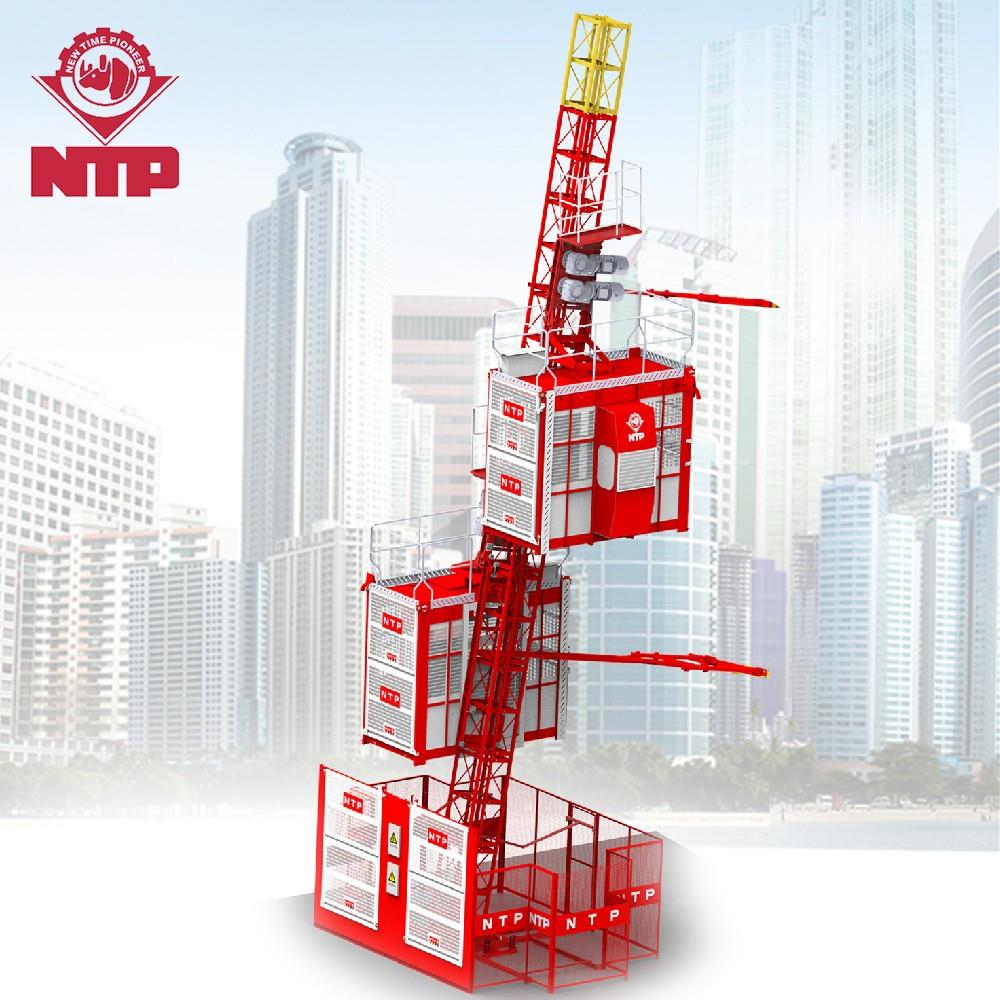

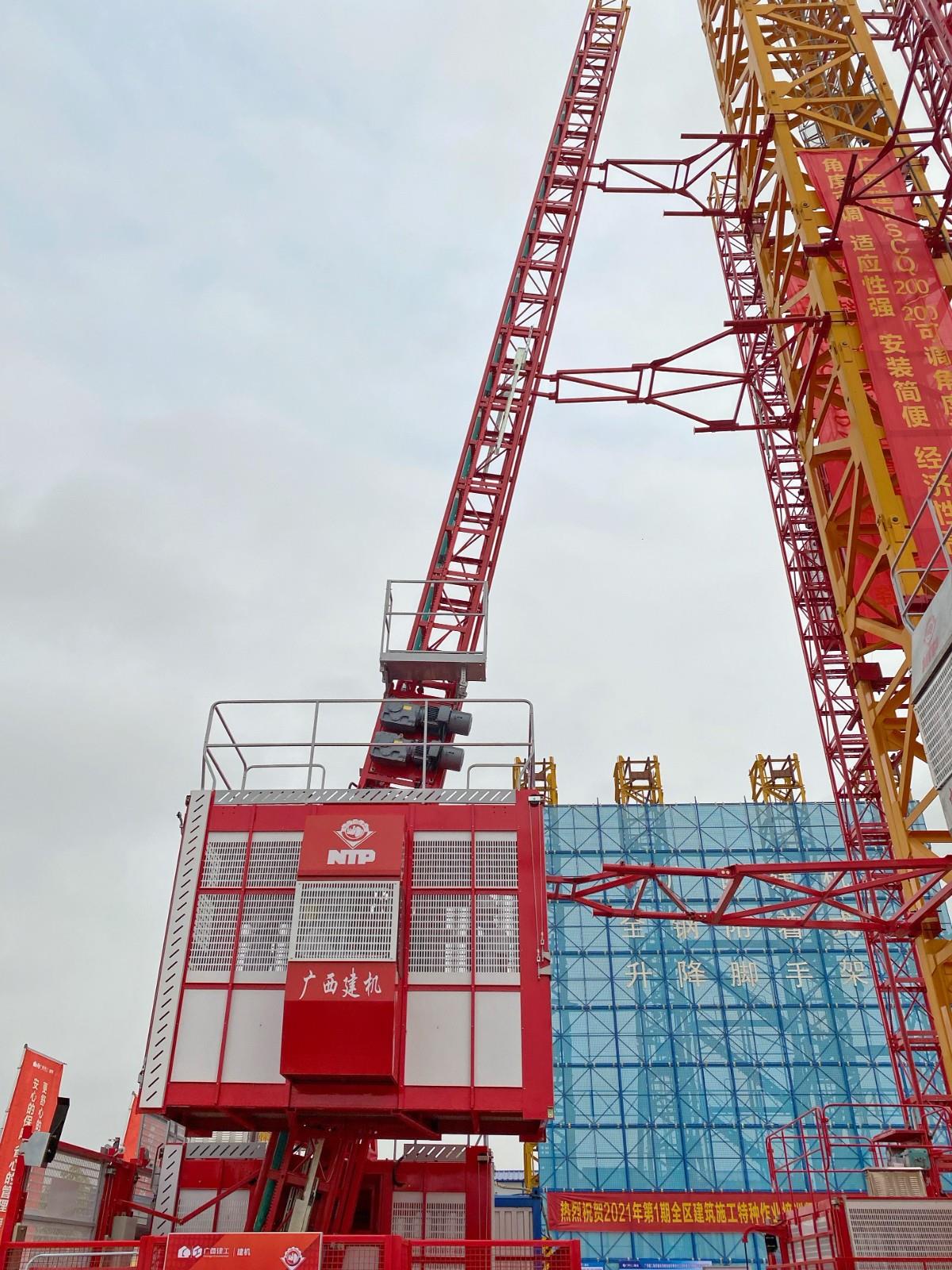

This angle-adjustable construction hoist provides a versatile vertical transportation solution. Its design allows for adaptability to different site conditions and building heights.
Technical Specifications
Overview
Versatile Vertical Transportation for Sloped Construction

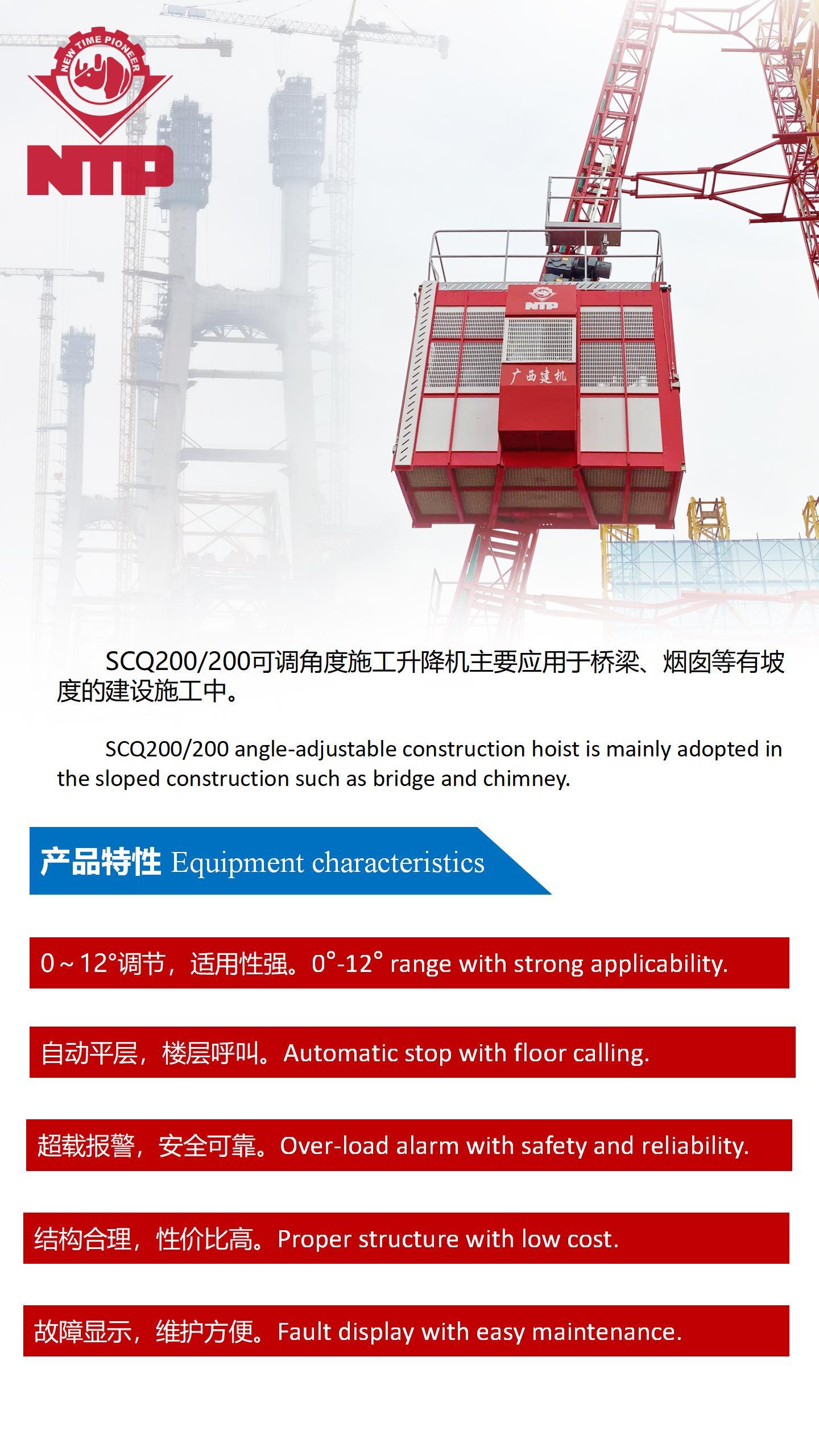

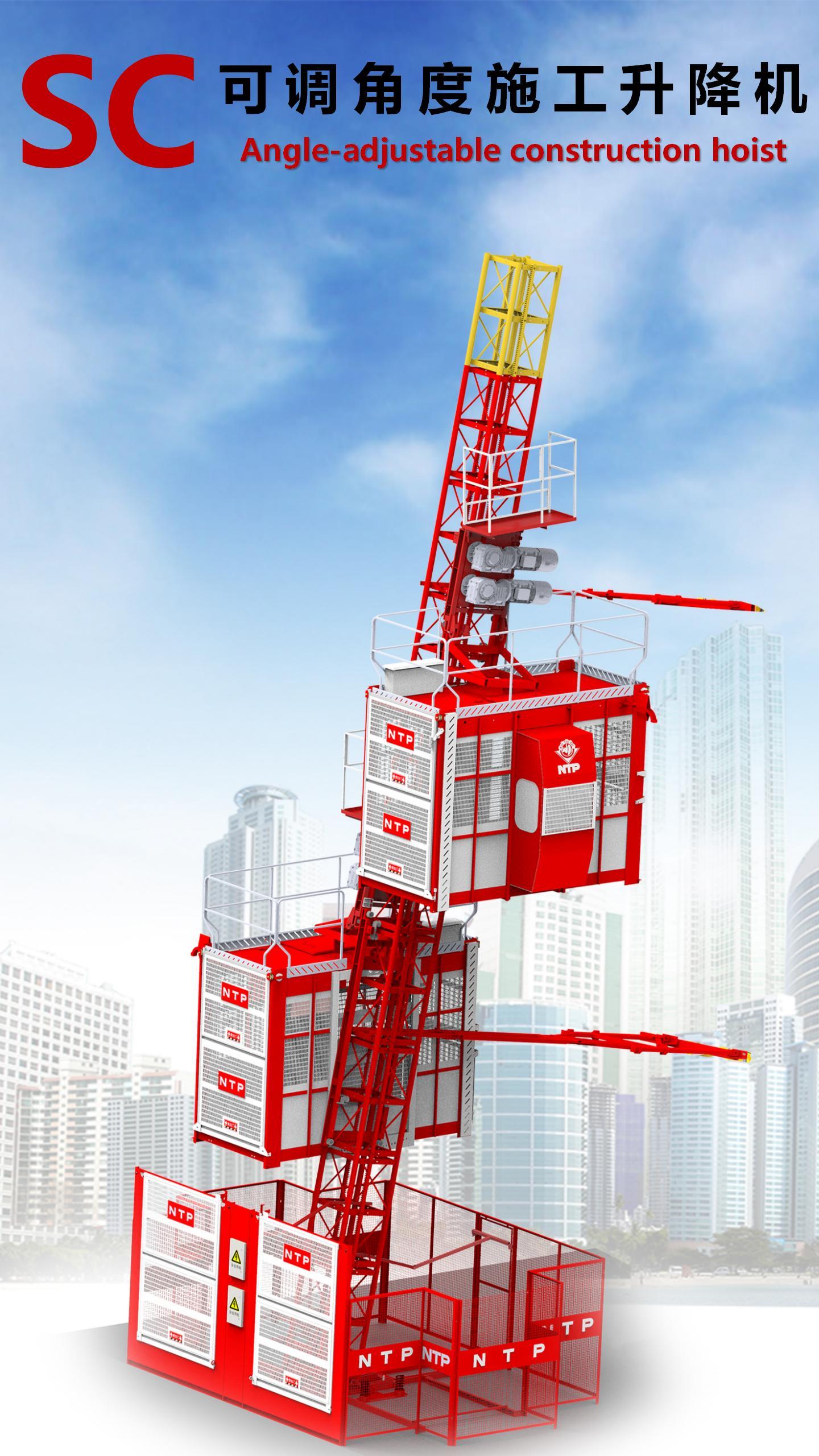

The Angle-Adjustable Construction Hoist is a specialized solution designed for complex construction environments such as bridges, chimneys, and high-rise buildings. Featuring a unique adjustable angle range from 0° to 12°, it provides high adaptability to various building geometries. This dual-cage system ensures efficient, safe, and intelligent transport of both personnel and materials with advanced features like automatic leveling and overload protection.
Key Performance Metrics
Performance Highlights
2,000 kg
Rated Load per Cage
12 °
Maximum Incline
46 m/min
Max Running Speed
293 m
Max Lifting Height
Technical Specifications
Model Specifications Comparison
| Model | Rated Load (kg) | Motor Power (kW) | Running Speed (m/min) | Lifting Height 0°/12° (m) |
|---|---|---|---|---|
| SCQ200/200Ⅱ type C | 2000 × 2 | 11 × 3 | 0 ~ 36 | 293 / 286 |
| SCQ200/200Ⅲ type | 2000 × 2 | 11/19 × 2 | 0 ~ 46 | 293 / 286 |
Intelligent Features
Smart Control & Safety
- Intelligent control with stepless speed regulation
- Automatic leveling and floor calling system
- AI recognition and stable positioning
- Overload protection with alarm system
- Zero speed braking for enhanced safety
- Fault display for simplified maintenance
Design & Construction
- Structural Design
- Robust Steel FrameDual-Cage SystemAngle-Adjustable DesignSecure Cage EnclosuresHigh-Performance Electric Motor
Applications
Ideal Applications
Bridge ConstructionChimney ConstructionHigh-Rise BuildingsInfrastructure DevelopmentRenovation Projects
