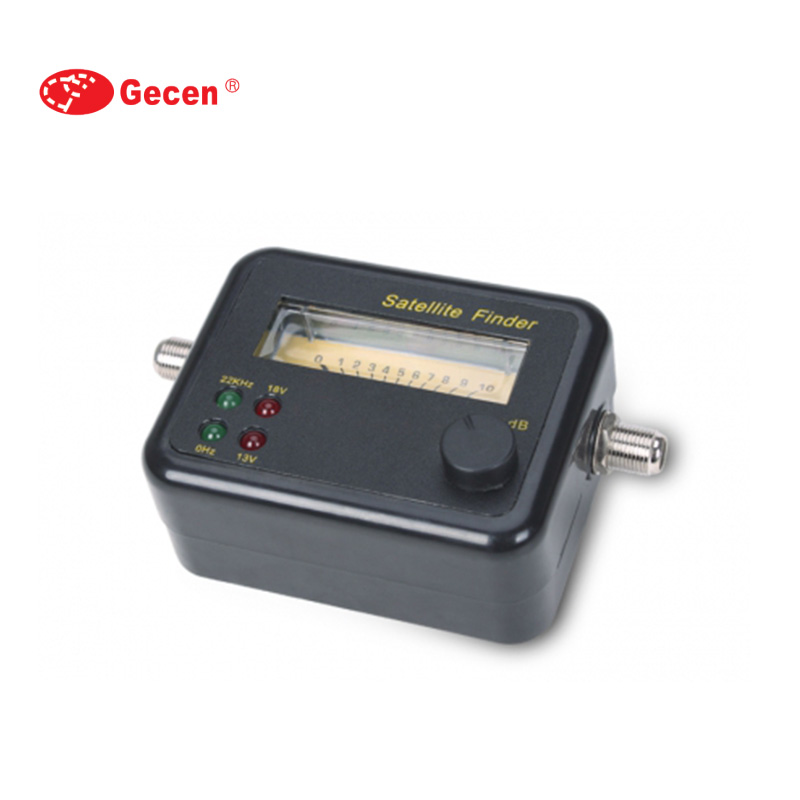

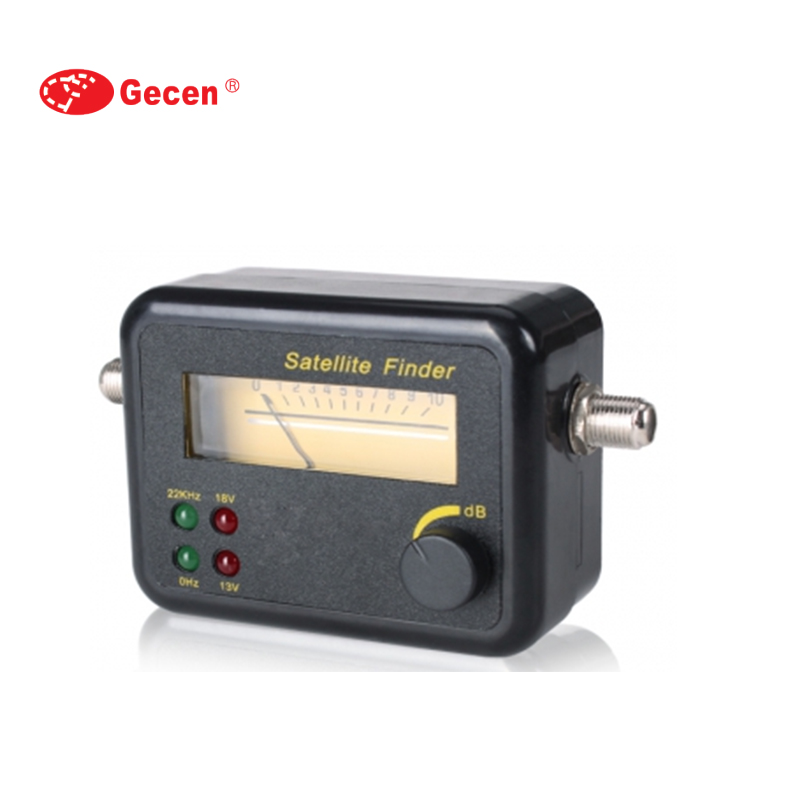

Analog Satellite Signal Finder Meter
This analog satellite finder meter is designed to assist in aligning satellite dishes for optimal signal reception. It features an analog display for signal strength indication, allowing for precise adjustments.
Technical Specifications
Overview
Precision Satellite Alignment Tool
This analog satellite signal finder meter is an essential tool for technicians and installers aiming to achieve optimal satellite dish positioning. Designed for in-line use, it provides real-time signal strength feedback through an intuitive analog display and audible tone, ensuring precise adjustments. It supports standard frequency ranges and provides necessary power pass-through to the LNB, making it a reliable and user-friendly solution for satellite installation and maintenance tasks.
Technical Specifications
- Input Frequency Range
- 950 MHz - 2150MHz
- Supply Voltage
- 13-18V DC
- Maximum Input Level
- -10 dBm
- Minimum Input Level
- -40 dBm

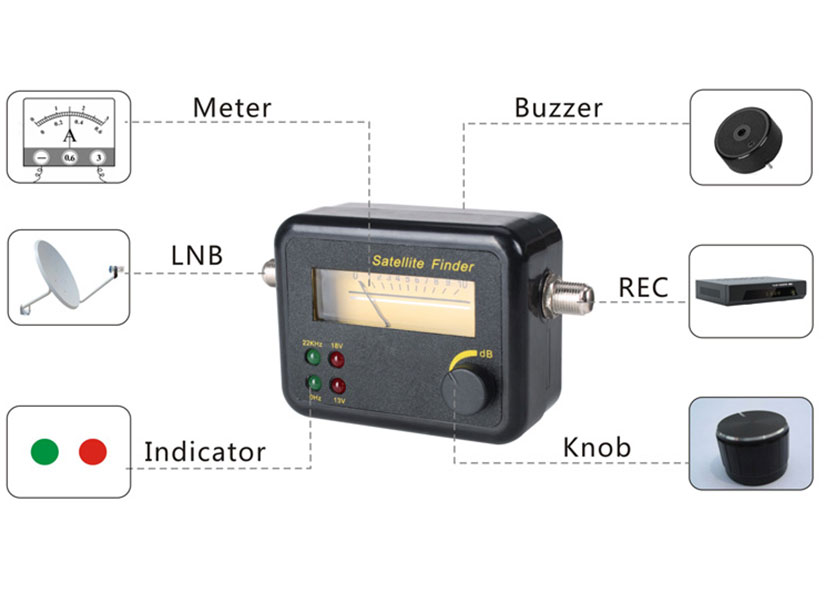

Features
Signal Feedback
- Analog meter display
- Audible buzzer tone
- Sensitivity adjustment knob
- Indicator LEDs
- 0Hz22KHz13V18V
- DC Pass
- Yes
Compliance
Certifications
CERoHSREACH
