American Standard Alloy Steel D Shackle
This D shackle is made from high-strength alloy steel, ensuring strength and resistance to deformation under heavy loads. It is suitable for rigging, lifting, and towing applications, and finished with a galvanized coating for corrosion protection.
Technical Specifications
Product Overview
High-Strength D Shackle

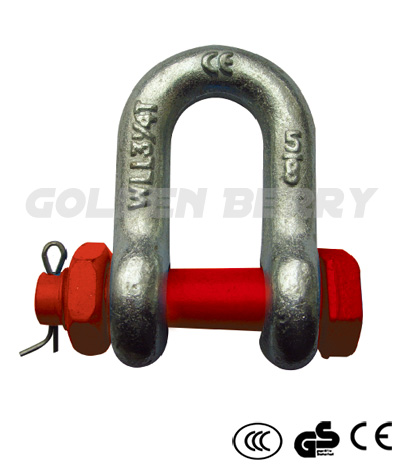

This American Standard D Shackle (G2150) is a robust lifting component engineered for heavy-duty industrial applications. Constructed from high-strength alloy steel, this shackle offers exceptional durability and resistance to deformation under load. It features a screw pin closure for secure and easy attachment, finished with a galvanized coating to protect against corrosion and extend its service life in demanding rigging, lifting, and towing environments.
Compliance & Standards
CECCCGSISO 9001OHSAS 18001ISO 14001
Technical Specifications
Dimensions & WLL Table
| Size (in) | W.L.L (t) | Weight (lbs) |
|---|---|---|
| 1/4 | 1/2 | 0.13 |
| 5/16 | 3/4 | 0.23 |
| 3/8 | 1 | 0.33 |
| 7/16 | 1-1/2 | 0.49 |
| 1/2 | 2 | 0.75 |
| 5/8 | 3-1/4 | 1.47 |
| 3/4 | 4-3/4 | 2.52 |
| 7/8 | 6-1/2 | 3.85 |
| 1 | 8-1/2 | 5.55 |
| 1-1/8 | 9-1/2 | 7.60 |
| 1-1/4 | 12 | 10.81 |
| 1-3/8 | 13-1/2 | 13.75 |
| 1-1/2 | 17 | 18.50 |
| 1-3/4 | 25 | 31.40 |
| 2 | 35 | 46.75 |
| 2-1/2 | 55 | 85.00 |
- Material
- Alloy Steel
- Shackle Type
- D Shackle (G2150)
