Technical Specifications
Overview

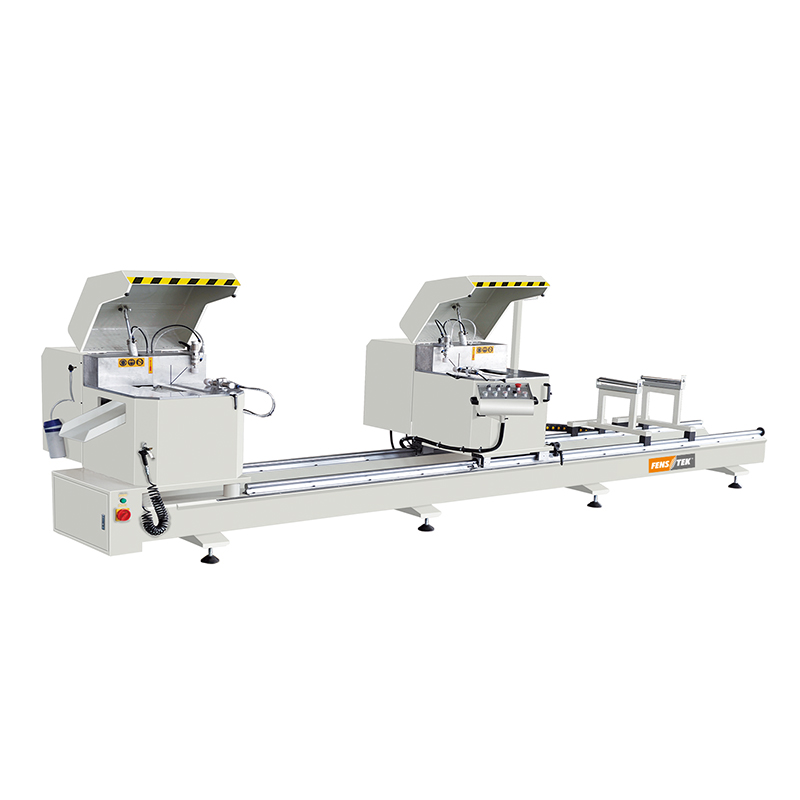

High-Performance Double Head Cutting Saw
This double head cutting saw is engineered specifically for the precise and efficient cutting of aluminum profiles in industrial fabrication settings. Designed for high-volume production, it features robust pneumatic systems and high-quality components to ensure consistent cutting accuracy and minimal material waste. With adjustable cutting angles and a substantial cutting capacity, this machine offers the versatility and reliability required for demanding manufacturing environments.
Technical Specifications
- Power Supply
- 380V, 50HZ
- Cutting Motor Power
- 5.9 kw
- Rotary Speed
- 2800 r/min
Performance Metrics
- Dimensional Accuracy
- ±0.1mm
- Angle Accuracy
- ±0.5 degree
- Available Cutting Angles
- 45°90°
Capacity & Dimensions
- Max Cutting Section
- 135 x 200 mm
- Cutting Length Range
- 400mm - 4500mm
- Machine Dimensions
- 5750 x 1300 x 1500 mm
- Weight
- 2500 kg

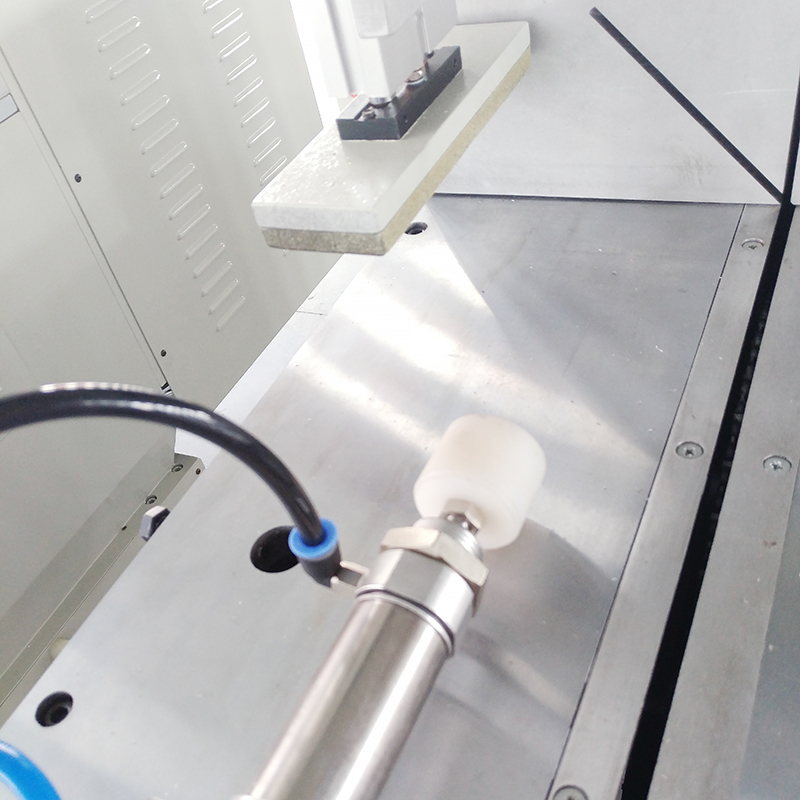

Pneumatic System
- Operation Air Pressure
- 0.6-0.8 MPa
- Air Consumption
- 60 L/min
Components
Standard Accessories
- Saw blade (2pcs)
- Mobile work piece supports (2 sets)
- Air Gun
- Complete tooling set
- Certificate
- Operation Manual
