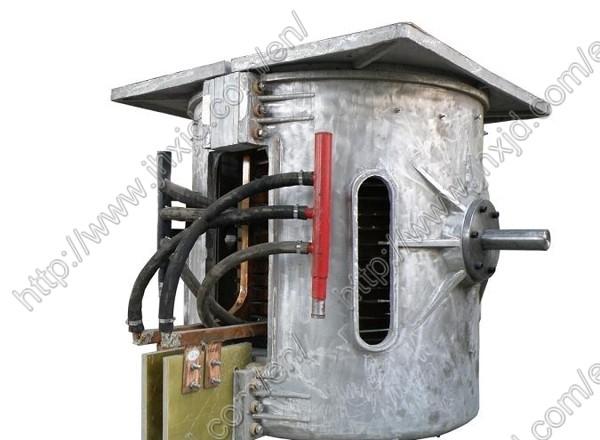

Aluminum Melting Electric Furnace with Tilting Mechanism
This electric furnace is engineered for melting aluminum and its alloys. It features a tilting mechanism to facilitate the pouring of molten metal.
Technical Specifications
Overview
High-Efficiency Induction Melting
This medium-frequency induction furnace is engineered for the high-efficiency melting of steel, iron, copper, aluminum, and various alloys. It features a robust tilting mechanism for precise pouring and is designed to provide excellent energy savings, uniform metal composition, and minimal burning loss. With advanced protection systems and rapid temperature rise capabilities, it offers reliable performance for demanding industrial casting processes.
Key Advantages
Operational Benefits
- Constant power output for speedy melting
- High energy-saving efficiency
- Zero-voltage sweep-frequency start for frequent operation
- Comprehensive safety protection (overcurrent, overvoltage, water-break)
- Easy operation suitable for all casting processes
Technical Specifications
Model Performance Data
| Capacity (t) | Power (kW) | Melt Rate (t/h) | Water Cons. (t/h) |
|---|---|---|---|
| 0.15 | 100 | 0.17 | 3 |
| 0.3 | 160 | 0.27 | 5 |
| 0.5 | 250 | 0.42 | 8 |
| 0.75 | 350 | 0.59 | 10 |
| 1 | 500 | 0.93 | 15 |
| 1.5 | 750 | 1.39 | 20 |
Electrical Standards
1,000 Hz
Rated Frequency
380 V
Inlet Wire Voltage
1,500 V
Inductor Voltage
- Operating Temperature
- 780 °C
Logistics
- Packaging
- Plywood casesNude
