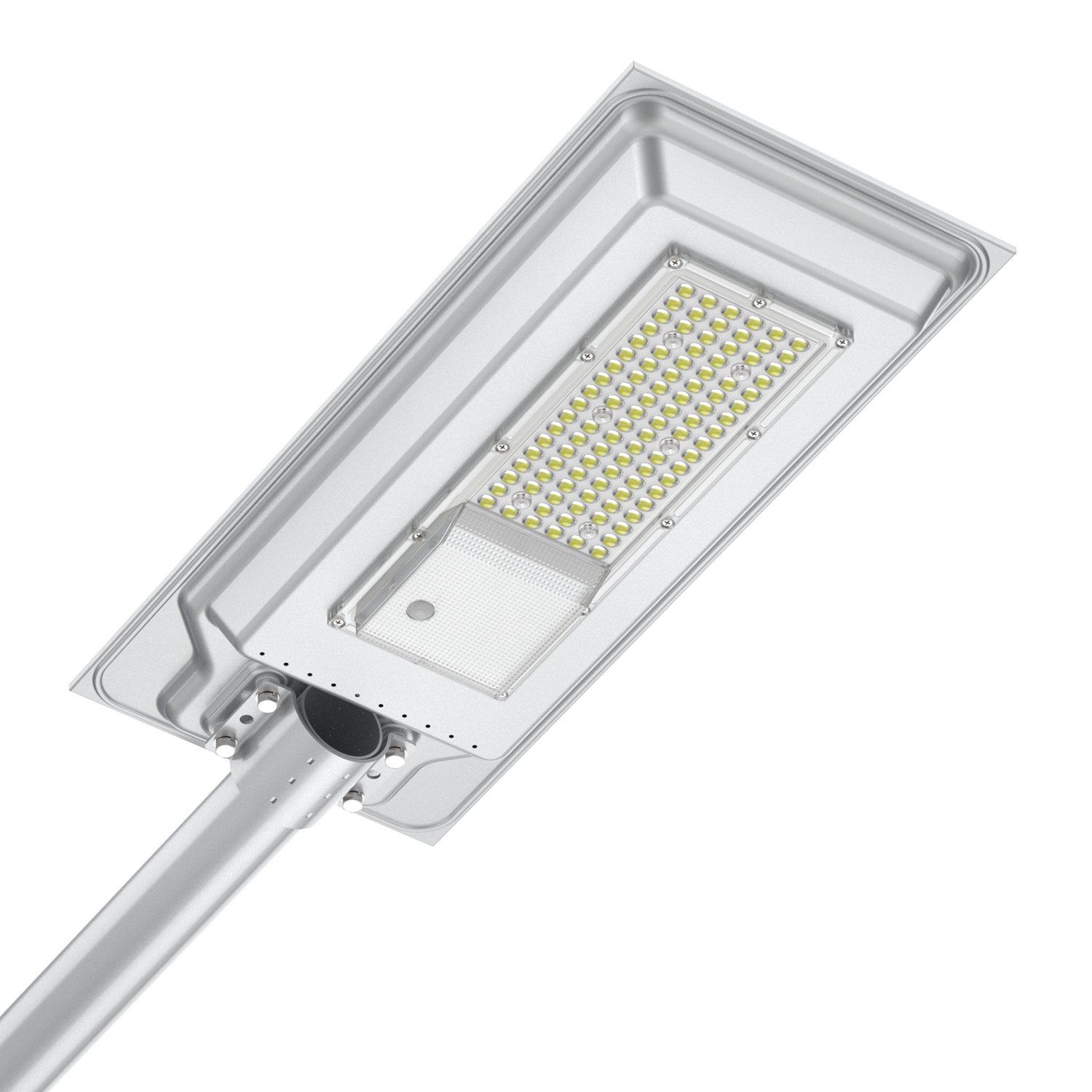

Aluminum IP65 Waterproof LED Solar Street Light
This LED solar street light provides bright and durable illumination with high-quality LED chips. It features flexible installation options for pole or wall mounting and offers wide light distribution.
Technical Specifications
Overview
High-Efficiency All-in-One Solar Lighting
This Aluminum IP65 Waterproof LED Solar Street Light is a professional-grade outdoor lighting solution featuring an integrated design for easy installation and maintenance. It combines high-quality LED chips with a luminous efficiency exceeding 150LM/W and an adjustable solar panel to maximize energy utilization. Built with a durable aluminum housing and professional waterproof structure, it is designed to withstand harsh environments while providing wide-angle illumination.
Key Features
- Performance Highlights
- IP66 Waterproof150LM/W EfficiencyMicrowave InductionWiring-FreeBatwing Light Distribution
Technical Specifications
Core Performance Metrics

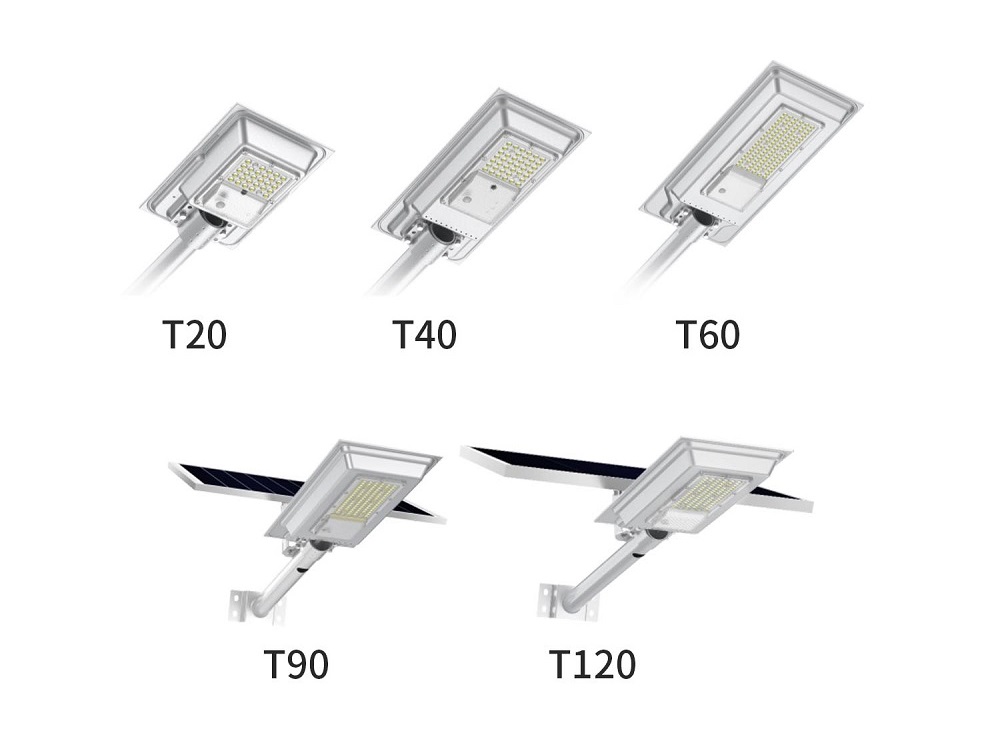

Model Specifications
| Model | Dimensions | Solar Panel | Battery | Luminous Flux |
|---|---|---|---|---|
| SL-CLX-0020-E01S | 276*183*60mm | 6W / 4.5V | 3.2V / 16WH | 480LM |
| SL-CLX-0040-E01S | 393*183*60mm | 10W / 4.5V | 3.2V / 32WH | 950LM |
| SL-CLX-0060-E01S | 511*221*60mm | 15W / 4.5V | 3.2V / 48WH | 1300LM |
Battery & Solar
- Battery Technology
- A1 grade Lithium Iron Phosphate (LiFePO4)
- Solar Panel Material
- High-quality Polysilicon
- Solar Panel Service Life
- 25 years
Construction & Installation
Waterproof Rating

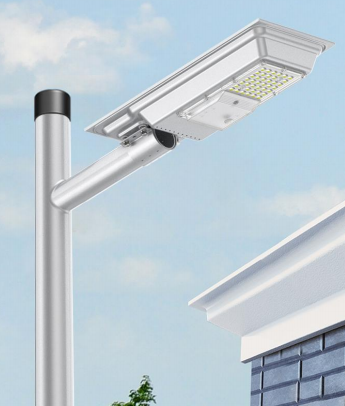

Installation Methods
- Pole mount
- Wall mount
- Wiring-free installation
- Housing Material
- Aluminum
Lighting Control
Smart Energy Management
Features a 12-hour cycle lumen output with time-period dimming. Includes microwave motion induction that adjusts brightness based on activity: 100% brightness for initial phase, transitioning to 60-40% during mid-night, and maintaining a 7% standby level to conserve energy.
- Sensor Technology
- Microwave Induction
