High-Performance Aluminum Cable Lugs
These AU series aluminum lugs are engineered for secure terminations of aluminum and aluminum alloy conductors in medium voltage electrical equipment. Manufactured from high-purity aluminum (Al ≥ 99.5%), they feature a tin-plated surface to ensure superior conductivity and long-term corrosion resistance. The design includes an oil-blocking structure and comes prefilled with jointing compound to maintain connection integrity in demanding industrial environments.
Technical Standards
- Compliance & Standards
- DIN 46329Germany NormMedium Voltage
Material & Build
Material Composition
99.5 %
Aluminum Purity
- Surface Finish
- Tin plated
Installation Features
Key Features
- Oil blocking structure for enhanced reliability
- Clear barrel markings for precise crimping location
- Compatible with DIN standard crimping dies
- Prefilled with jointing compound
Compatible Crimping Dies
DL12DL14DL16DL18DL22DL25DL28DL32
Product Range

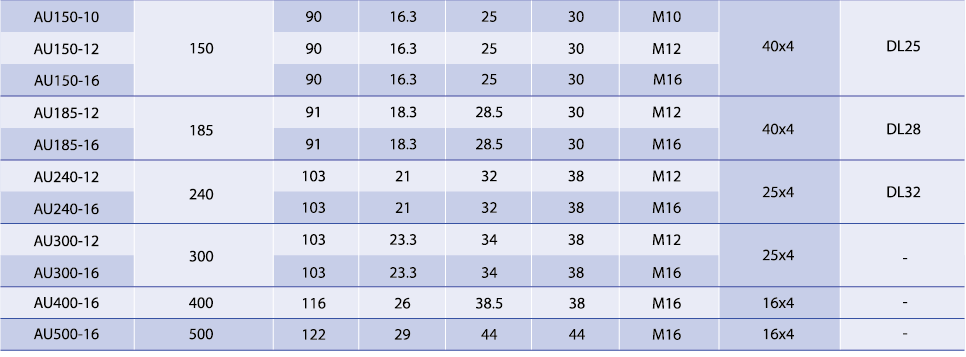

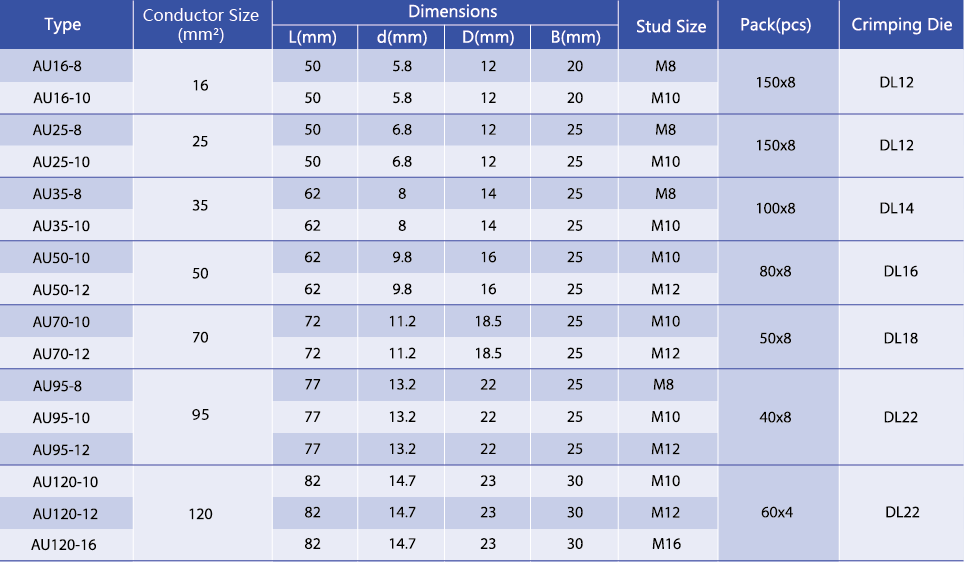

Detailed Dimensions & Sizing
| Type | Conductor Size (mm²) | Stud Size | L (mm) | Crimping Die |
|---|---|---|---|---|
| AU16-8 | 16 | M8 | 50 | DL12 |
| AU25-10 | 25 | M10 | 50 | DL12 |
| AU35-10 | 35 | M10 | 62 | DL14 |
| AU50-12 | 50 | M12 | 62 | DL16 |
| AU70-12 | 70 | M12 | 72 | DL18 |
| AU95-12 | 95 | M12 | 77 | DL22 |
| AU120-12 | 120 | M12 | 82 | DL22 |
| AU150-12 | 150 | M12 | 90 | DL25 |
| AU185-16 | 185 | M16 | 91 | DL28 |
| AU240-16 | 240 | M16 | 103 | DL32 |
| AU300-16 | 300 | M16 | 103 | DL32 |
| AU400-16 | 400 | M16 | 116 | N/A |
| AU500-16 | 500 | M16 | 122 | N/A |
- Conductor Size Range
- 16mm² to 500mm²
