Aluminum Cable Connector for Medium Voltage Applications
This aluminum connector is used for intermediate connection of aluminum cable and aluminum alloy cable in medium voltage applications. It features clear markings for correct crimping and is prefilled with jointing compound.
Technical Specifications
Product Overview
Medium Voltage Aluminum Connectors
These high-quality aluminum cable connectors are designed for the intermediate connection of aluminum and aluminum alloy cables in medium voltage applications. Conforming to DIN 46267 standards, they feature clear barrel markings to ensure precise crimping locations. Each connector is pre-filled with jointing compound to enhance electrical performance and reliability in power transmission and distribution systems.
Technical Specifications
Standard
DIN 46267
- Material Purity
- Aluminum (Al) ≥ 99.5%
- Key Features
- Pre-filled with jointing compoundClear crimping markingsDIN standard compatible
Dimensions and Compatibility

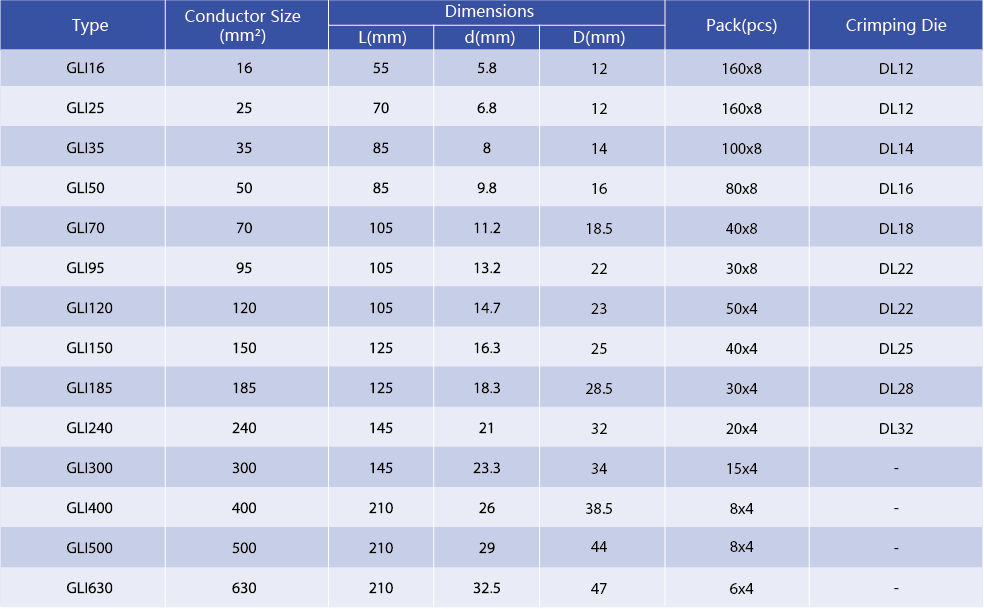

Connector Specifications Table
| Type | Conductor Size (mm²) | Length (mm) | Inner Diameter (mm) | Outer Diameter (mm) |
|---|---|---|---|---|
| GLI16 | 16 | 55 | 5.8 | 12 |
| GL125 | 25 | 70 | 6.8 | 12 |
| GL135 | 35 | 85 | 8 | 14 |
| GL150 | 50 | 85 | 9.8 | 16 |
| GL170 | 70 | 105 | 11.2 | 18.5 |
| GL195 | 95 | 105 | 13.2 | 22 |
| GLI120 | 120 | 105 | 14.7 | 23 |
| GLI150 | 150 | 125 | 16.3 | 25 |
| GLI185 | 185 | 125 | 18.3 | 28.5 |
| GLI240 | 240 | 145 | 21 | 32 |
| GL1300 | 300 | 145 | 23.3 | 34 |
| GL1400 | 400 | 210 | 26 | 38.5 |
| GL1500 | 500 | 210 | 29 | 44 |
| GLI630 | 630 | 210 | 32.5 | 47 |
