Aluminum Cable Connector
This aluminum connector is used for intermediate connection of aluminum or aluminum alloy cable in medium voltage applications. Clear markings on the barrel indicate the correct crimping location when used with a standard crimping die.
Technical Specifications
Product Overview
GLM Aluminum Connector
These aluminum connectors are designed for the intermediate connection of aluminum and aluminum alloy cables in medium voltage applications. Featuring high-purity aluminum construction (≥99.5%), they ensure reliable electrical performance. Each unit is prefilled with jointing compound to enhance conductivity and features clear markings on the barrel for accurate crimping location.
Technical Specifications
Compliance Standard
IEC61238-1:2003
- Material Purity
- Aluminum ≥99.5%
- Key Features
- Prefilled with jointing compoundClear crimping markingsMedium voltage rated

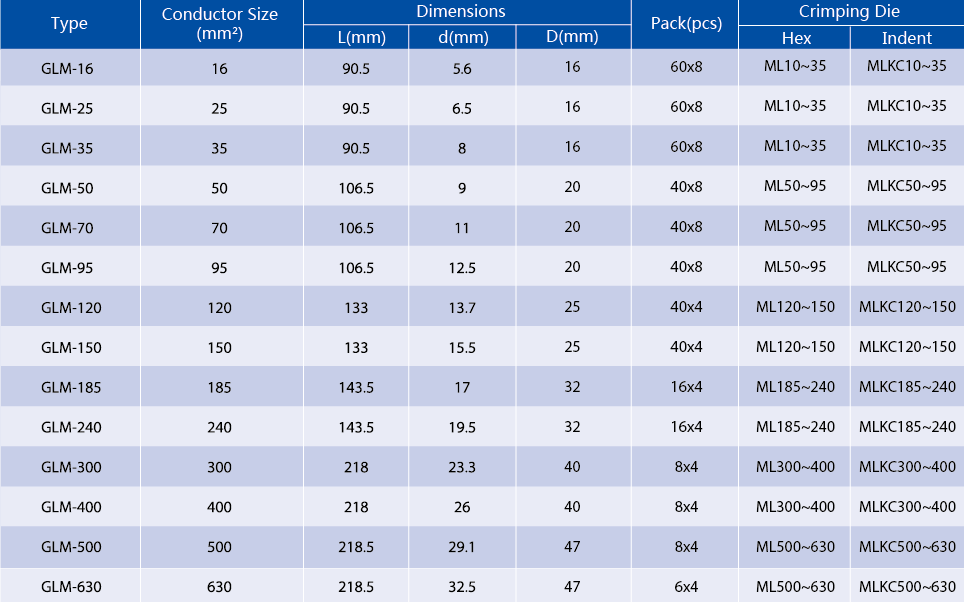

Detailed Dimensions and Compatibility
Connector Specifications
| Type | Conductor Size (mm²) | Length (mm) | Inner Diameter (mm) | Outer Diameter (mm) |
|---|---|---|---|---|
| GLM-16 | 16 | 90.5 | 5.6 | 16 |
| GLM-25 | 25 | 90.5 | 6.5 | 16 |
| GLM-35 | 35 | 90.5 | 8 | 16 |
| GLM-50 | 50 | 106.5 | 9 | 20 |
| GLM-70 | 70 | 106.5 | 11 | 20 |
| GLM-95 | 95 | 106.5 | 12.5 | 20 |
| GLM-120 | 120 | 133 | 13.7 | 25 |
| GLM-150 | 150 | 133 | 15.5 | 25 |
| GLM-185 | 185 | 143.5 | 17 | 32 |
| GLM-240 | 240 | 143.5 | 19.5 | 32 |
| GLM-300 | 300 | 218 | 23.3 | 40 |
| GLM-400 | 400 | 218 | 26 | 40 |
| GLM-500 | 500 | 218.5 | 29.1 | 47 |
| GLM-630 | 630 | 218.5 | 32.5 | 47 |
