Aluminum Alloy Mechanical Connector for Low Voltage Cables
This mechanical connector is designed for intermediate connection of aluminum and aluminum alloy cable in low voltage systems. It features torque-controlled shear head bolts and does not require crimping tools, only a socket spanner or wrench.
Technical Specifications
Product Overview
CLL Mechanical Connector for Low Voltage Applications
The CLL Mechanical Connector is designed for the intermediate connection of aluminum and aluminum alloy cables in low voltage systems. Constructed from high-strength aluminum alloy with a tin-plated surface, it ensures a stable and corrosion-resistant connection. The connector features torque-controlled shear head bolts that eliminate the need for specialized crimping tools while protecting the conductor from damage.
Key Features
- Centre with block design
- No crimping tools required (use socket spanner or wrench)
- Torque controlled shear head bolts for stable performance
- Wide application range for various conductor sizes
- Prefilled with jointing compound for enhanced connectivity
Technical Specifications
Surface Treatment
Tin Plated
- Body Material
- High strength aluminium alloy
- Bolt Material
- Aluminium alloy
- Standard Compliance
- IEC 61238-1: 2003
Model Variants
Technical Data by Model

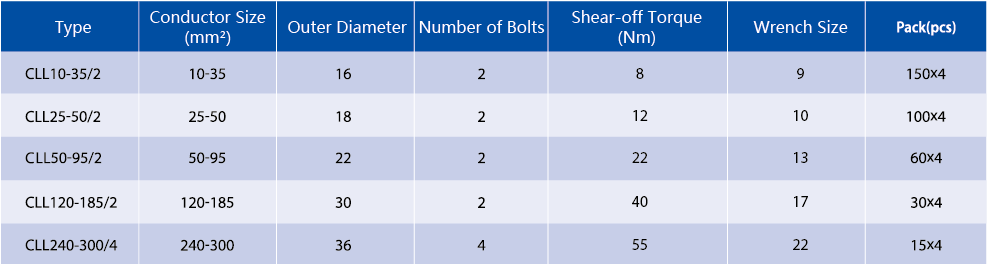

| Type | Conductor Size (mm²) | Outer Diameter (mm) | No. of Bolts | Shear-off Torque (Nm) | Wrench Size |
|---|---|---|---|---|---|
| CLL10-35/2 | 10-35 | 16 | 2 | 8 | 9 |
| CLL25-50/2 | 25-50 | 18 | 2 | 12 | 10 |
| CLL50-95/2 | 50-95 | 22 | 2 | 22 | 13 |
| CLL120-185/2 | 120-185 | 30 | 2 | 40 | 17 |
| CLL240-300/4 | 240-300 | 36 | 4 | 55 | 22 |
Application
- Compatible Cables
- Aluminium CableAluminium Alloy CableLow Voltage
