Aluminum Alloy Cable Extrusion Machine

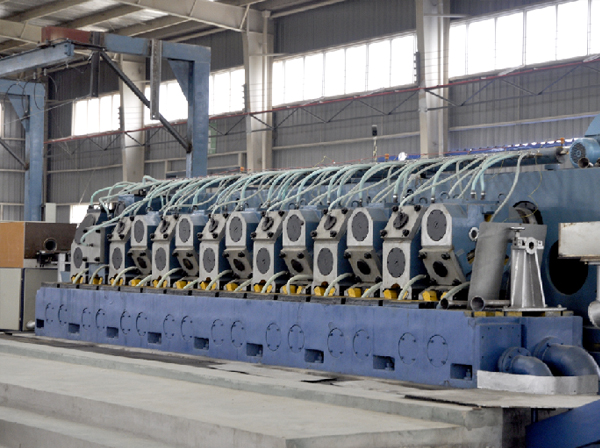

This horizontal continuous extrusion machine is designed for manufacturing aluminum alloy cables. The industrial equipment features multiple extrusion heads and a robust construction suitable for high-volume production.
Technical Specifications
Overview
Comprehensive Aluminum Alloy Cable Production
This industrial-grade aluminum alloy cable manufacturing equipment provides a complete, integrated solution for the entire production lifecycle. From initial rod rolling and wire drawing to precision stranding, annealing, insulation, and final cable forming, this system is engineered for high-volume, consistent output. Designed for durability and precision, it supports advanced interlocking armor processes to ensure superior cable quality and performance.
Production Process
Manufacturing Stages
- Rolling of aluminum alloy rod
- Single wire drawing
- Conductor stranding
- Conductor annealing
- Insulation
- Cable forming
- Interlocking armor application
Key Processing Units
| Stage | Equipment Type |
|---|---|
| Rod Rolling | Continuous casting and rolling unit |
| Wire Drawing | Φ 450 non-sliding drawing machine |
| Stranding | Strand, frame, and tube stranders |
| Annealing | Annealing furnace |
| Insulation | SPV extruder |
| Cable Forming | Winch, bow, and cradle cable forming machines |
| Armor | Interlocking armor machine |
Technical Features
- System Capabilities
- High-volume productionPrecision extrusionIntegrated coolingAdvanced lubricationRobust construction
