Aluminum Alloy Cable Connector for Low Voltage Applications
This mechanical connector is designed for intermediate connection of aluminum and aluminum alloy cable in low voltage applications. It features torque-controlled shear head bolts and does not require crimping tools.
Technical Specifications
Overview

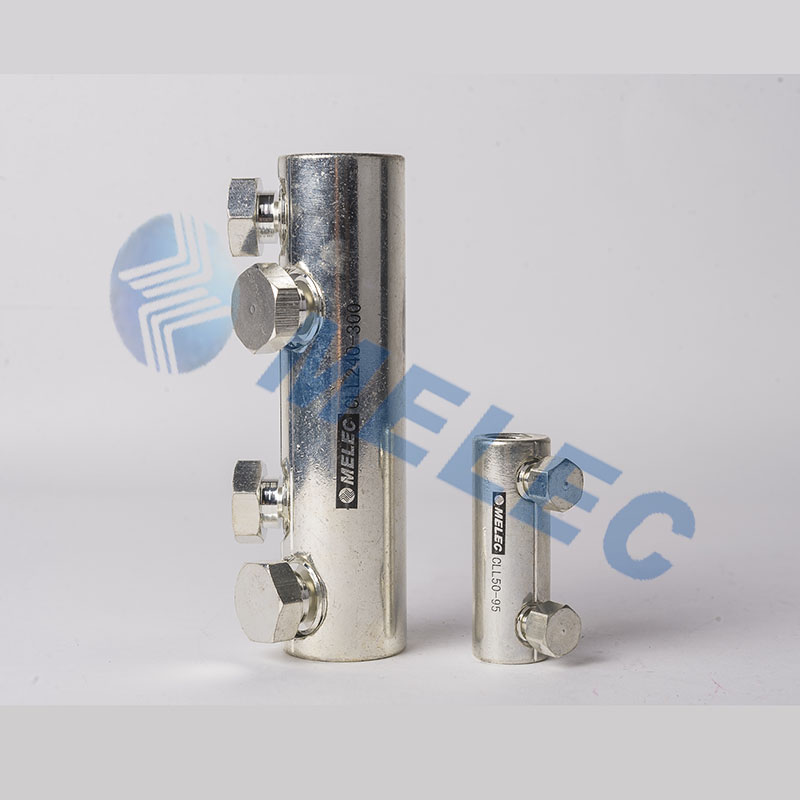

CLL Mechanical Aluminum Connector
The CLL series mechanical aluminum connector is designed for high-performance intermediate connections of aluminum and aluminum alloy cables in low-voltage applications. These connectors utilize torque-controlled shear head bolts to ensure a stable, damage-free connection without the need for specialized crimping tools. Prefilled with jointing compound and featuring a tin-plated surface, they provide excellent conductivity and long-term corrosion resistance for professional electrical installations.
Technical Standards
Compliance Standard
IEC 61238-1: 2003
Material Construction
- Body Material
- High strength aluminium alloy
- Bolt Material
- Aluminium alloy
- Surface Treatment
- Tin plated
Key Features
Product Features
- Centre with block design
- No crimping tools required (only socket spanner or wrench)
- Torque controlled shear head bolts for conductor protection
- Wide application range for various cable sizes
- Prefilled with jointing compound
Technical Specifications
Model Specifications

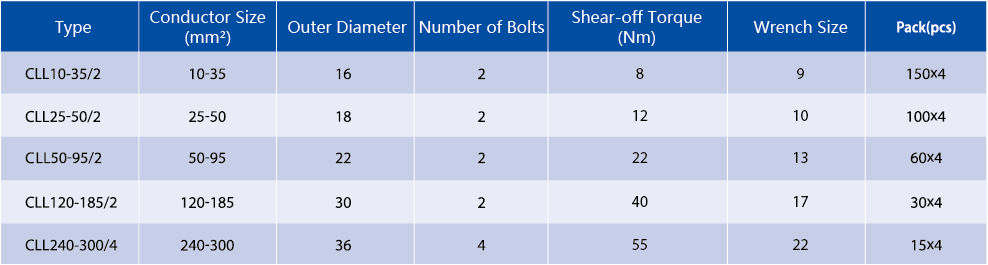

| Type | Conductor Size (mm²) | Outer Diameter (mm) | No. of Bolts | Shear-off Torque (Nm) | Wrench Size |
|---|---|---|---|---|---|
| CLL10-35/2 | 10-35 | 16 | 2 | 8 | 9 |
| CLL25-50/2 | 25-50 | 18 | 2 | 12 | 10 |
| CLL50-95/2 | 50-95 | 22 | 2 | 22 | 13 |
| CLL120-185/2 | 120-185 | 30 | 2 | 40 | 17 |
| CLL240-300/4 | 240-300 | 36 | 4 | 55 | 22 |
Application
- Voltage Application
- Low Voltage
- Compatible Cables
- Aluminium CableAluminium Alloy Cable
