Aluminum Alloy Cable Connector
This connector is used for intermediate connections of aluminum and aluminum alloy cables in medium voltage applications. It features clear markings for correct crimping and is prefilled with jointing compound.
Technical Specifications
Product Overview
Aluminum Alloy Cable Connector
These intermediate cable connectors are designed for medium voltage applications, specifically for joining aluminum and aluminum alloy cables. Engineered for reliability, they feature clear barrel markings for precise crimping and come pre-filled with jointing compound to ensure optimal electrical performance. Each connector is built to meet established international standards for electrical connectivity.
Technical Specifications
Standard
IEC61238-1:2003
Key Features
- Clear markings for correct crimping location
- Prefilled with jointing compound
- Suitable for medium voltage applications
- Material
- Aluminum (Al ≥ 99.5%)
Dimensions and Compatibility

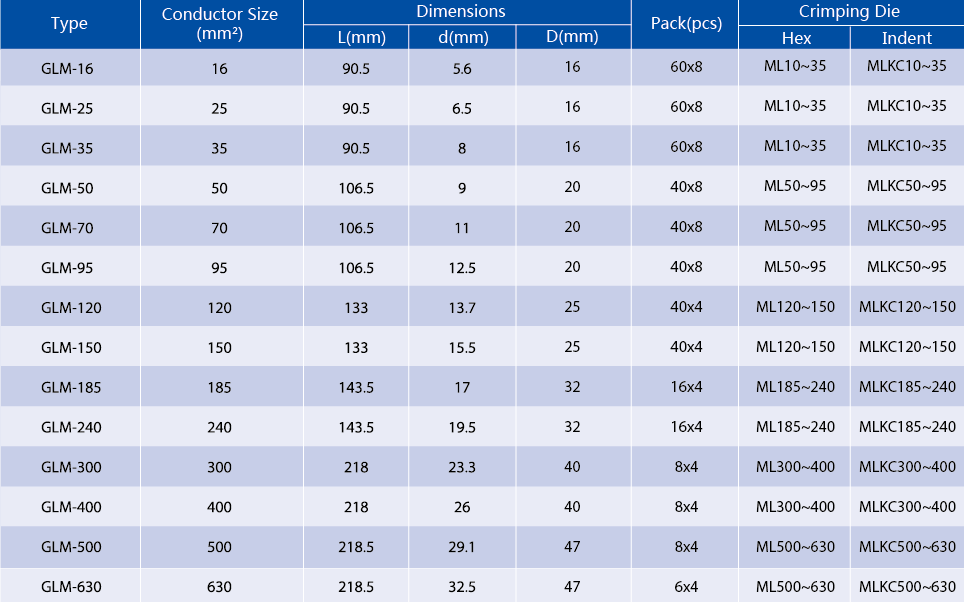

Connector Specifications
| Type | Size (mm²) | Length (mm) | Inner Ø (mm) | Outer Ø (mm) |
|---|---|---|---|---|
| GLM-16 | 16 | 90.5 | 5.6 | 16 |
| GLM-25 | 25 | 90.5 | 6.5 | 16 |
| GLM-35 | 35 | 90.5 | 8 | 16 |
| GLM-50 | 50 | 106.5 | 9 | 20 |
| GLM-70 | 70 | 106.5 | 11 | 20 |
| GLM-95 | 95 | 106.5 | 12.5 | 20 |
| GLM-120 | 120 | 133 | 13.7 | 25 |
| GLM-150 | 150 | 133 | 15.5 | 25 |
| GLM-185 | 185 | 143.5 | 17 | 32 |
| GLM-240 | 240 | 143.5 | 19.5 | 32 |
| GLM-300 | 300 | 218 | 23.3 | 40 |
| GLM-400 | 400 | 218 | 26 | 40 |
| GLM-500 | 500 | 218.5 | 29.1 | 47 |
| GLM-630 | 630 | 218.5 | 32.5 | 47 |
