Aluminum Alloy Cable Connector
This connector is used for intermediate connection of aluminum cable or aluminum alloy cable in medium voltage. It features an oil blocking structure and clear markings for correct crimping.
Technical Specifications
Product Overview
Professional Aluminium Connector
This high-quality aluminium alloy cable connector is engineered for the intermediate connection of aluminium and aluminium alloy cables in medium voltage electrical systems. Built to rigorous standards, it features an oil-blocking design and is pre-filled with jointing compound to ensure superior conductivity and long-term durability. Each connector includes clear markings on the barrel to guide professional installers to the correct crimping location.
Technical Specifications
Compliance Standard
NF C 33-090
- Material Purity
- Aluminium (Al) ≥ 99.5%
- Key Features
- Oil blocking structurePrefilled with jointing compoundCrimping location markings
Dimensions and Compatibility

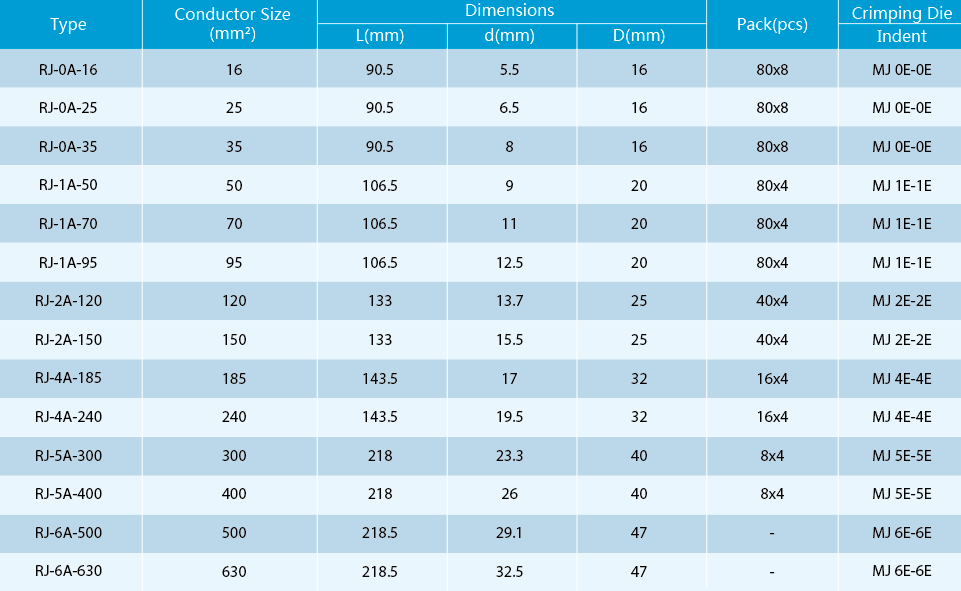

Detailed Specifications Table
| Model | Size (mm²) | Length (mm) | Inner Diameter (mm) | Crimping Die |
|---|---|---|---|---|
| RJ-0A-16 | 16 | 90.5 | 5.5 | MJ 0E-0E |
| RJ-1A-50 | 50 | 106.5 | 9 | MJ 1E-1E |
| RJ-2A-120 | 120 | 133 | 13.7 | MJ 2E-2E |
| RJ-4A-185 | 185 | 143.5 | 17 | MJ 4E-4E |
| RJ-5A-300 | 300 | 218 | 23.3 | MJ 5E-5E |
| RJ-6A-630 | 630 | 218.5 | 32.5 | MJ 6E-6E |
