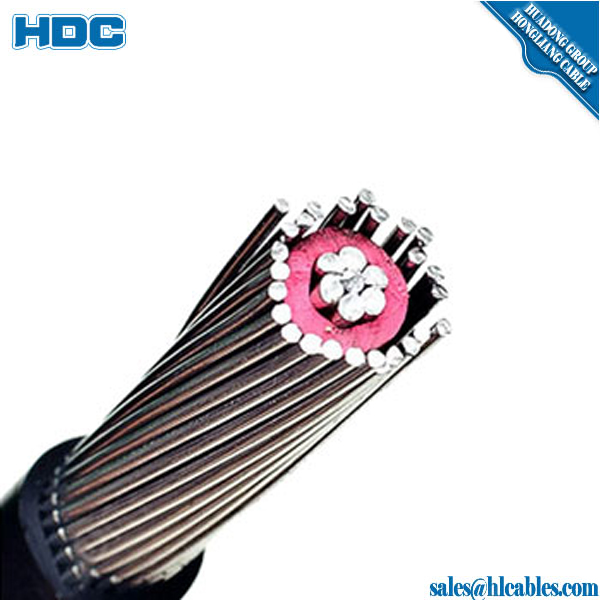

Aluminum Alloy Armored Power Cable
This concentric cable serves as an electric service entrance from the power distribution network to the meter panel, especially where prevention of power theft is required. It also functions as a feeder cable from the meter panel to the distribution panel, as specified in the National Electrical Code.
Technical Specifications
Product Overview
High-Performance Armored Power Cable
This 8000 series aluminum alloy armored power cable is engineered for reliable service entrance and feeder applications. Designed to comply with national electrical codes, it offers robust protection for both dry and wet environments, including direct burial. With its specialized XLPE/PVC insulation and armored construction, this cable ensures durability and safety in demanding power distribution networks.
Technical Specifications
Voltage Rating
600 V
Service Voltage
1,000 V
Maximum Voltage
- Max Operating Temperature
- 90 ºC
Construction Details
Minimum Bending Radius
| Configuration | Radius Calculation |
|---|---|
| Single Core | 15 * overall diameter |
| Multi Core | 12 * overall diameter |
- Conductor Material
- 8000 Series Aluminum Alloy
- Insulation Types
- XLPEPVC
Standards & Compliance
Standards
- ASTM
- IEC 60228
- BS
