Alloy Steel Swivel Hook for Lifting
This rotary safety hook is constructed from high-grade alloy steel. Designed with a new head to prevent decoupling, it deforms gradually under excessive load, ensuring a higher safety factor.
Technical Specifications
Product Overview

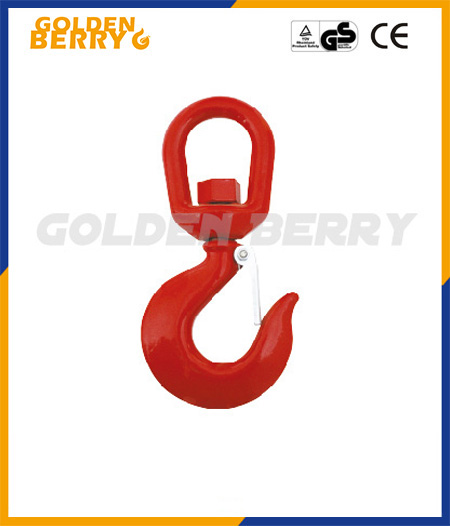

Professional Alloy Steel Swivel Hook
This high-grade alloy steel swivel hook is engineered for professional lifting and rigging applications. It features a 360-degree smooth swivel action designed to prevent cable twisting and binding under heavy loads. Its robust construction makes it an ideal component for integration into cranes, hoists, and various industrial lifting equipment.
Technical Specifications
Load Capacity and Dimensions
| Size | Weight | W.L.L | B.L.L |
|---|---|---|---|
| 6-8 | 0.7 | 1.2 | 4.8 |
| 7/8-8 | 1.21 | 2 | 8 |
| 10-8 | 2 | 3.2 | 12.8 |
| 13-8 | 0.35 | 5.3 | 21.2 |
| 16-8 | 7.1 | 8 | 32 |
| 18/20-8 | 12 | 12.5 | 50 |
Compliance and Standards
- Quality Standards
- CEGSTUV RheinlandISO 9001OHSAS 18001ISO 14001
