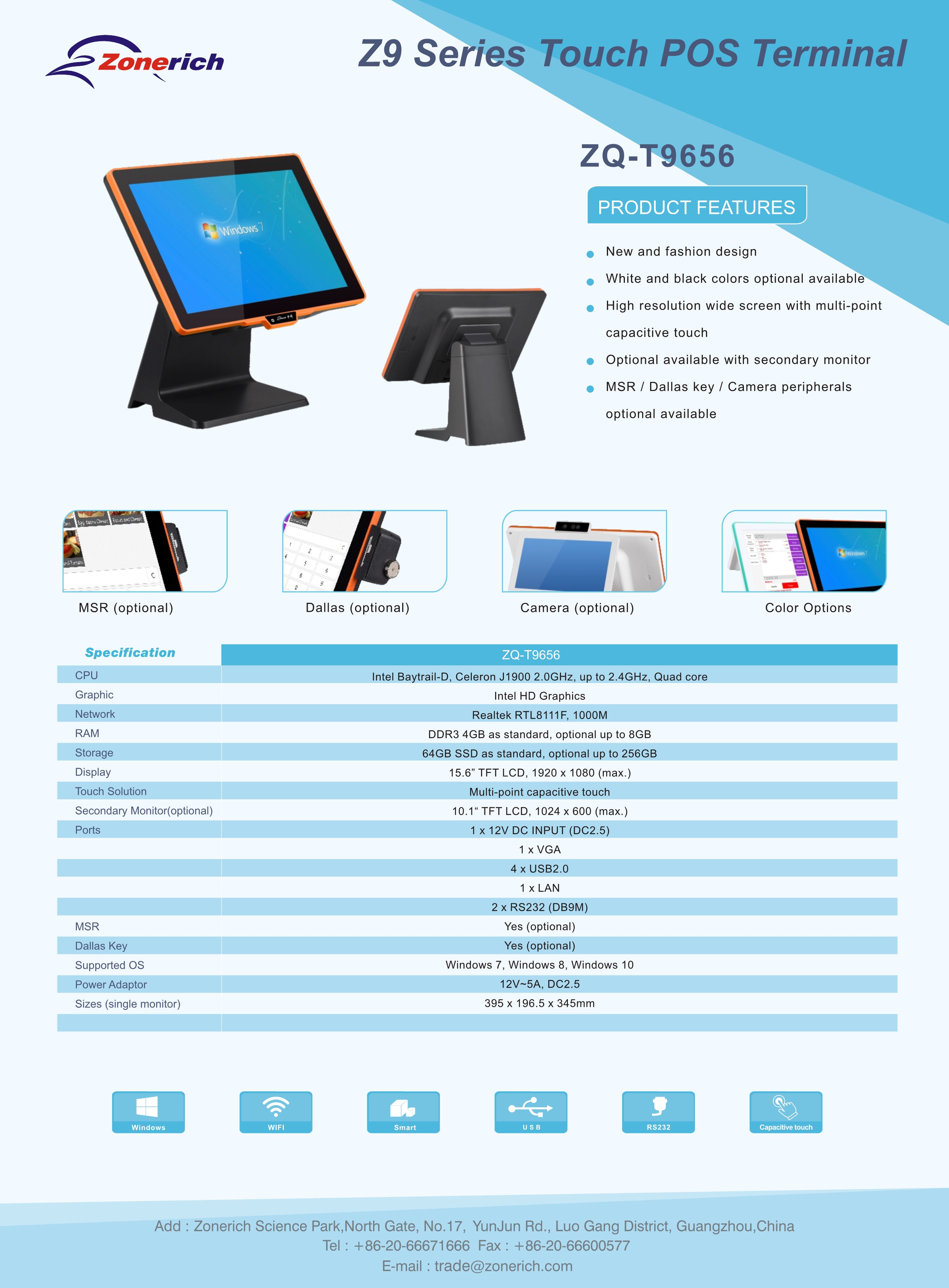

All-in-One Touchscreen POS Terminal
This all-in-one POS terminal features a high-resolution widescreen with multi-point capacitive touch. It supports optional peripherals such as a secondary monitor, MSR, Dallas key, and camera.
Technical Specifications
Product Overview
Professional POS Terminal Solution
This all-in-one POS terminal offers a modern, fashionable design suitable for retail and hospitality environments. It features a high-resolution, wide multi-point capacitive touchscreen for intuitive operation and efficient transaction management. With flexible hardware options and broad operating system compatibility, this system provides a durable, reliable solution for demanding business operations.
Core Specifications
- CPU
- Intel Baytrail-D Celeron J1900 2.0GHz (up to 2.4GHz Quad-core)
- RAM
- 4GB DDR3 (Expandable to 8GB)
- Storage
- 64GB SSD (Expandable to 256GB)
Display & Interface
- Main Display
- 15.6" TFT LCD (1920 x 1080 max resolution)
- Touch Interface
- Multi-point capacitive touch
- Optional Secondary Display
- 10.1" TFT LCD (1024 x 600 max resolution)
Connectivity & Ports
I/O Ports
| Port Type | Quantity |
|---|---|
| USB 2.0 | 4 |
| RS232 (DB9M) | 2 |
| LAN (RJ45) | 1 |
| VGA | 1 |
Features & Compatibility
Available Colors
BlackWhite
Peripheral Support
- MSR
- Dallas Key
- Camera
- Secondary Monitor
- Supported Operating Systems
- Windows 7Windows 8Windows 10
Physical Specifications
- Dimensions
- 395 x 196.5 x 345 mm
