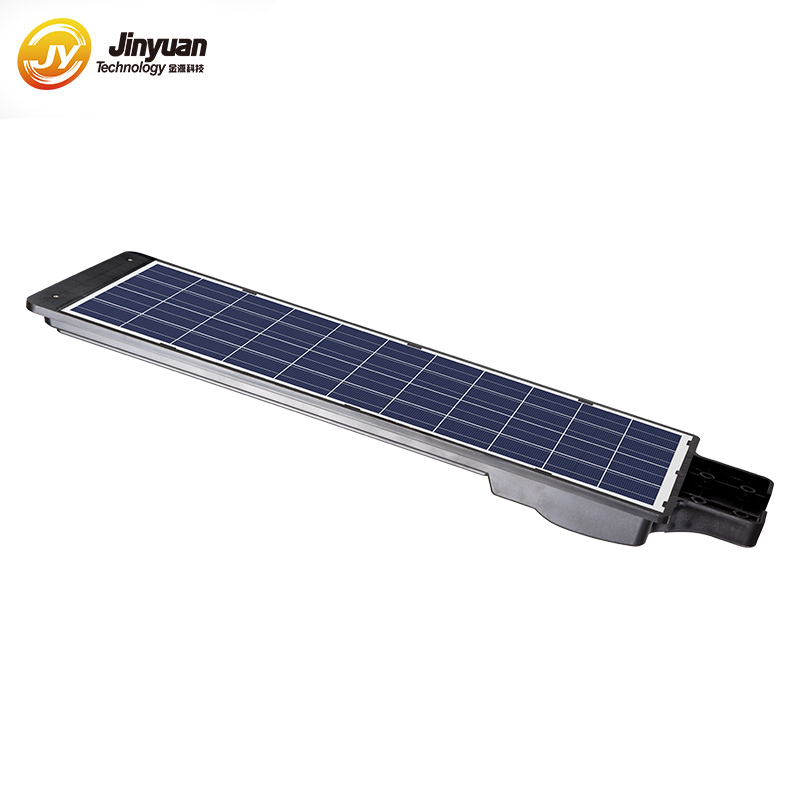

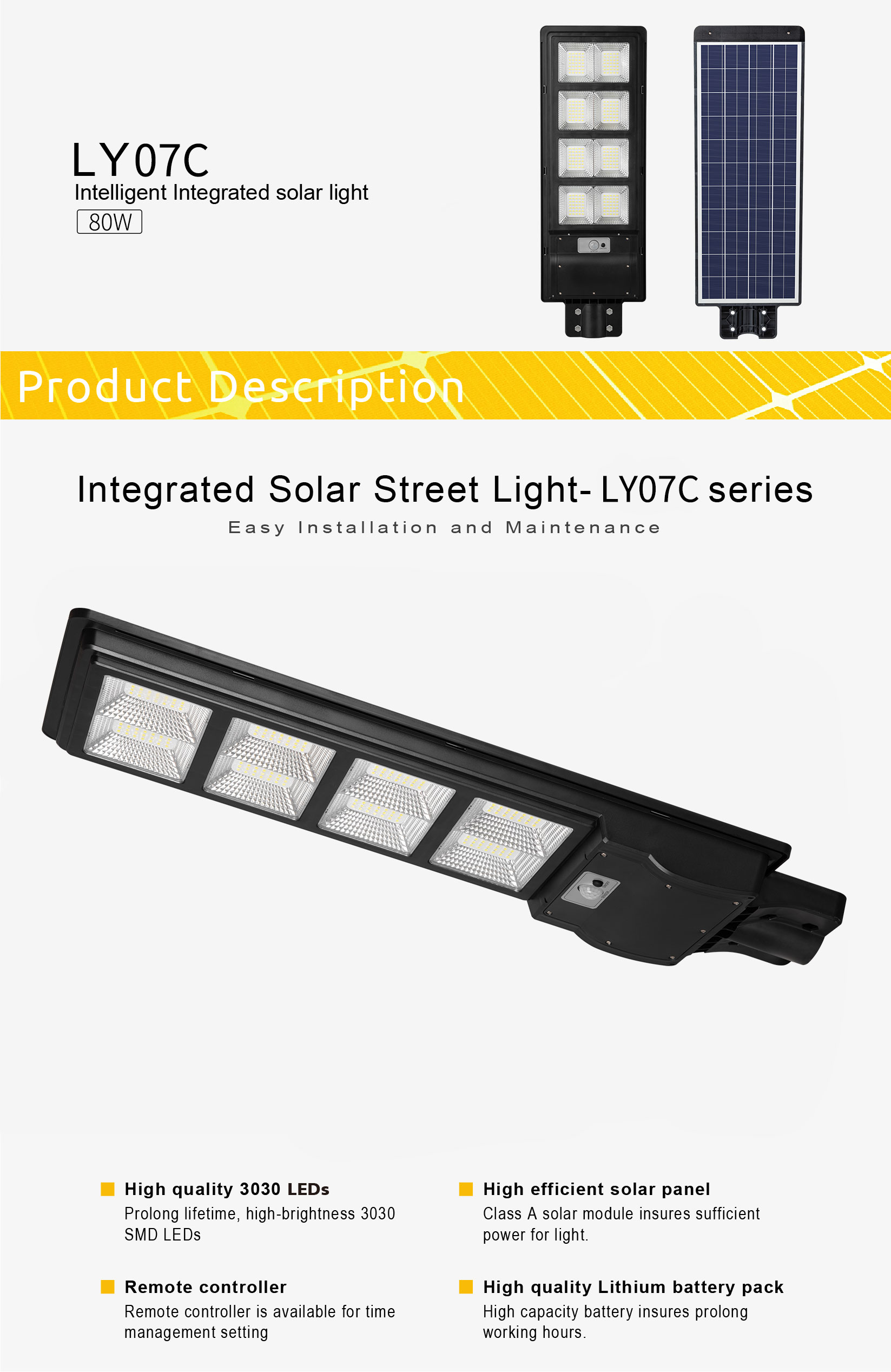

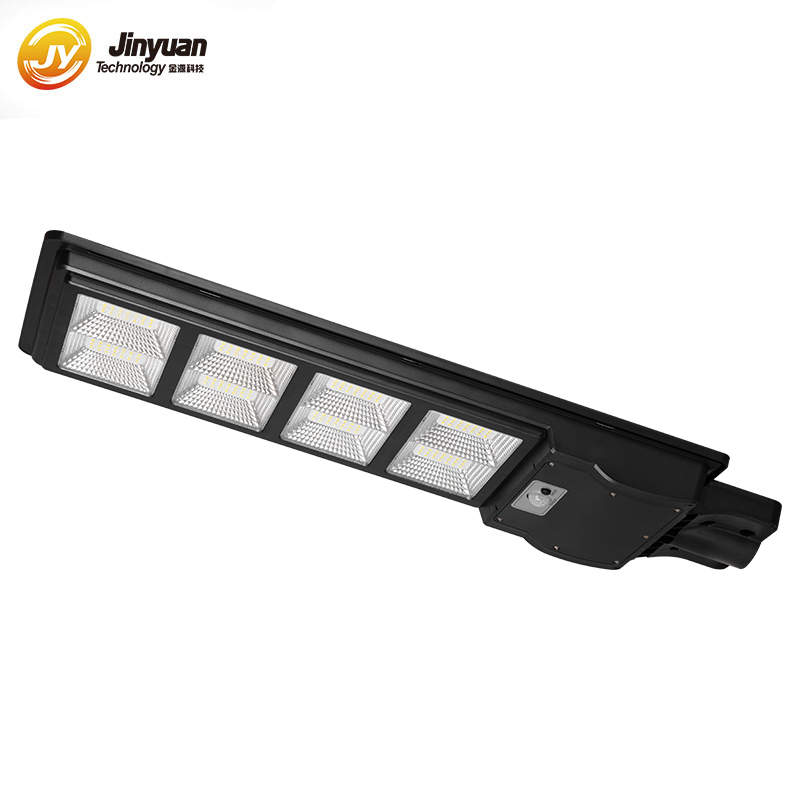

All-in-One Solar Street Light
This all-in-one solar street light combines efficient LED lighting with a solar panel and battery for autonomous operation. The integrated design simplifies installation and reduces wiring costs.
Technical Specifications
Overview
Intelligent All-in-One Solar Street Lighting
This integrated solar street light combines a high-efficiency solar panel, long-lasting LiFePo4 battery, and advanced LED lighting into a single, durable unit. Designed for seamless outdoor illumination, it features intelligent control systems that optimize energy usage and provide reliable lighting from dusk to dawn. With robust construction including high-quality aluminum housing, it offers excellent heat dissipation and weather resistance, making it an ideal, low-maintenance solution for streets, pathways, and parking areas.
Optical Performance
Key Lighting Metrics
80 W
Rated Power
1,100 Lm
Lumen Output
9,000 K
Color Temperature

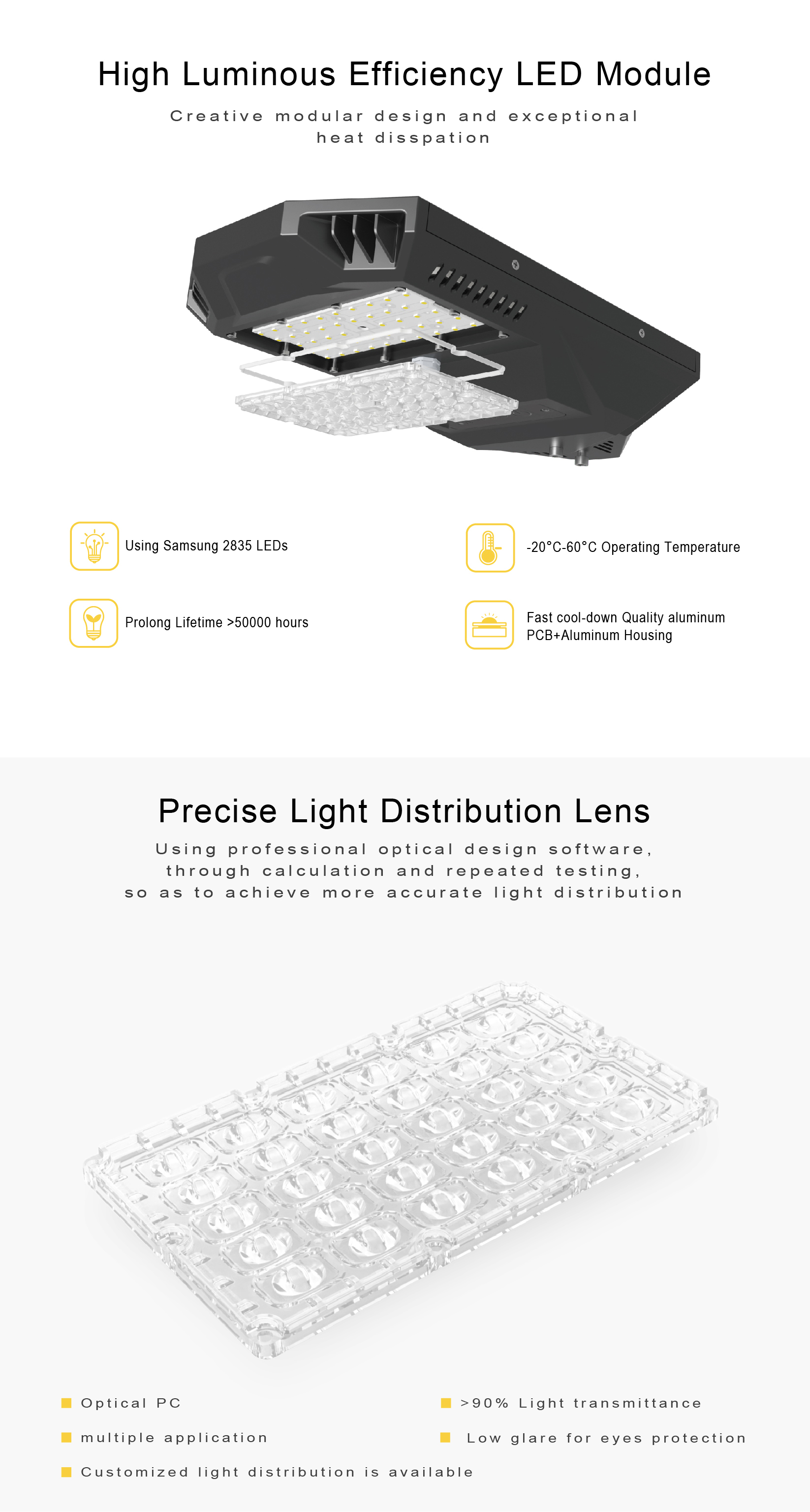

Optical Details
| Parameter | Value |
|---|---|
| CRI | Ra ≥ 70 |
| Beam Angle | 100-120° |
| LED Type | Samsung 2835 / 3030 |

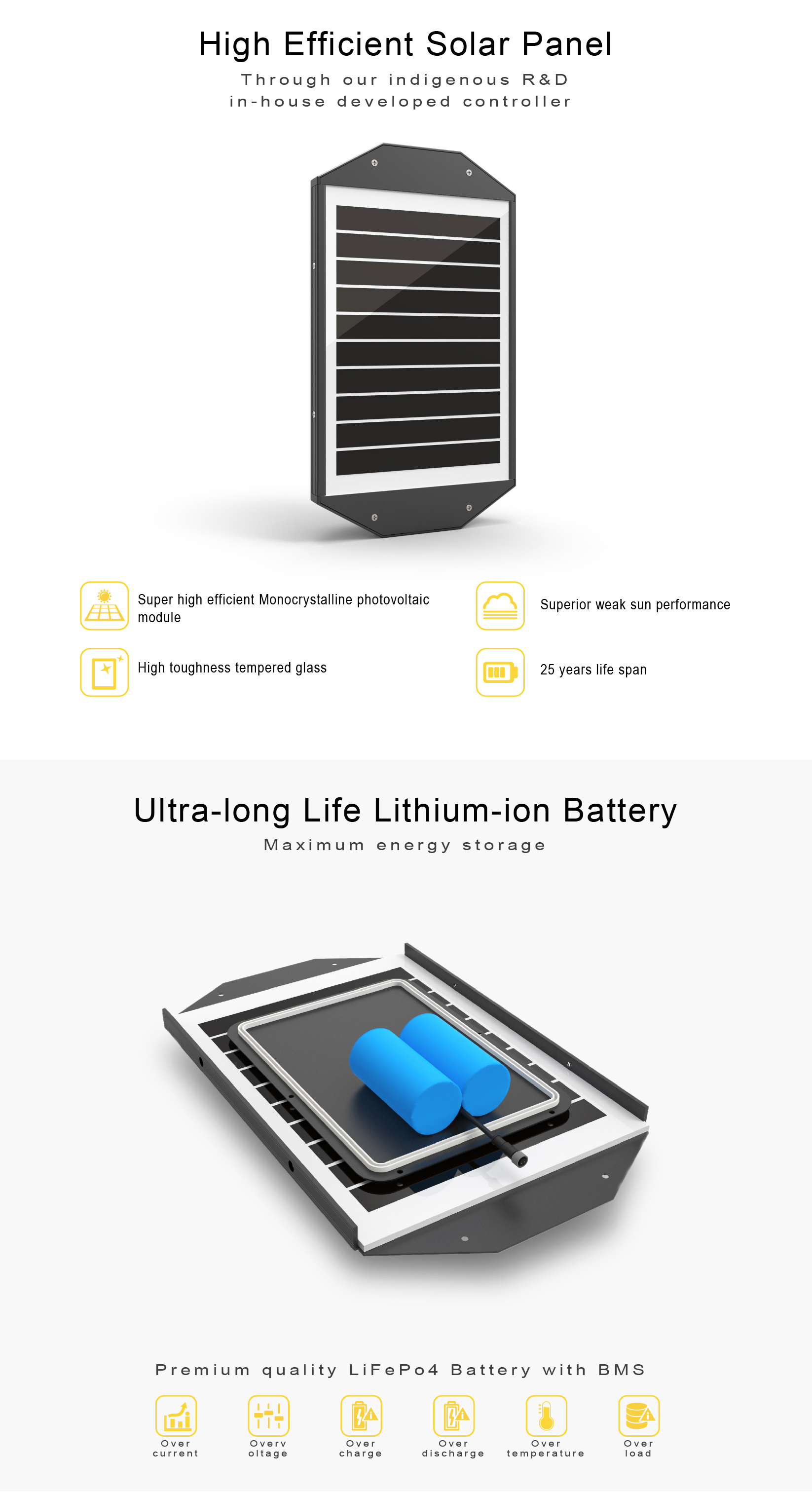

Solar & Battery
Solar Panel Specifications
| Feature | Specification |
|---|---|
| Nominal Power | 22W |
| Voltage at Pmax (Vmp) | 5.5V |
| Current at Pmax (Lmp) | 4.3A |
| Dimensions | 506 x 229 x 4.3 mm |
| Expected Lifetime | 25 Years |
Energy Storage
- Battery Type: LiFePo4 32650
- Nominal Capacity: 20Ah
- Nominal Voltage: 3.3V
- Includes Battery Management System (BMS)

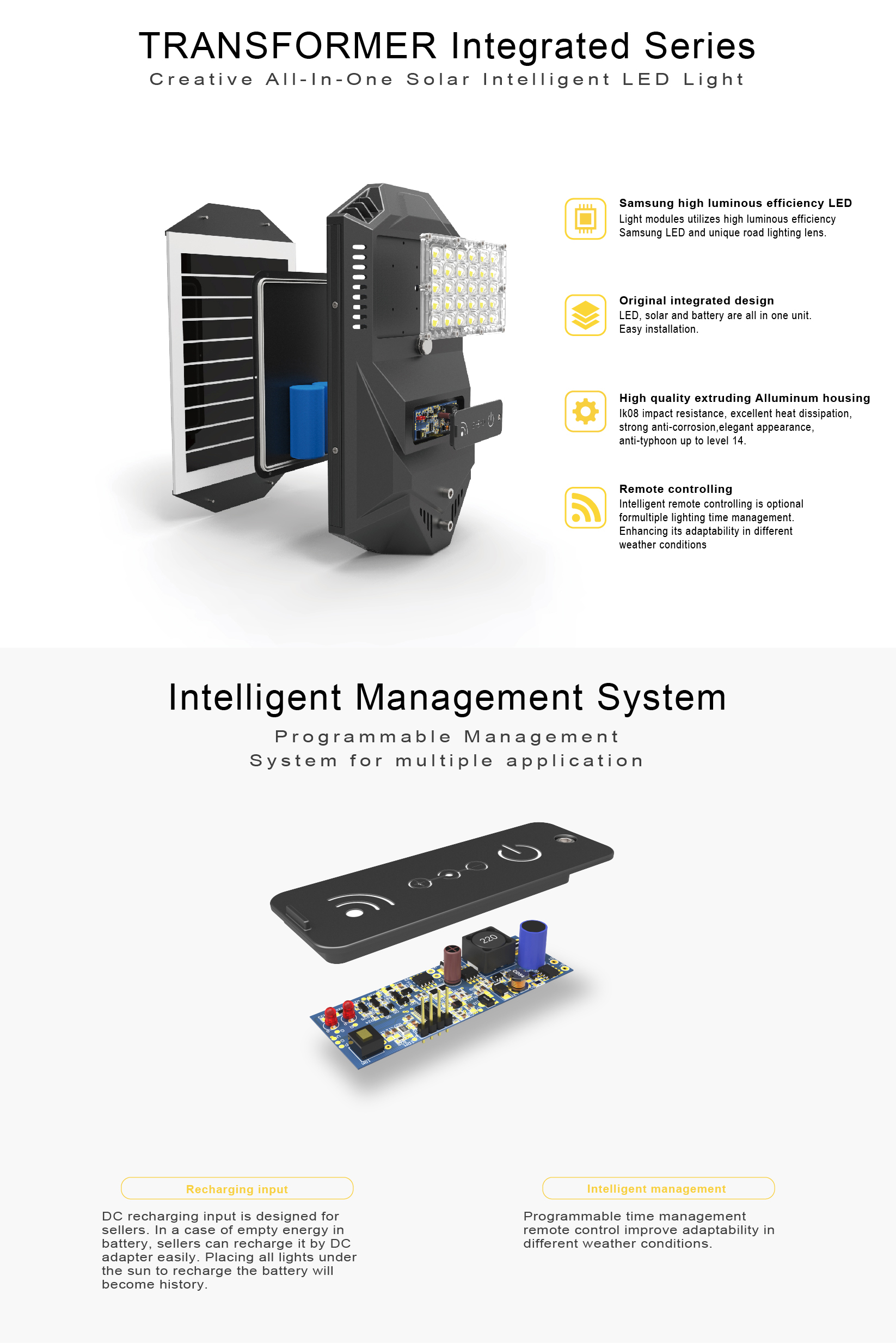

Construction & Features
Advanced Functionalities
- Operating Temperature: -20°C to 60°C
- Optical PC Lens (>90% Transmittance)
- Remote Controller Included
- Programmable Time Management
- DC Recharging Input Available
- Durability & Protection
- IK08 Impact ResistanceAnti-Typhoon Level 14Aluminum HousingExcellent Heat Dissipation
