All-in-One Solar Street Light | Outdoor Lighting Solution | Merhein

Technical Specifications

Overview

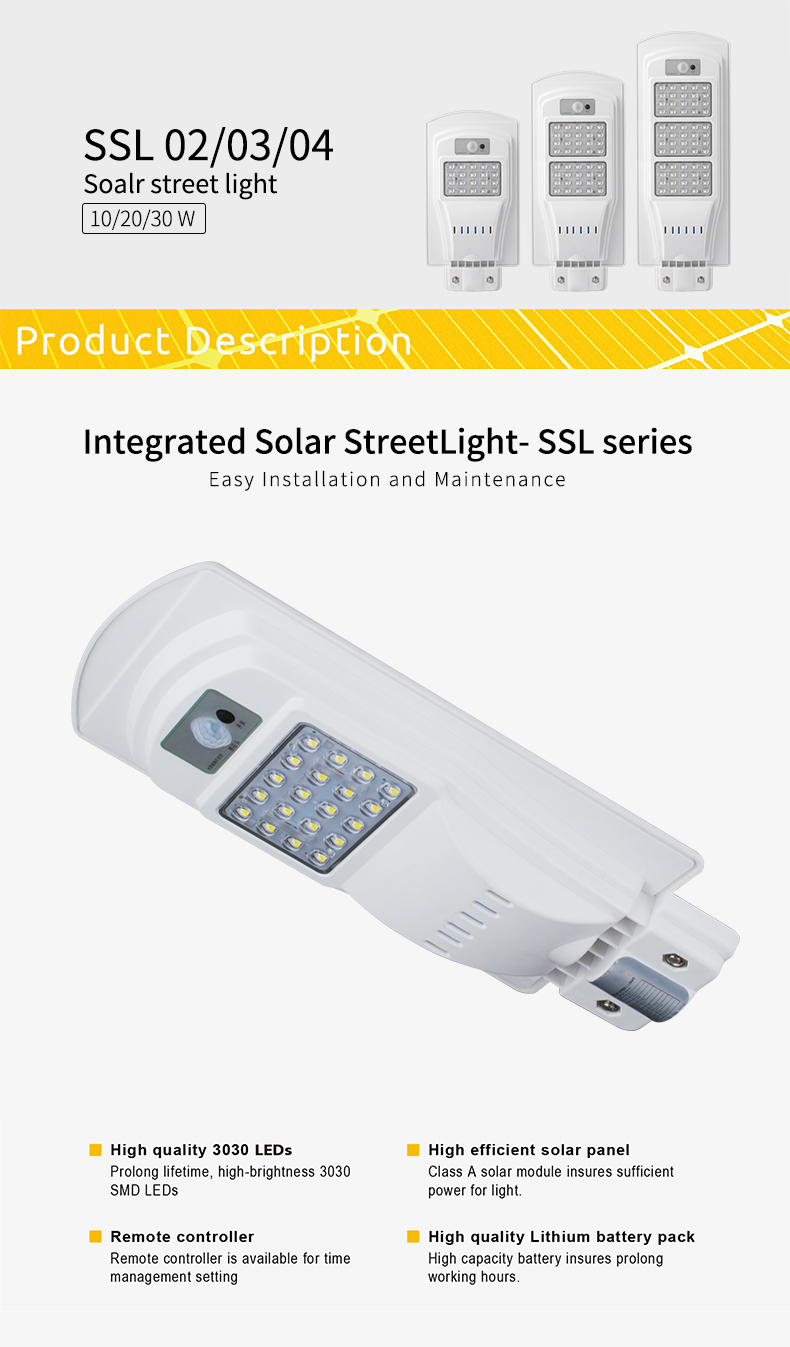

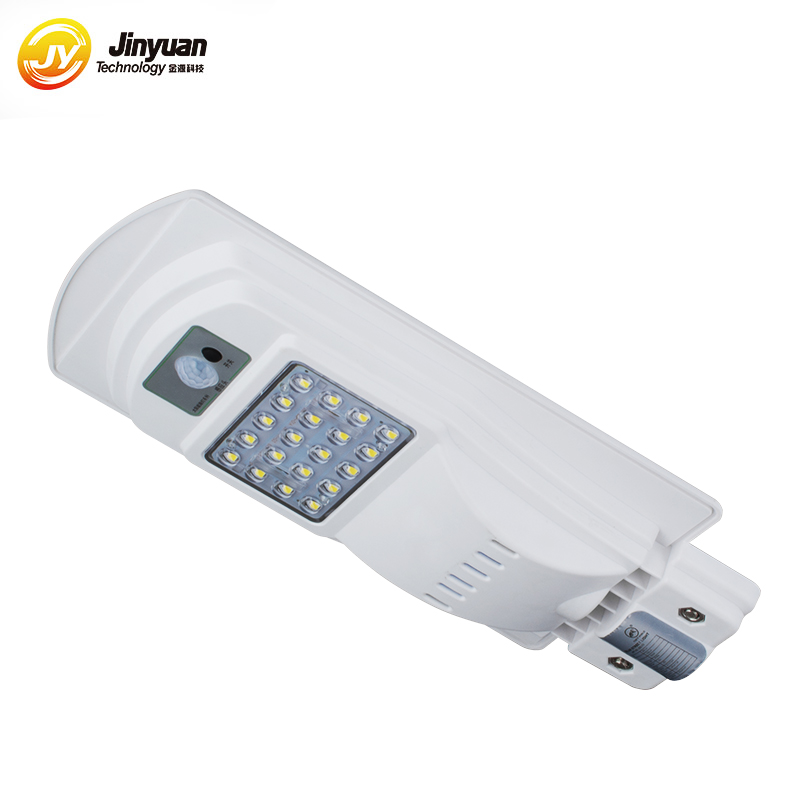

Integrated Solar Lighting Solution

This all-in-one solar street light series integrates the solar panel, LED lamp, battery, and controller into a single, compact unit. Designed for efficient outdoor illumination, these lights harness solar energy for sustainable, cost-effective performance in roadways, pathways, and parking lots. The system features high-quality 3030 SMD LEDs, a Class A solar module, and a durable lithium battery pack to ensure reliable operation and prolonged working hours.

Optical Performance

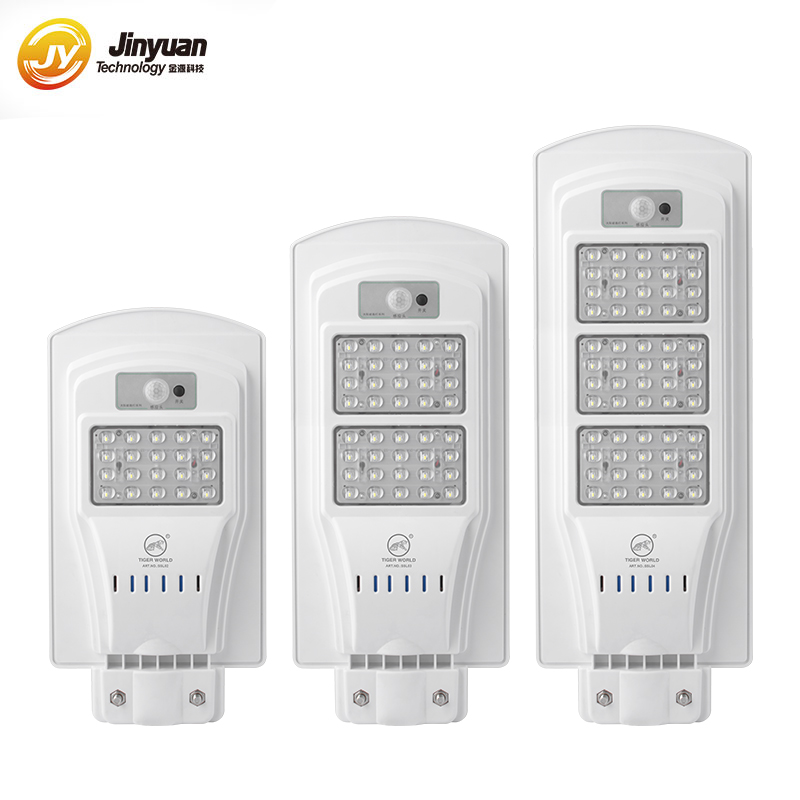

Model Comparison

Model	LED Power	Lumen Output
SSL02	10W	>350Lm
SSL03	20W	>650Lm
SSL04	30W	>950Lm

Light Quality

6,000 K

Color Temperature

70 ≥

CRI (Ra)

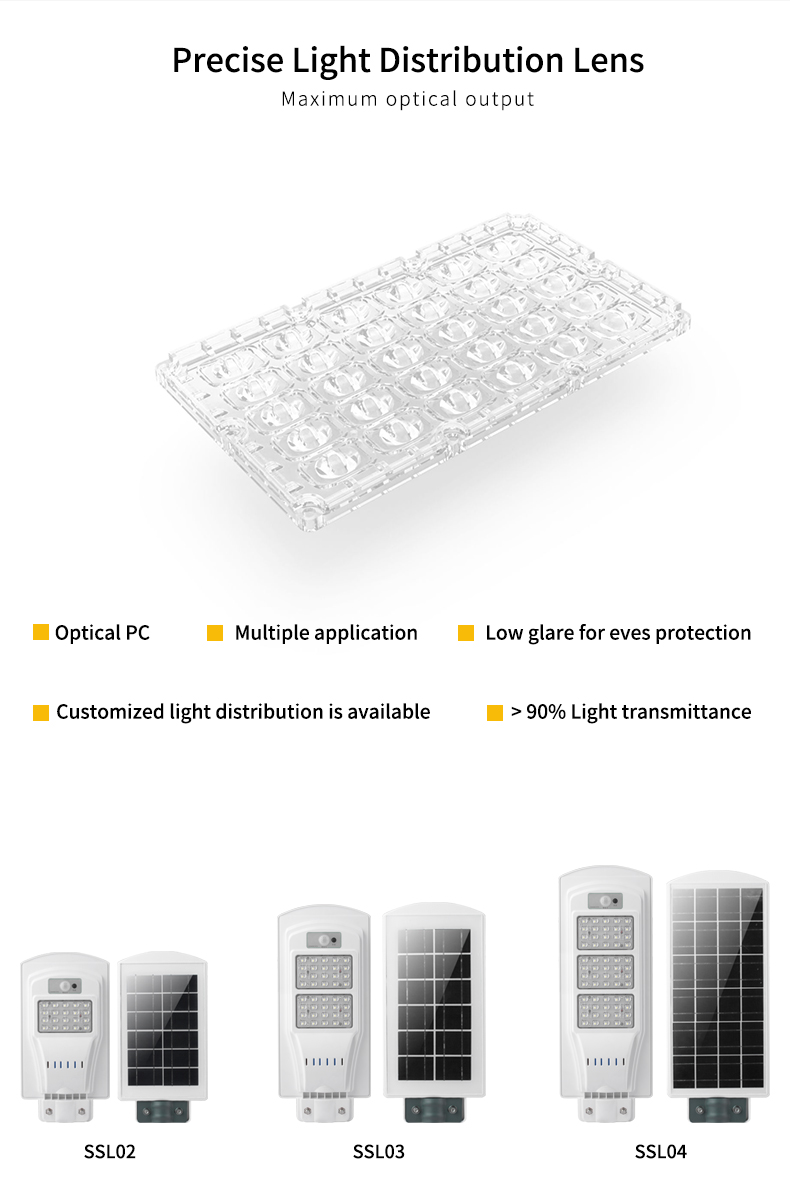

Close up of the optical lens used in the street light. — Precise light distribution lens constructed from optical PC material, offering >90% light transmittance and glare protection.

Solar Panel Specifications

Nominal Power

SSL02: 6W
SSL03: 9W
SSL04: 16W

Voltage at Pmax (Vmp): 5.5 V

Features & Construction

Key Features: Integrated Design3030 SMD LEDsClass A Solar ModuleLithium BatteryRemote Control IncludedOptical PC Lens
Lens Performance: 90 % Transmittance
