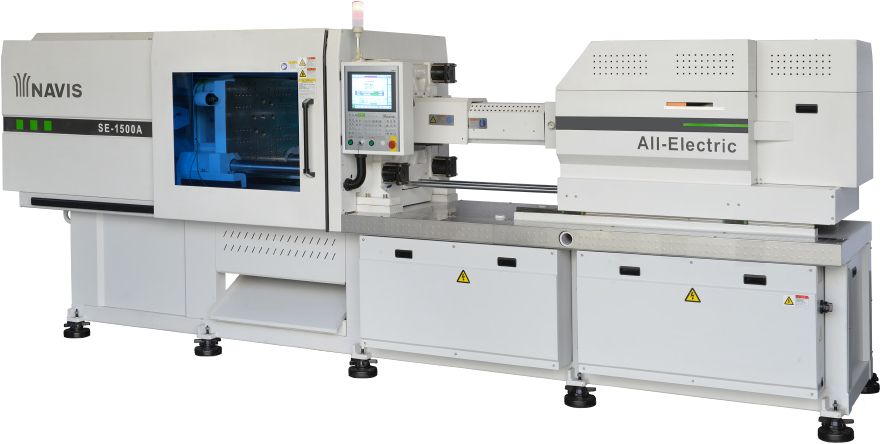

All-Electric Plastic Injection Molding Machine
This all-electric plastic injection molding machine offers a fast response and rigid toggle structure. The high-efficiency lubrication system utilizes a graphite alloy steel sleeve.
Technical Specifications
Product Overview
High-Precision All-Electric Injection Molding
The SE1500 is a cutting-edge all-electric injection molding machine engineered for high performance, energy efficiency, and reduced cycle times. It features advanced servo-driven mechanisms for precise injection, clamping, and mold movements, ensuring optimal part quality with minimal material waste. Designed for clean operation and lower noise levels, this robust machine is suitable for a wide range of thermoplastic materials in demanding production environments.

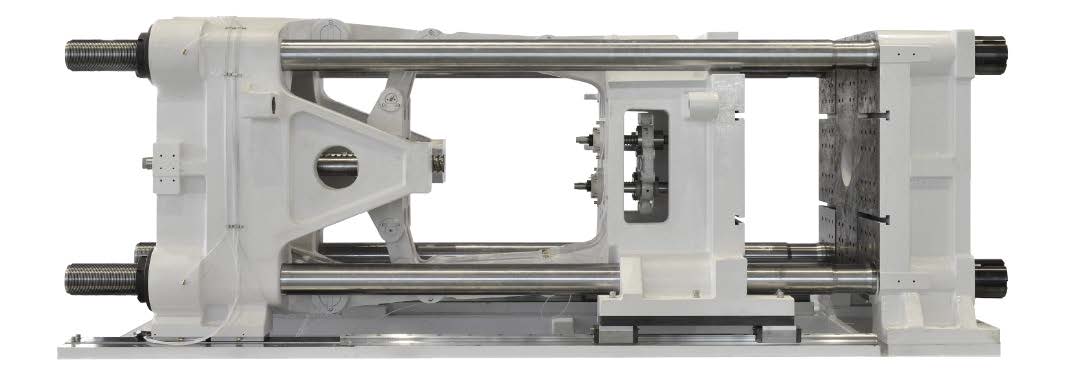

Clamping Unit
- Clamp Tonnage
- 1500 kN
- Toggle Structure
- High rigid toggle structure with 5 pins and self-lock
- Space Between Tie-Bars
- 530 x 480 mm
- Mould Thickness Range
- 200 - 550 mm
Injection Unit
Injection Performance Metrics
200 mm/s
Standard Injection Speed
350 mm/s
Optional High Speed
170 mm
Max Injection Stroke
- Screw Diameter Options
- 30mm34mm38mm36mm40mm45mm50mm
Control System
Control Capabilities
- Professional controller for all-electric molding
- Real-time curve display and inspection
- Advanced production management interface
- Precise process control for high repeatability

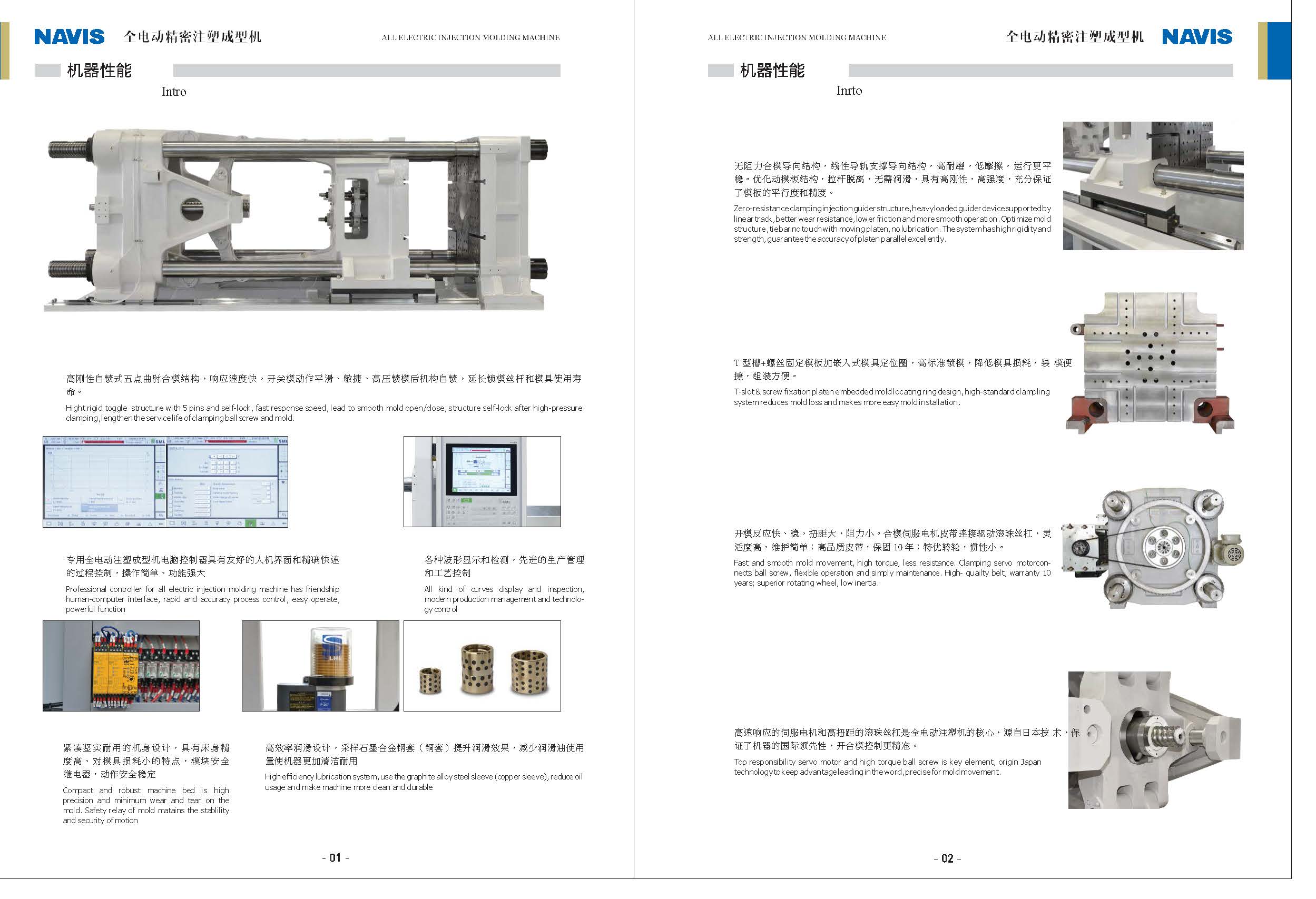

Mechanical Design
Technical Advantages
Zero-Resistance ClampingGraphite Alloy Steel SleevesLinear Track SupportT-Slot Platen10-Year Belt Warranty
- Lubrication System
- High efficiency system using graphite alloy steel (copper) sleeves to reduce oil usage.

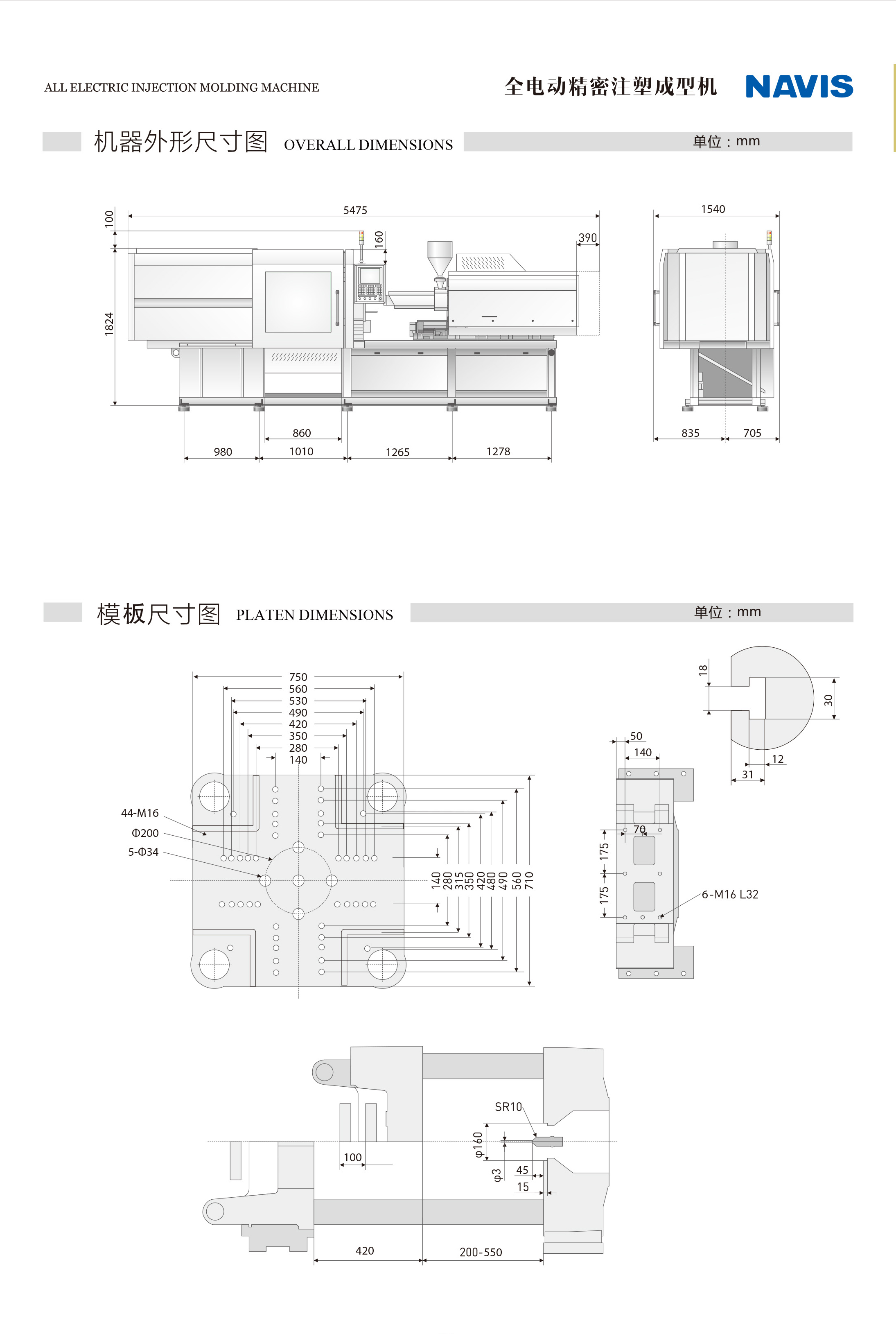

Dimensions & Weight
Machine Dimensions
| Parameter | Value |
|---|---|
| Overall Length | 5475 mm |
| Overall Width | 1540 mm |
| Overall Height | 1824 mm |
| Total Weight | 6.4 T |
Ejector System
Ejector Specifications
- Ejector Stroke: 100 mm
- Ejector Force: 29.4 kN
- Number of Ejector Pins: 5
