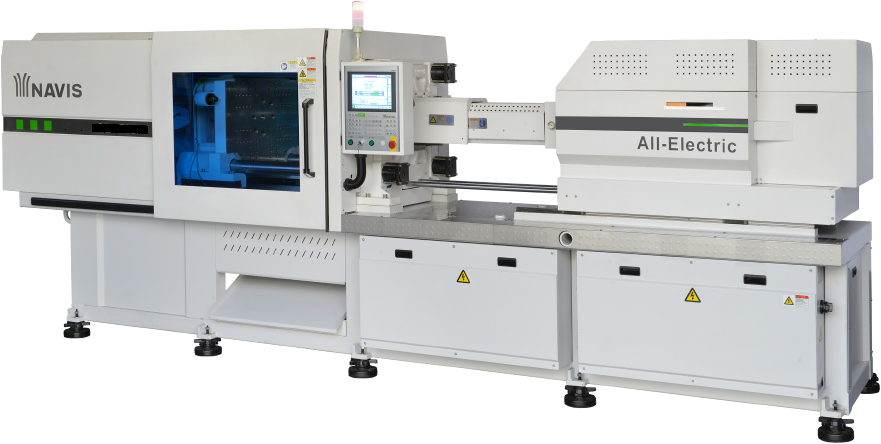

All-Electric Plastic Injection Molding Machine
This all-electric plastic injection molding machine features a rigid toggle structure and a high-efficiency lubrication system. The servo motor connects to a ball screw for flexible operation and simplified maintenance.
Technical Specifications
Overview
High-Precision All-Electric Injection Molding

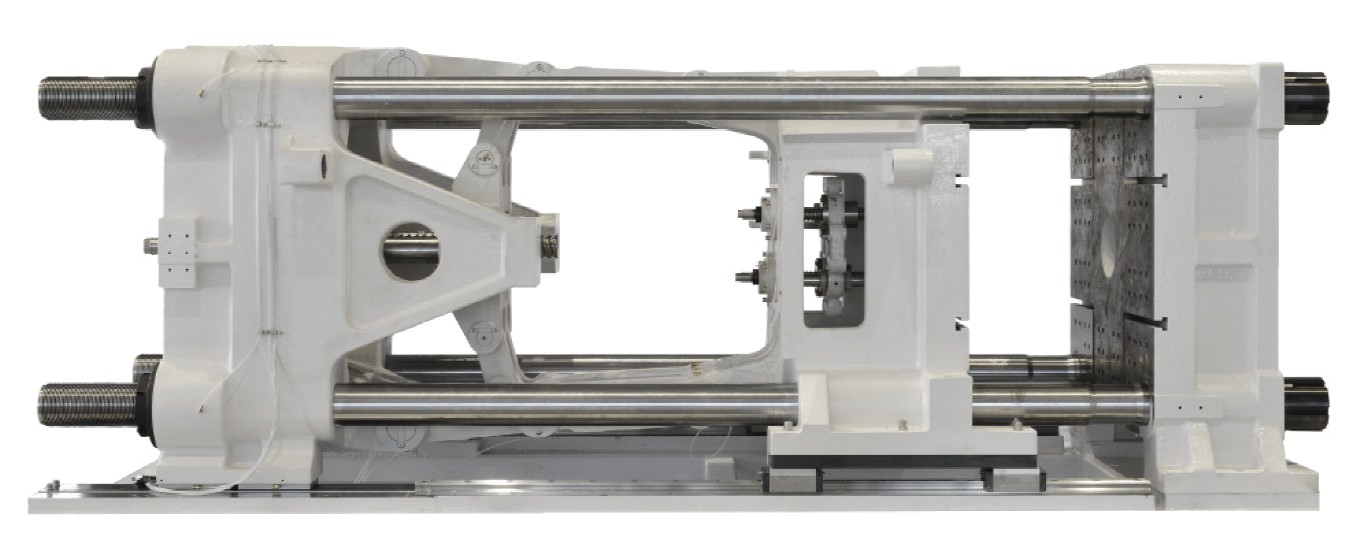

This all-electric plastic injection molding machine is designed for high-performance applications requiring extreme precision and energy efficiency. It features a high-rigidity toggle structure with a 5-pin self-locking mechanism and a zero-resistance clamping guider system supported by linear tracks. With advanced Japanese-origin servo motor technology and high-torque ball screws, it ensures fast response times, smooth mold movement, and consistent part quality for professional manufacturing environments.
Key Performance Metrics
Featured Capabilities
3,000 kN
Clamp Tonnage
600 mm
Open Stroke
13.5 T
Machine Weight
10 Years
Belt Warranty
Clamping Unit
Clamping Specifications
| Parameter | Value |
|---|---|
| Space Between Tie-Bars (HxV) | 730 x 680 mm |
| Platen Dimension (HxV) | 1020 x 960 mm |
| Mould Thickness Range | 250 - 750 mm |
| Ejector Stroke | 180 mm |
| Ejector Force | 49 kN |
| Number of Ejectors | 13 |
Injection Unit
Injection Unit Options
| Screw Diameter | Injection Capacity | Injection Pressure | Injection Speed (Standard) |
|---|---|---|---|
| 45 mm | 334 cm³ | 247 Mpa | 200 mm/s |
| 55 mm | 499 - 641 cm³ | 165 - 214 Mpa | 160 mm/s |
| 65 mm | 896 cm³ | 153 Mpa | 160 mm/s |

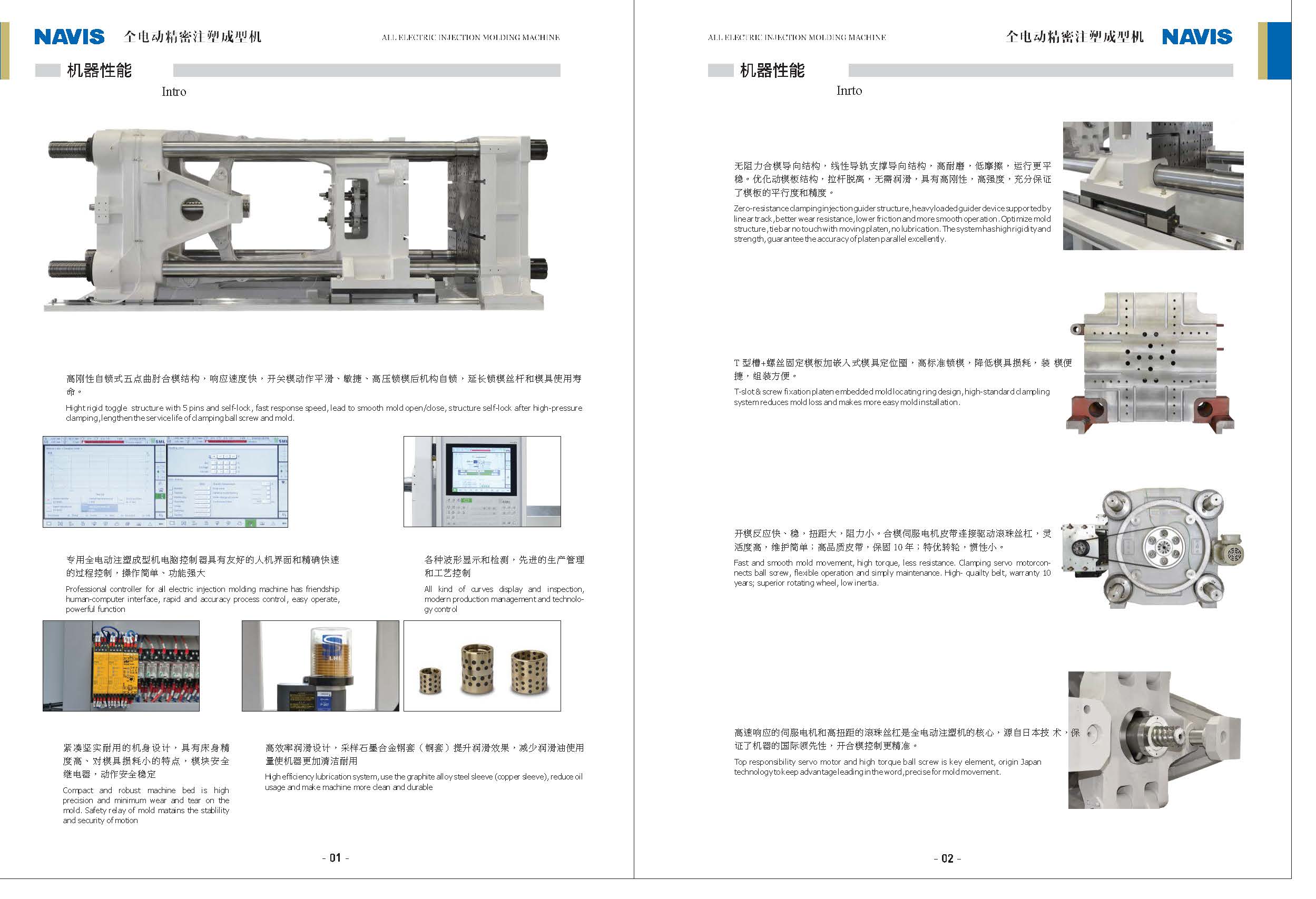

Technical Features
Mechanical Features
- Zero-resistance clamping injection guider structure
- High-efficiency lubrication system with graphite alloy steel sleeves
- T-slot and screw fixation platen with embedded locating ring
- High-torque servo motor with Japanese technology
- Direct-drive injection unit with closed-loop control
- Compact and robust machine bed design
Control System
- Control Capabilities
- User-Friendly HMIReal-time Curve DisplayProduction ManagementProcess ControlSafety Relay Integration

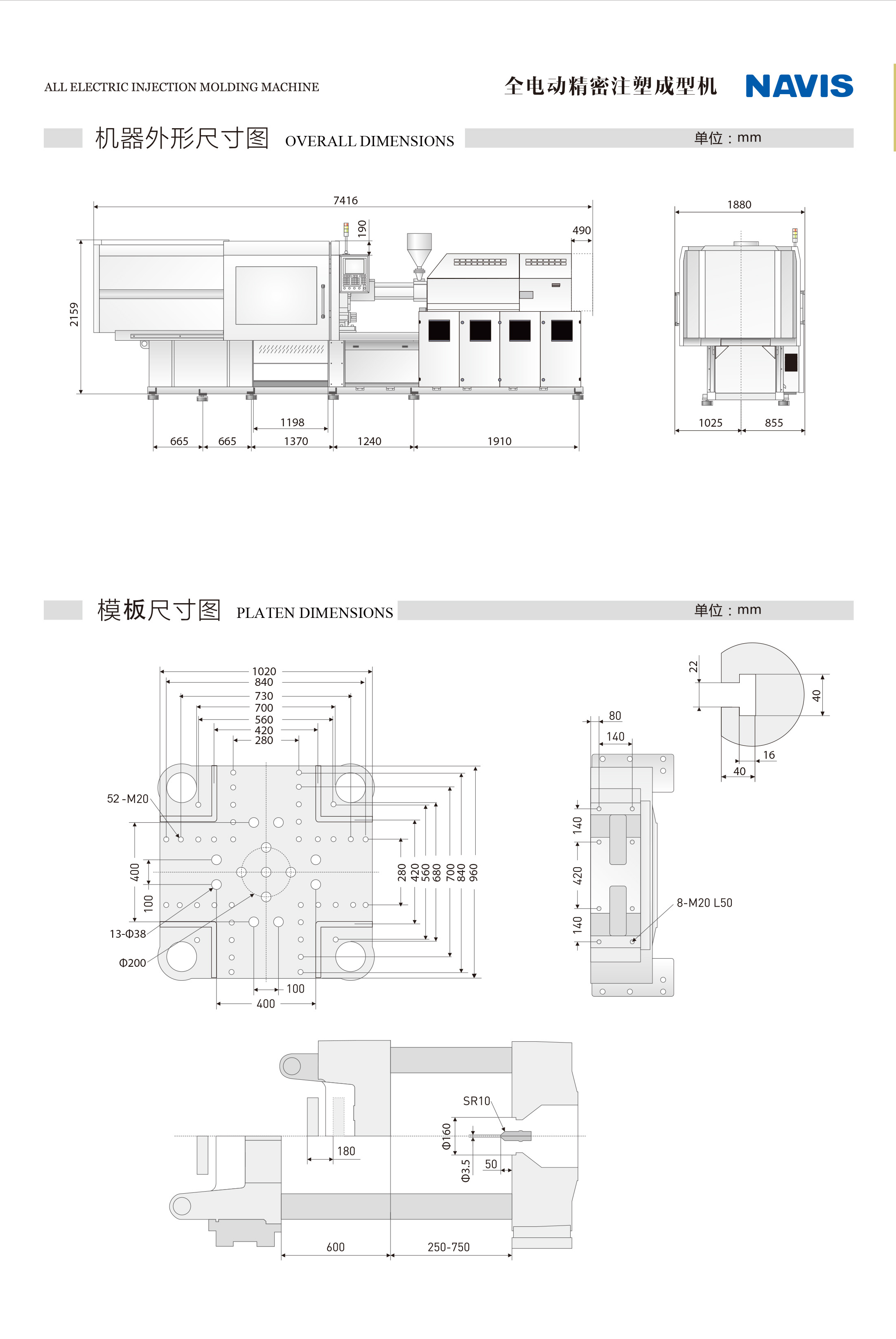

Dimensions
- Overall Length
- 7416 mm
- Overall Height
- 2159 mm
