Airless Paint Sprayer with Diaphragm Pump
This airless paint sprayer uses a diaphragm pump for consistent material delivery. It features adjustable pressure control for various coating types and project sizes.
Technical Specifications
Overview
Professional Diaphragm Paint Sprayer

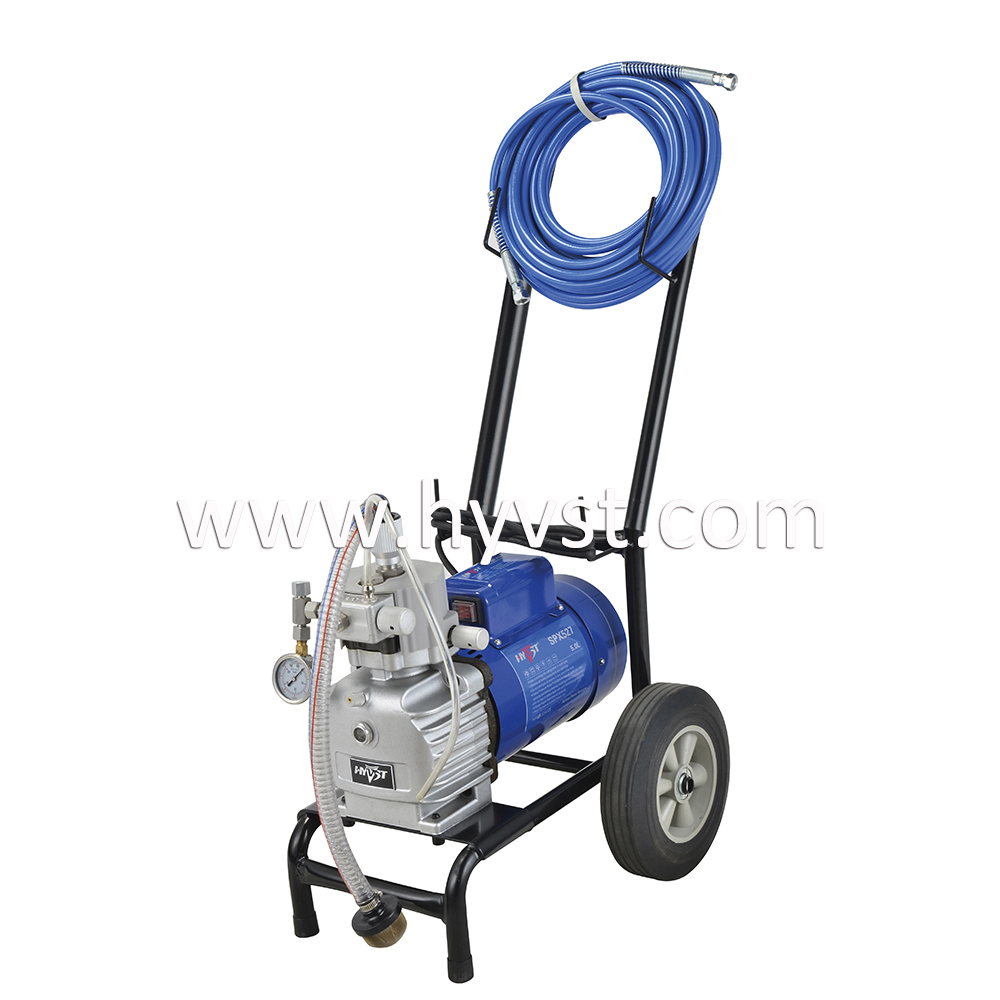

This airless paint sprayer features a robust diaphragm pump system mounted on a portable wheeled cart, designed for small to medium-sized painting projects. It offers reliable mechanical pressure control that mimics electronic precision, ensuring consistent material delivery. Built for durability, the unit includes stainless steel and tungsten carbide valves with a 2-layer inlet filter system for high performance.
Performance Metrics
Maximum Flow Rate
5 L/min
Max Flow
1.3 gpm
Max Flow
- Maximum Pressure
- 200 Bar
- Motor Power
- 3000 W
Technical Specifications
Nozzle Capacity
- Suggested Nozzle: 0.025"
- Maximum Nozzle: 0.027"
- Model Number
- SPX527
- Voltage/Frequency
- 110/220V, 50/60Hz
- Certifications
- CE
Physical Dimensions
Weight
42 kg
Net Weight
44 kg
Gross Weight
- Packing Size
- 52 x 45 x 53 cm
Included Accessories
Included Items
- 10m pressure hose (1/4" + 3/8")
- 45cm extension wand
- Spray gun with 525 tip
- Repair tools
- Spare parts kit
- English manual
Logistics
Container Loading Capacity
| Container Type | Units |
|---|---|
| 20GP | 201 |
| 40FT | 370 |
| 40HQ | 532 |
