Technical Specifications
Product Overview
Innovative Fluid Transportation

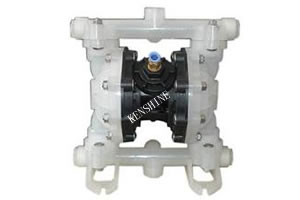

The RW series air-operated double diaphragm pump is a high-performance fluid transport solution powered by compressed air. Designed for versatility, this pump excels at handling corrosive, volatile, flammable, or viscous fluids, including those with suspended solids. The system offers self-priming capabilities and the ability to run dry without damage, making it a reliable choice for demanding industrial environments across sectors like chemical processing, food, and mining.
Technical Specifications
Model Performance Data
| Model | Max Capacity (L/Min) | Max Head (m) | Inlet/Outlet (inch) |
|---|---|---|---|
| RW06 | 17 | 70 | 1/4 |
| RW10 | 26 | 70 | 3/8 |
| RW15 | 50 | 70 | 1/2 |
| RW25 | 150 | 70 | 1 |
| RW40 | 340 | 70 | 1.5 |
| RW50 | 570 | 70 | 2 |
| RW80 | 1,000 | 70 | 3 |
- Construction Materials
- Aluminum AlloyNodular Cast IronPolypropyleneStainless Steel
- Diaphragm Options
- Styrene RubberNeoprenePolythenePolyether RubberFluorine RubberTeflonPVDF
Industry Applications
Compatible Industries
- Chemical
- Petrochemical
- Coatings
- Cosmetics
- Ceramics
- Mining
- Water Treatment
- Food & Beverage
- Pharmaceutical
- Paper
- Electronics
- Textile
- Construction
- Automotive
- Furniture
- Metallurgy
