Air Flow Resistance Tester for Face Mask Melt-Blown Fabrics

This air flow resistance machine is a differential pressure tester designed for evaluating the air permeability of melt-blown fabrics used in face masks. It measures the pressure drop across the material at a specified airflow rate, providing crucial data for assessing breathability and filtration efficiency.

Request a Quote Download PDFPDF

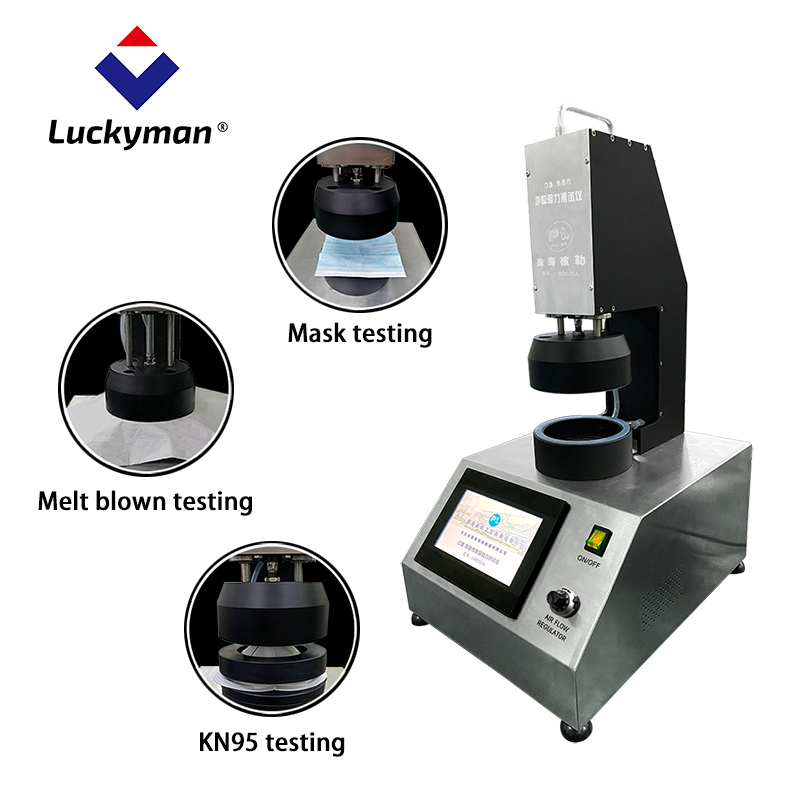

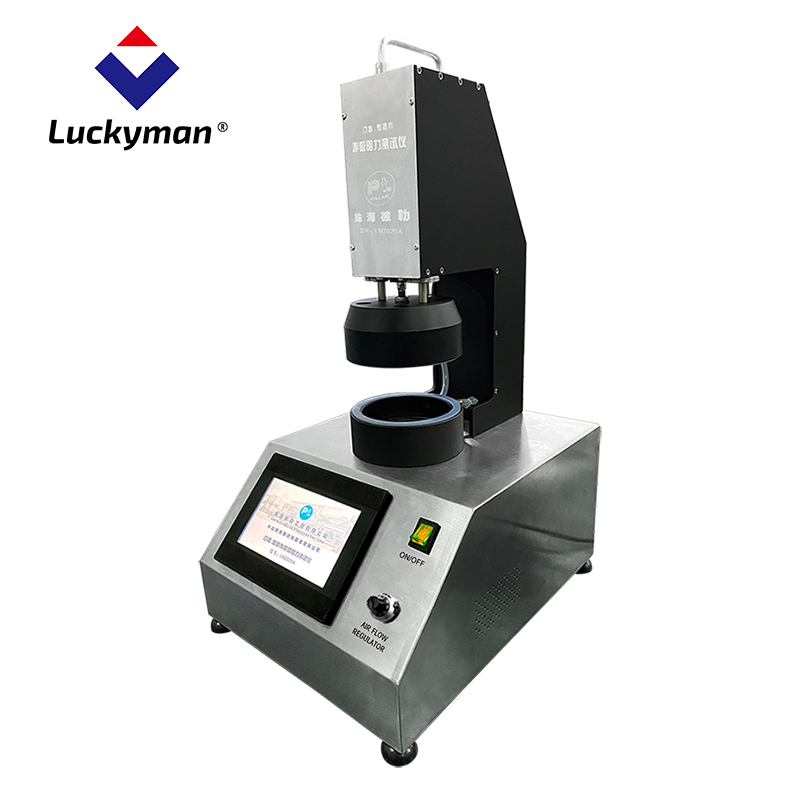

[copy]Air Flow Resistance Machine Differential Pressure Tester For Melt Blow Face Mask GB2626 - Image 1

Technical Specifications

Overview

Professional Air Flow Resistance Testing

This differential pressure tester is specifically designed to evaluate the breathability and filtration efficiency of melt-blown fabrics and various face mask types. It features a high-resolution touch screen with a bilingual interface and an imported flow sensor chip for high-accuracy measurements without needing temperature compensation. With its integrated thermal printer and large internal memory, it provides a complete solution for quality control and compliance testing in mask production.

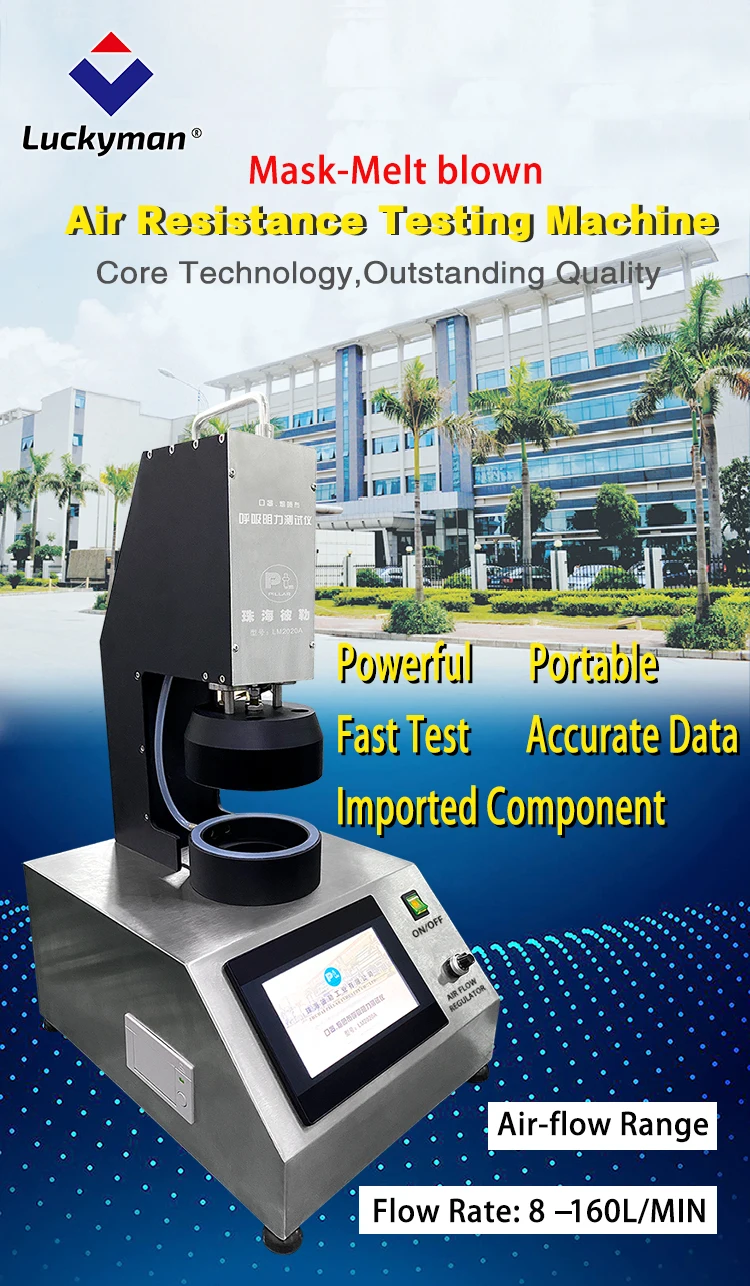

Front view of Air Resistance Testing Machine — The testing unit features a clear digital interface and integrated air-flow regulator for precise 8-160L/min control.

Technical Performance

Test Flow Range

8 L/min

Min Flow

160 L/min

Max Flow

Accuracy & Stability

Imported flow sensor chip
No temperature pressure compensation required
Special flow rate adjustment element
External vacuum pump to reduce vibration

Pressure Scale: 1500 Pa

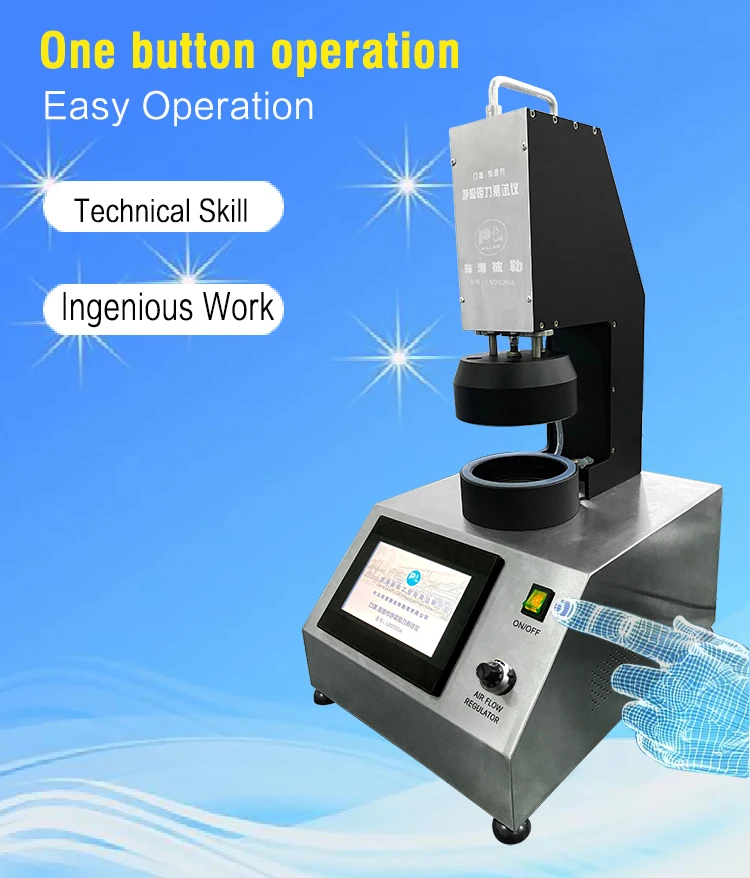

One button operation panel — Simplified one-button operation ensures high efficiency during repetitive quality control tests.

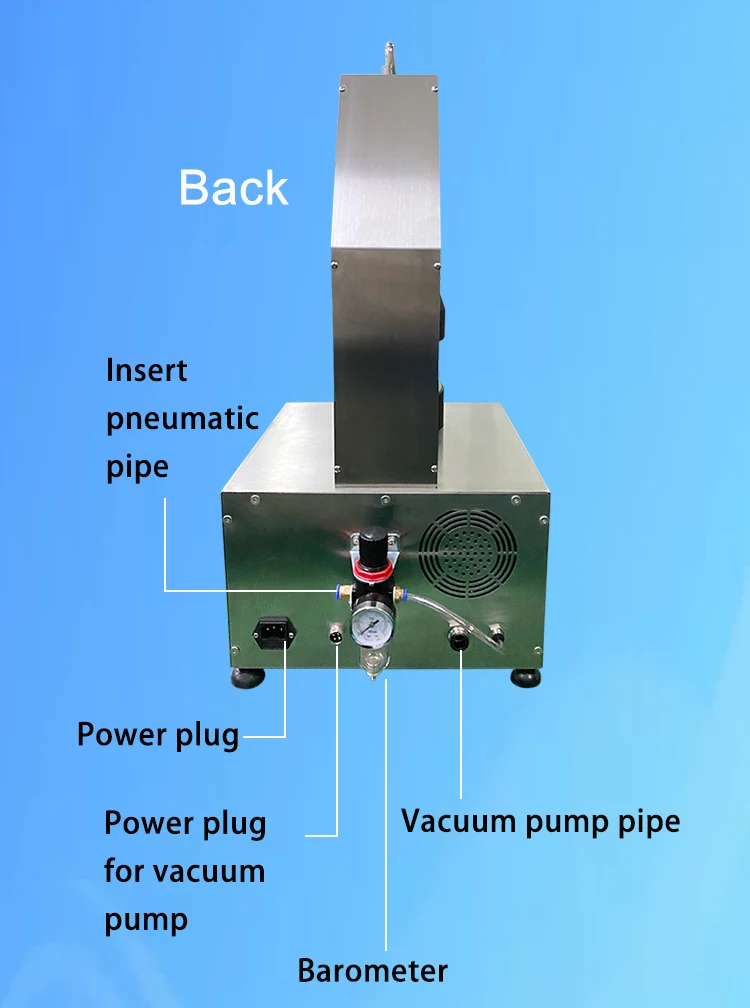

Rear view of the tester showing connection ports — Rear panel features dedicated ports for vacuum pump integration and pneumatic pipe insertion.

Compliance & Standards

International Standards

Region	Standard Codes
China	GB2626-2006, GB/T 32610-2016, YY 0969, YY/T 0469
Europe	EN149, EN14683
USA	NIOSH

Application Range

Compatible Materials: Melt-blown FabricNon-woven FabricComposite ClothFlat Face Mask3D Face MaskCup Shape Face MaskKN95N95

Interface & Data

System Features

Touch ScreenChinese/English InterfaceThermal PrinterReal-time Data Record

Data Storage: 1000 sets

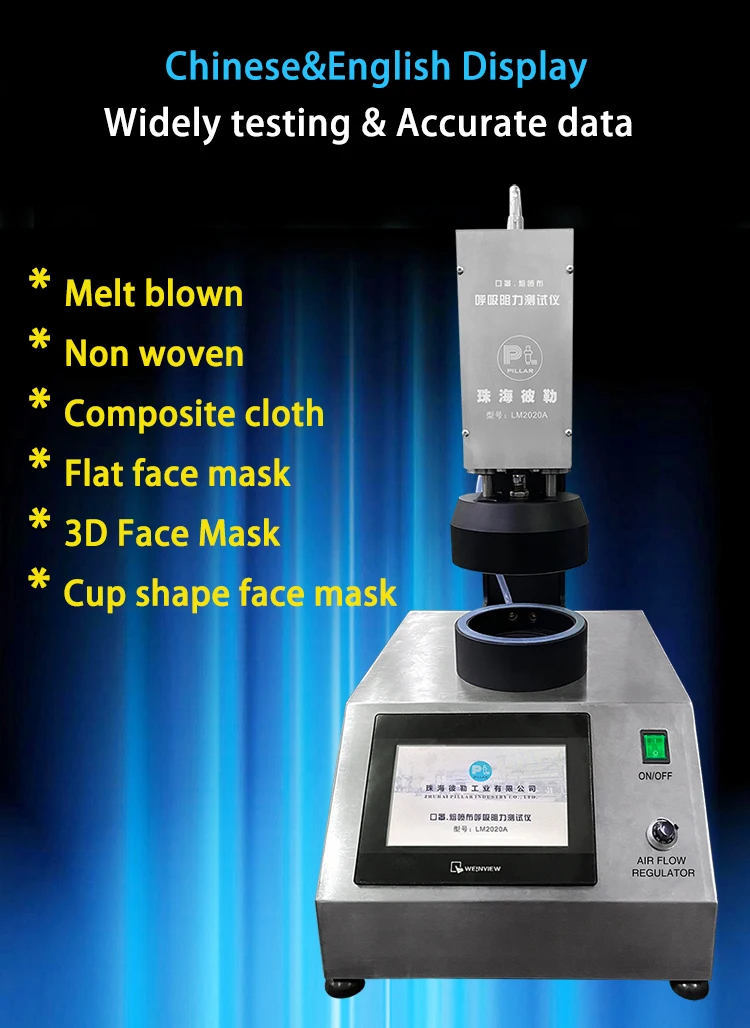

Touch screen interface showing mask testing options — User-friendly touch screen supports both Chinese and English for global laboratory use.

Physical Specifications

Net Weight: 18 kg
Machine Dimensions: 650mm x 440mm x 330mm
Shipping Package: Foam Box and Carton Box (50.5 x 41.5 x 72 cm)

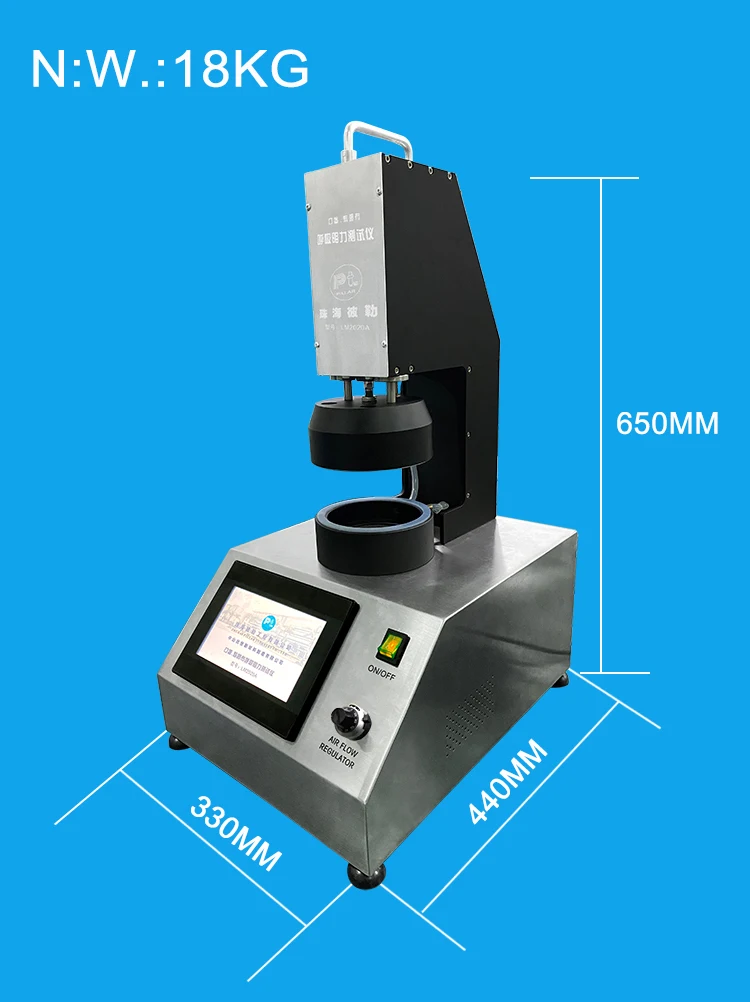

Machine dimensions and weight diagram — Compact 18kg design suitable for desktop laboratory environments.

Product packaging details — Securely packed in foam and heavy-duty carton for safe international transit.
