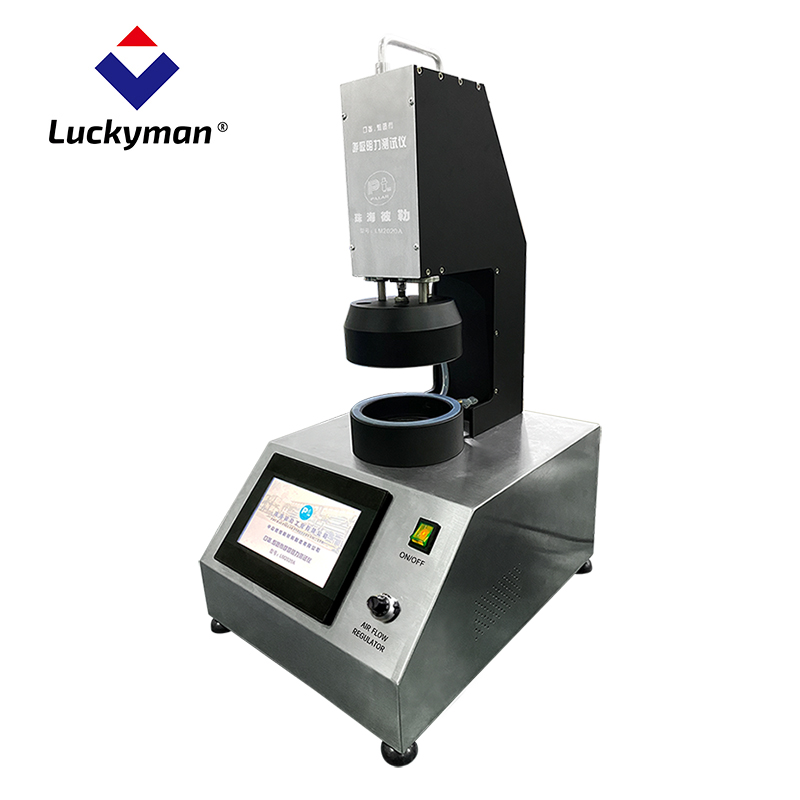

Air Flow Resistance Tester for Face Mask Melt-Blown Fabric
This air flow resistance tester measures the pressure drop across melt-blown fabrics. It is designed to evaluate the breathability and filtration efficiency of face masks.
Technical Specifications
Overview
Professional Air Flow Resistance Testing
This high-precision differential pressure tester is designed to evaluate the breathability and filtration efficiency of melt-blown fabrics and various face mask types. Compliant with major international standards including GB2626, EN149, and NIOSH, it provides essential quality control data for respiratory protective equipment. The machine features an imported flow sensor and a high-resolution touch screen for intuitive operation and accurate, temperature-compensated measurements.
Key Performance Metrics
Key Performance Metrics
160 L/min
Max Test Flow
1,500 Pa
Pressure Scale
1,000 sets
Data Storage
Technical Specifications

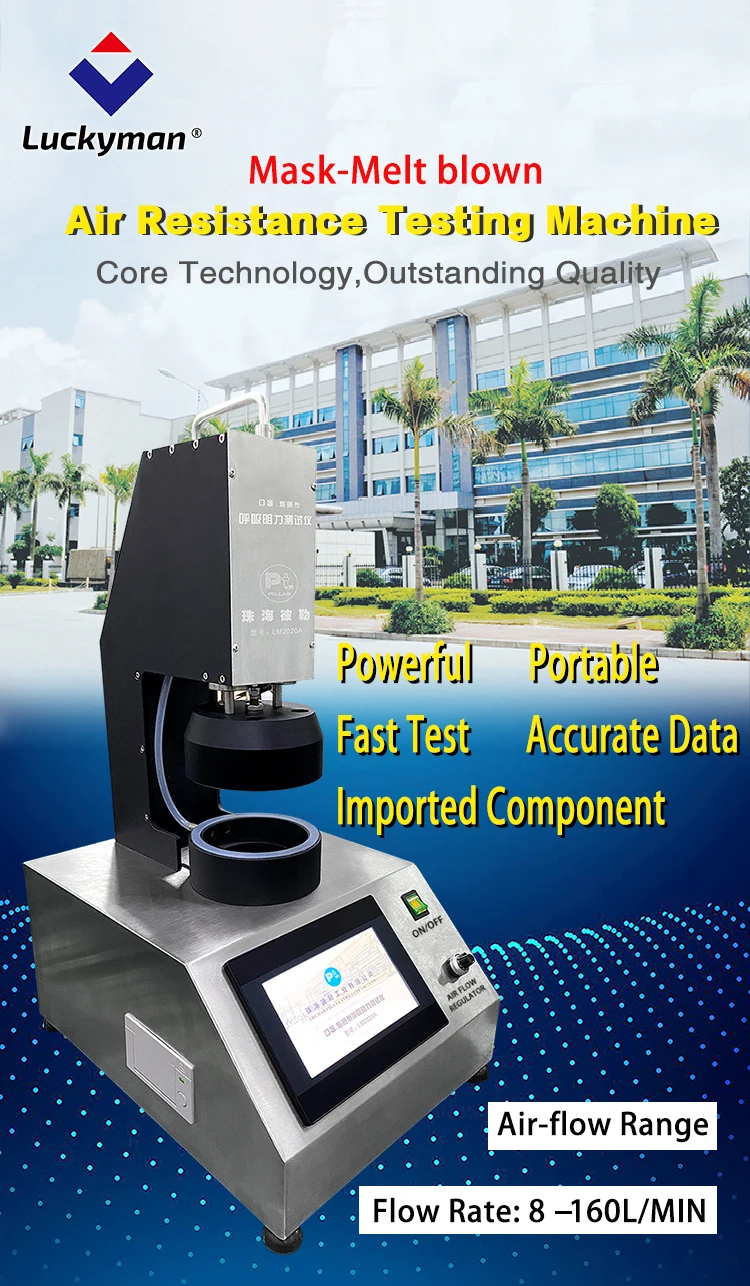

- Test Flow Range
- 8-160L/min Adjustable
- Pressure Scale Range
- ±1500Pa
- Sensor Technology
- Imported flow sensor chip with automatic temperature and pressure compensation

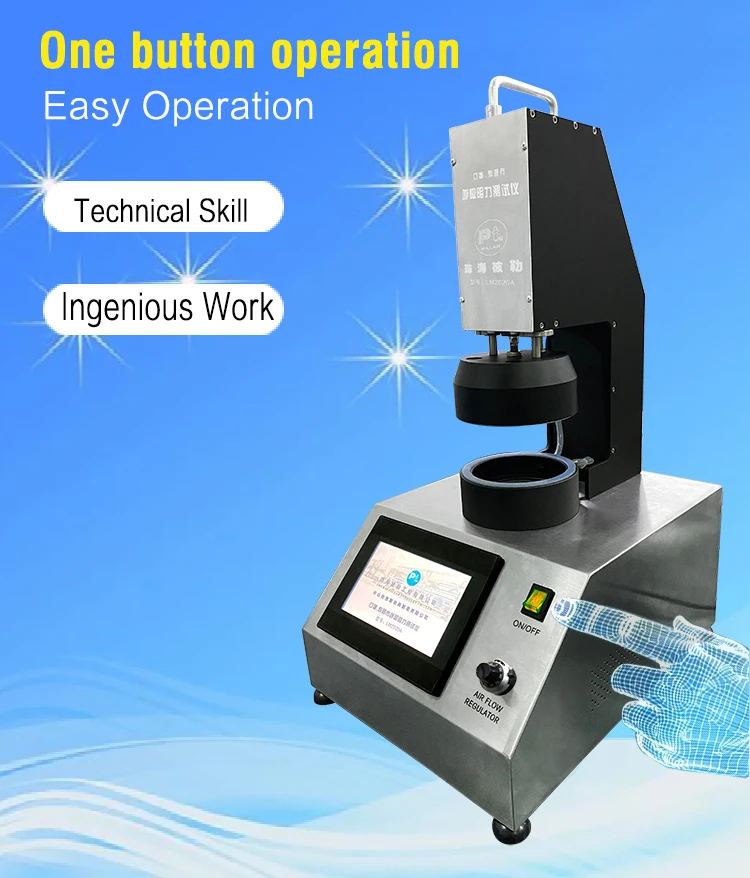

- User Interface
- ChineseEnglishTouch Screen
Compliance & Standards
Supported Standards
| Region | Standard Codes |
|---|---|
| China | GB2626-2006, GB/T 32610-2016, YY 0969, YY/T 0469 |
| European Union | EN149, EN14683 |
| USA | NIOSH |
Applications

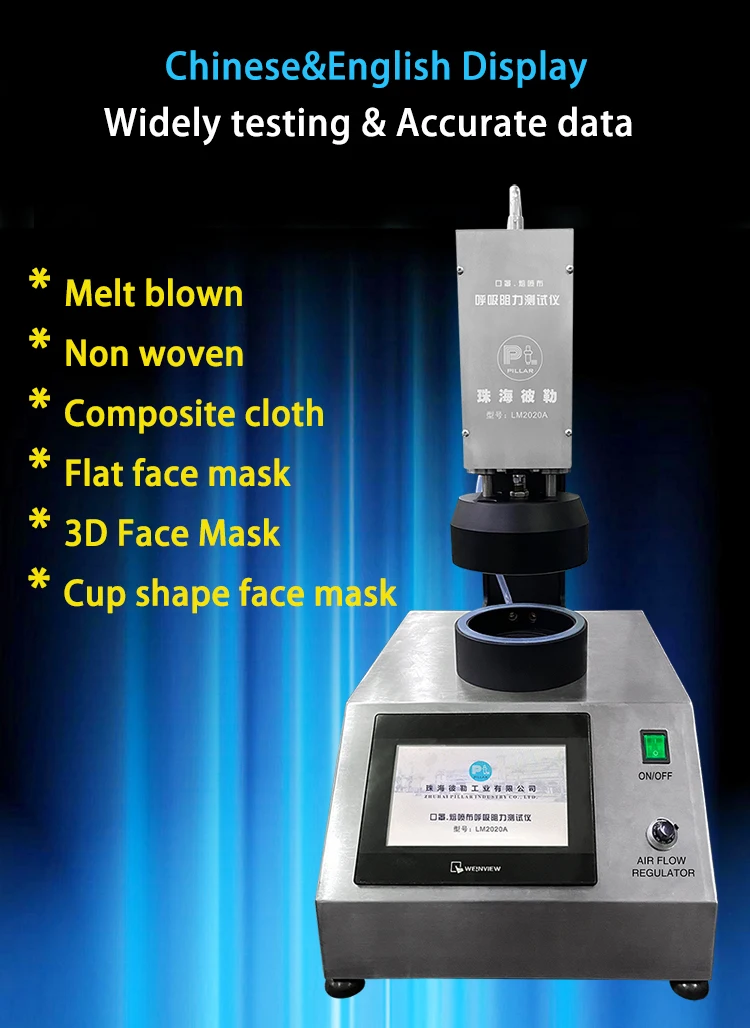

Compatible Materials
- Melt-blown fabric
- Non-woven fabric
- Composite cloth
- Flat face masks
- 3D face masks
- Cup-shaped face masks

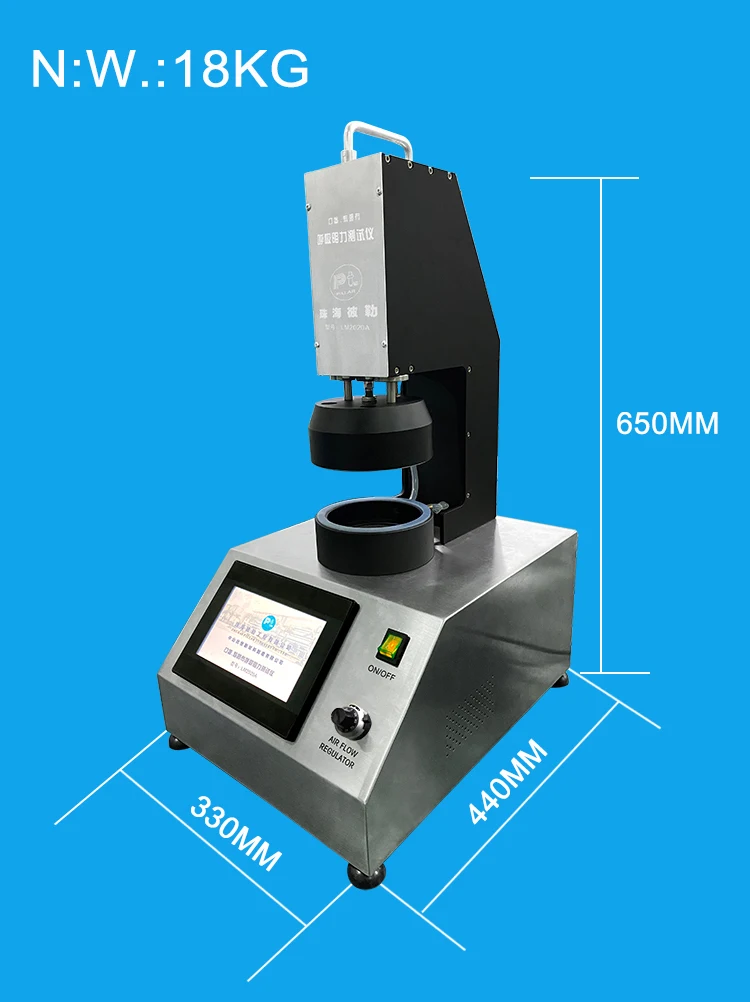

Physical Characteristics
- Machine Dimensions
- 330mm x 440mm x 650mm
- Net Weight
- 18 kg
- Construction Material
- Stainless Steel

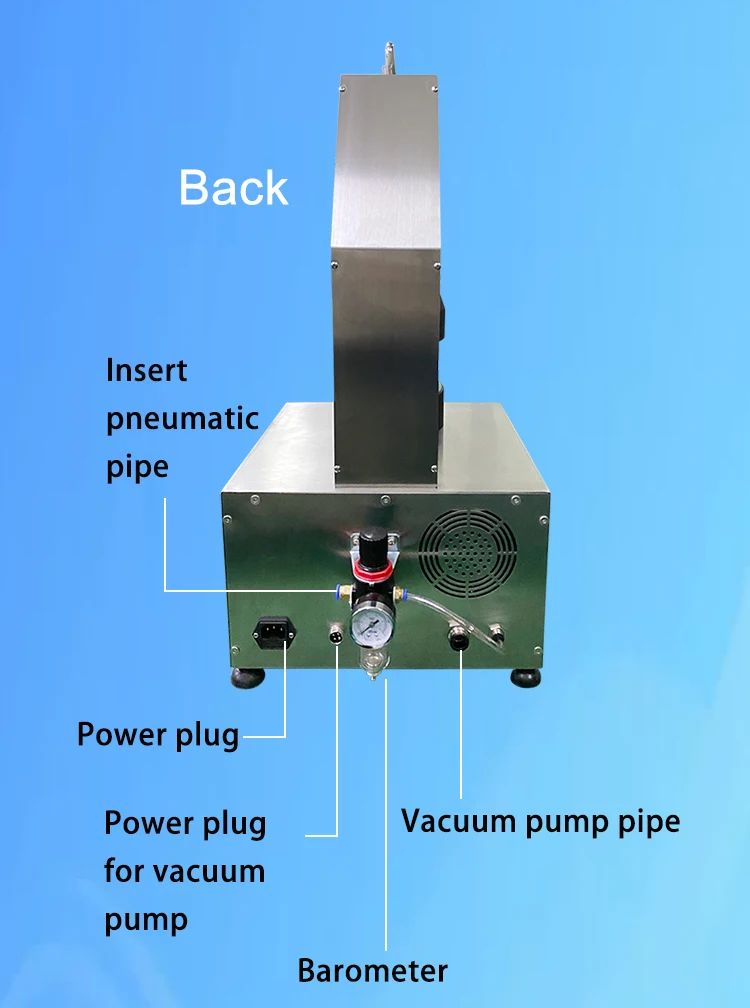

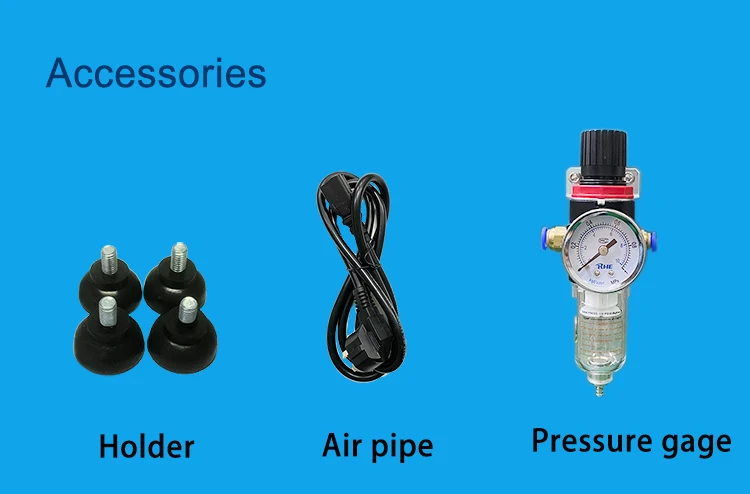

System Components
System Components
- Adjustable flow rate supply valve
- Breathing resistance testing system
- High resolution touch screen

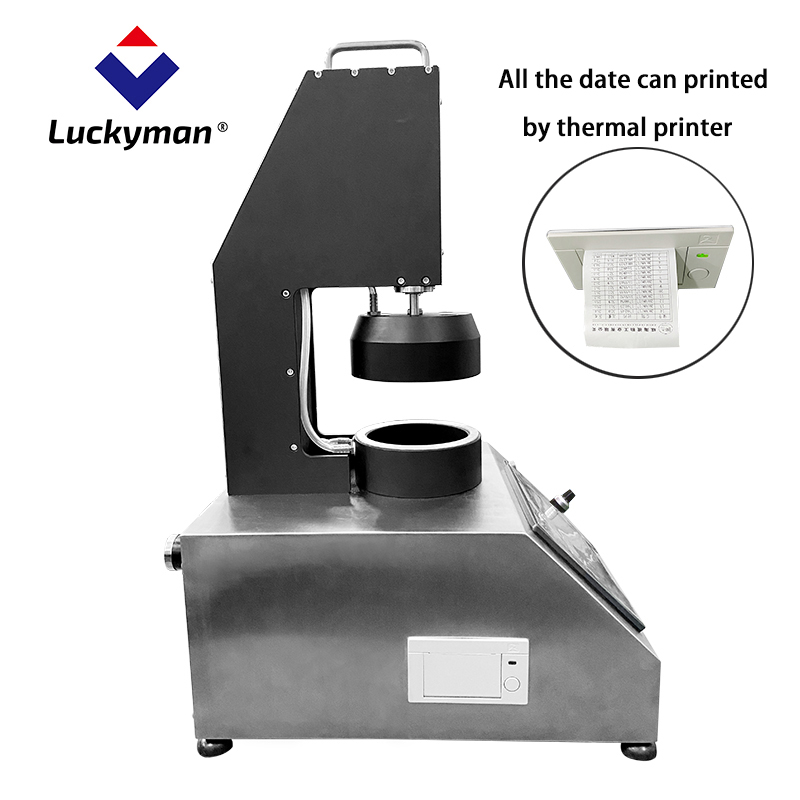

- Thermal printer
- External vacuum pump (vibration reduction)
- Data reservoir
Logistics
Shipping Features
Fast ShippingHigh QualityPortable Design
