Air Driven Liquid Pump
This air driven liquid pump utilizes compressed air to generate high-pressure liquid. It is suitable for most liquids and liquefied gases, with cycling speed that is infinitely variable.
Technical Specifications
Overview

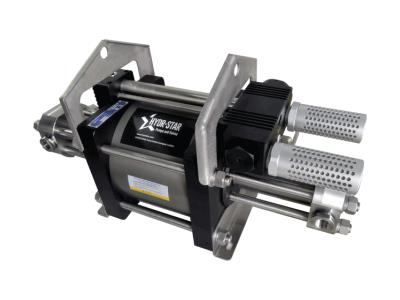

High-Performance Air Driven Liquid Pump
The AHP10 Series features a double drive, double acting design capable of reaching pressures up to 100,000 psi (7000 bar). These pumps are engineered for reliability and versatility, suitable for a wide range of fluids including hydraulic oils, water, solvents, and liquefied gases. With no need for air-line lubrication and a stall feature that holds pressure without power consumption, they offer an efficient and cost-effective solution for demanding industrial applications.
Performance Highlights
Maximum Pressure Capability
100,000 psi
Max Pressure
7,000 bar
Max Pressure
- Maximum Flow Rate
- 31.5 l/min

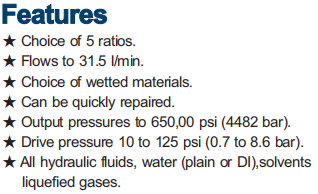

Key Features
Core Features
- Infinitely variable cycling speed
- Stall feature at pre-determined pressure
- Unbalanced cycling spool for immediate response
- No air-line lubrication required
- Compact and easy to maintain design
- Double drive, double acting configuration
Technical Specifications

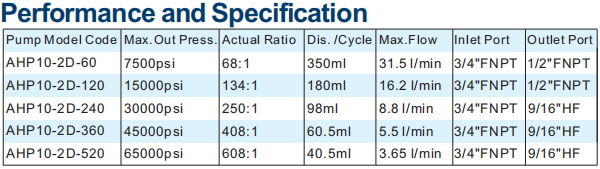

Model Performance Comparison
| Model Code | Max Output Pressure | Actual Ratio | Displacement/Cycle | Max Flow | Outlet Port |
|---|---|---|---|---|---|
| AHP10-2D-60 | 7500 psi | 68:1 | 350 ml | 31.5 l/min | 1/2" FNPT |
| AHP10-2D-120 | 15000 psi | 134:1 | 180 ml | 16.2 l/min | 1/2" FNPT |
| AHP10-2D-240 | 30000 psi | 250:1 | 98 ml | 8.8 l/min | 9/16" HF |
| AHP10-2D-360 | 45000 psi | 408:1 | 60.5 ml | 5.5 l/min | 9/16" HF |
| AHP10-2D-520 | 65000 psi | 608:1 | 40.5 ml | 3.65 l/min | 9/16" HF |
- Air Drive Pressure Range
- 10 to 125 psi (0.7 to 8.6 bar)
- Standard Inlet Port
- 3/4" FNPT
Compatibility & Compliance
Available Compliance Standards
CEATEXNACE
- Compatible Fluids
- Hydraulic FluidsPlain WaterDI WaterSolventsLiquefied Gases
