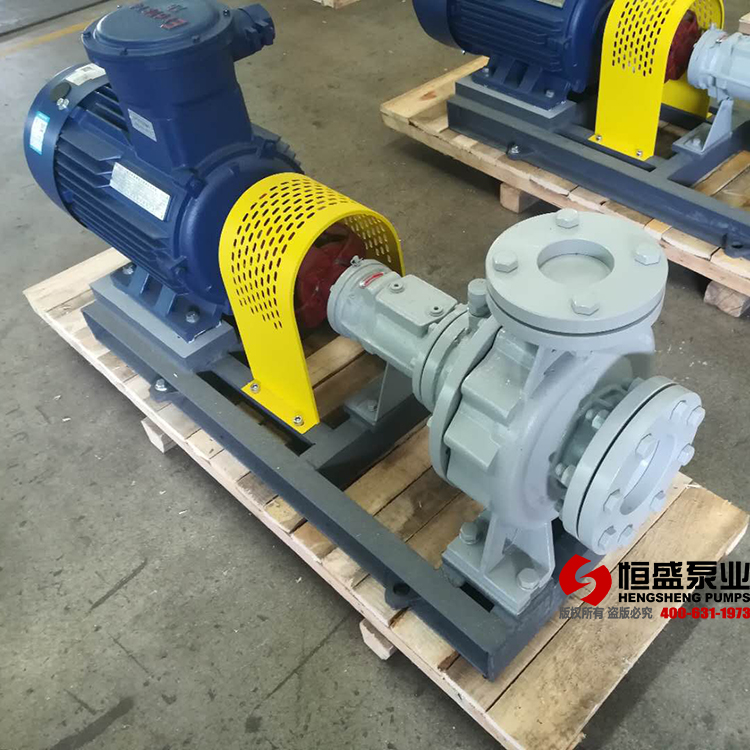

Air-Cooled Thermal Oil Circulation Pump
This air-cooled hot oil pump is designed to transport high-temperature liquids without solid particles. Its corrosion resistance and working temperature depend on the material of the main parts connected with the medium.
Technical Specifications
Overview
High-Efficiency Thermal Circulation
The RY Series air-cooled hot oil pump is an energy-conserving solution engineered to provide reliable performance in high-temperature fluid transport. Designed in accordance with GB5662 standards, this pump effectively handles thermal oils without solid particles, making it ideal for demanding industrial circulation systems. Its sophisticated air-cooling design ensures optimal temperature regulation and enhanced longevity, even in continuous high-heat environments.
Performance
Operating Range
500 m3/h
Max Capacity
125 m
Max Delivery Lift
350 °C
Max Temperature
Construction
Model Coding Table
| Component | Definition |
|---|---|
| RY | Hot Oil Pump Series |
| 100 | Inlet Diameter (mm) |
| 65 | Outlet Diameter (mm) |
| 200 | Nominal Impeller Diameter (mm) |
| A | First Trim of Impeller |
- Material Specifications
- HT200ZG230-4501Cr18N8-9TiOCr18N8912Mo2Ti
Applications
Suitable Industries
- Petro-chemical
- Oil Industry
- Synthetic-fibre
- Textile Dyeing and Printing
- Plastic and Rubber
- Papermaking
- Timber Processing
- Construction
- Food Processing
- Medical Manufacturing
