Technical Specifications
Product Overview

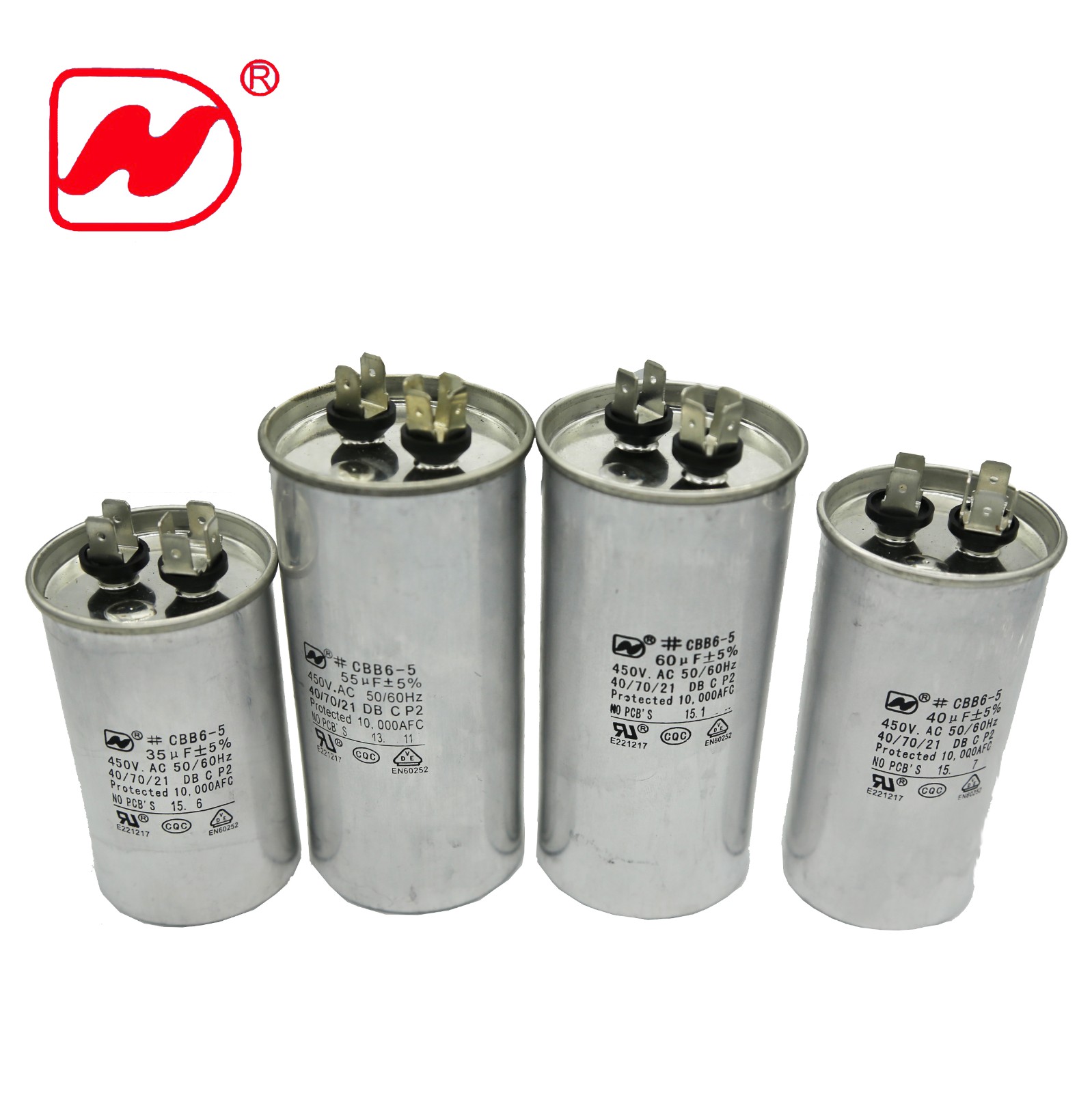

High-Performance Motor Run Capacitor
The CBB65 series is a high-quality motor run capacitor specifically designed for air conditioning systems and HVAC applications. It features a robust, oil-filled construction that ensures excellent self-healing properties and low dissipation for stable electrical performance. With its explosion-proof safety design and compact dimensions, it provides a reliable solution for motor starting and running in both residential and commercial environments.
Electrical Specifications
Key Electrical Ratings
450 VAC
Max Voltage
60 μF
Max Capacitance
10,000 AFC
Safety Protection
- Capacitance Range

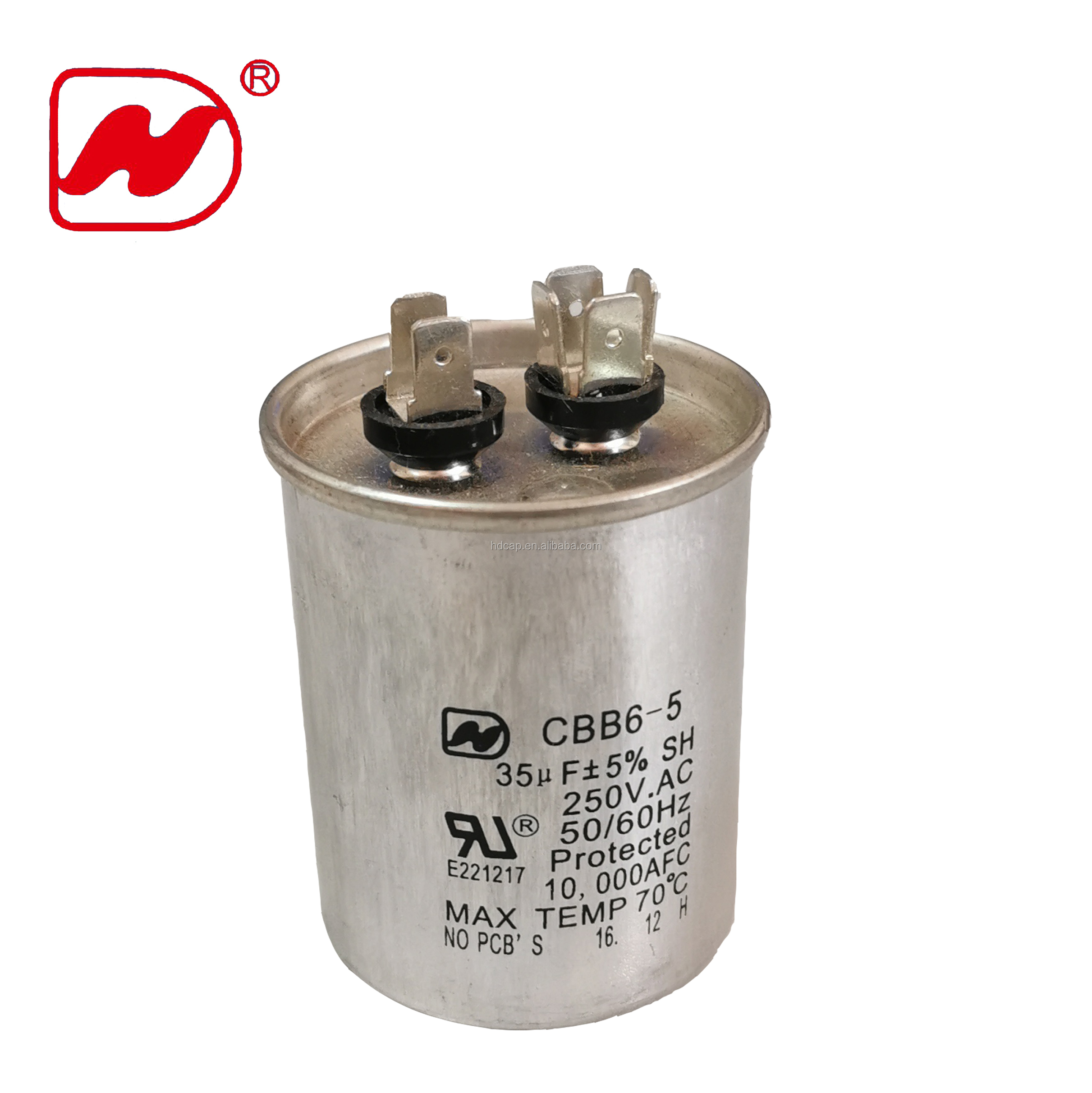

- 10μF to 60μF
- Rated Voltage

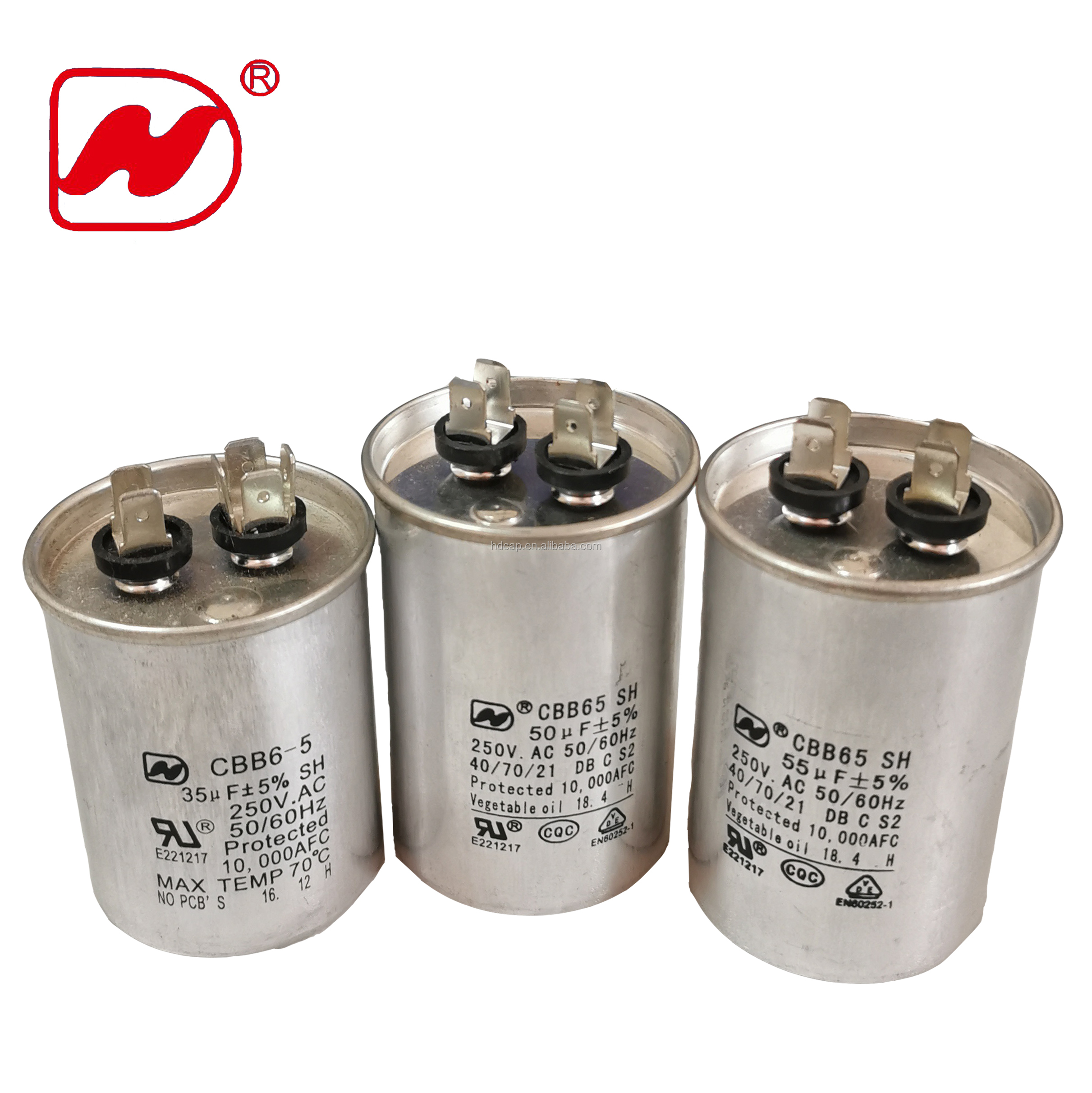

- 250VAC to 450VAC
- Frequency
- 50/60Hz
- Capacitance Tolerance
- J (±5%)K (±10%)
Technical Standards
Safety Class
S2P2Explosion-proof
Compliance Standards
- EN 60252-1
- IEC 60252-1
- ISO 9001:2015
- NO PCB (Polychlorinated Biphenyls Free)
- Climatic Category
- 40/70/21
- Life Level
- Class B
Physical Construction
Key Features
- Small dimensions for space-saving installation
- High capacitance stability
- Low dissipation factor
- Excellent self-healing performance

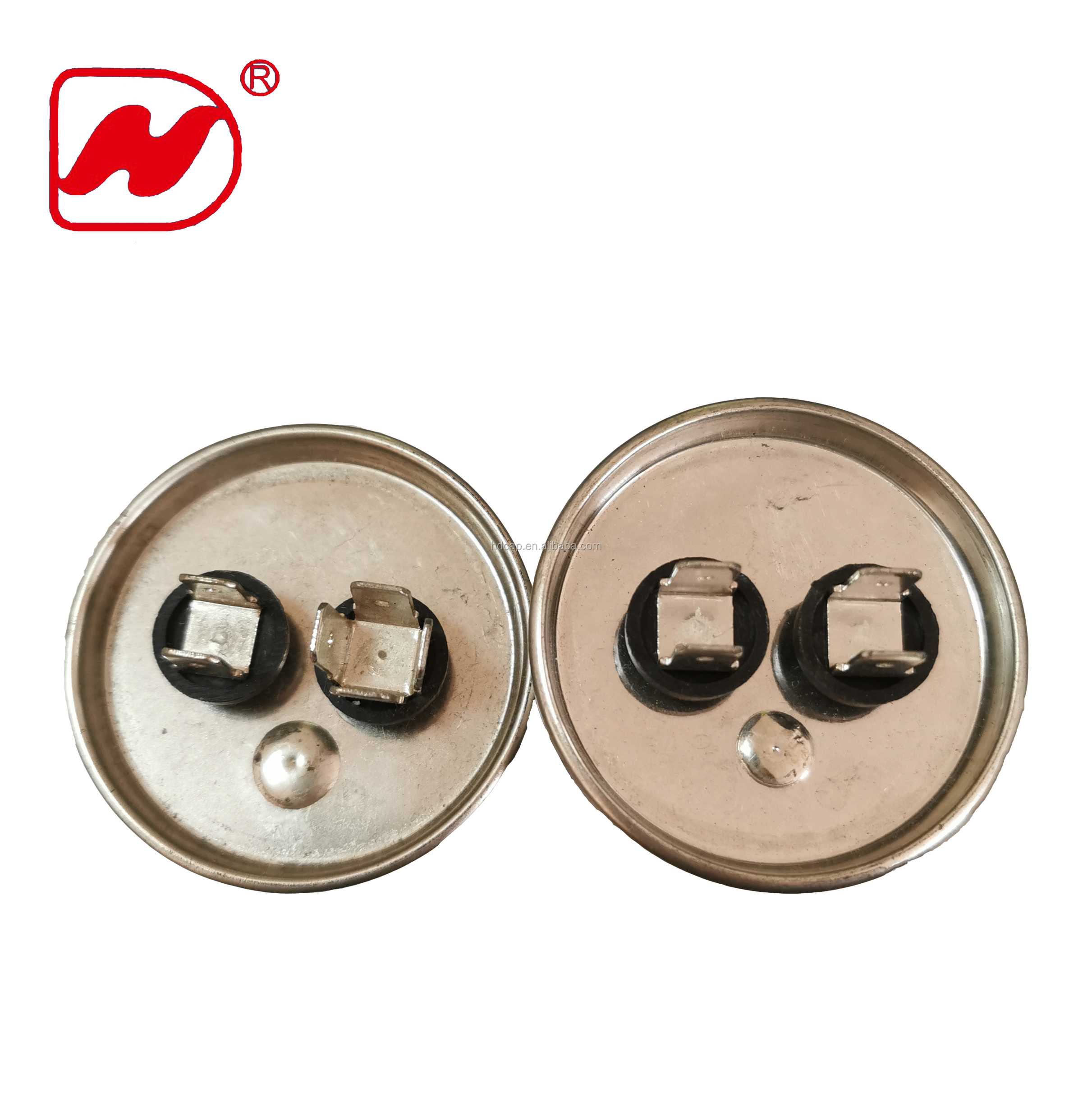

- Customizable terminal types

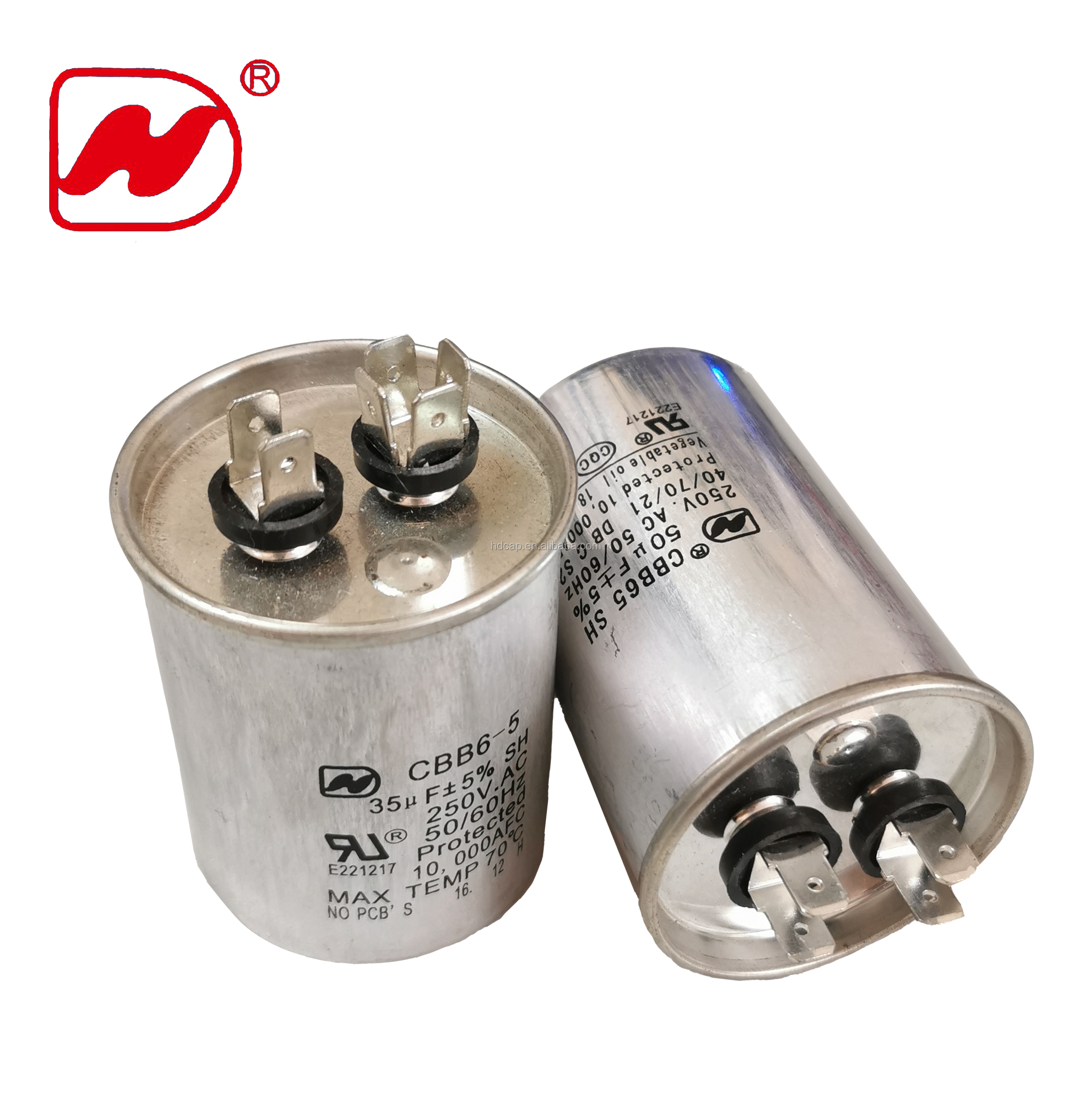

- Dielectric Fluid
- Vegetable Oil
Certifications
- Global Safety Certifications
- CQCVDETUVULCSAS-PLUSSEMKONEMKOFIMKODEMKOCE
