Technical Specifications
Product Overview
Versatile Air Conditioning Motors
These high-performance electric motors are engineered for both indoor and outdoor air conditioning units, including wall-mounted, floor-standing, and air duct systems. Designed with a compact structure, they offer reliable performance, low noise, and minimal vibration during operation. The units feature built-in safety mechanisms such as temperature and overcurrent protection, ensuring efficiency and longevity in various climate control applications.
General Features
Safety Features
Temperature ProtectionOvercurrent Protection
- Motor Categories
- AC MotorDC MotorPlastic SealIron Shell
Performance Data (Asynchronous PG)
Asynchronous Motor Specifications
| Model | Input (W) | Output (W) | Current (A) | Speed (r/min) | Noise (dB) |
|---|---|---|---|---|---|
| IDU-9K | 15 | 37 | 0.17 | 1,330 | 32 |
| IDU-12K | 20 | 47 | 0.22 | 1,330 | 38 |
| IUD-18K | 25 | 59 | 0.28 | 1,330 | 38 |
| IDU-24K | 50 | 95 | 0.46 | 1,330 | 45 |

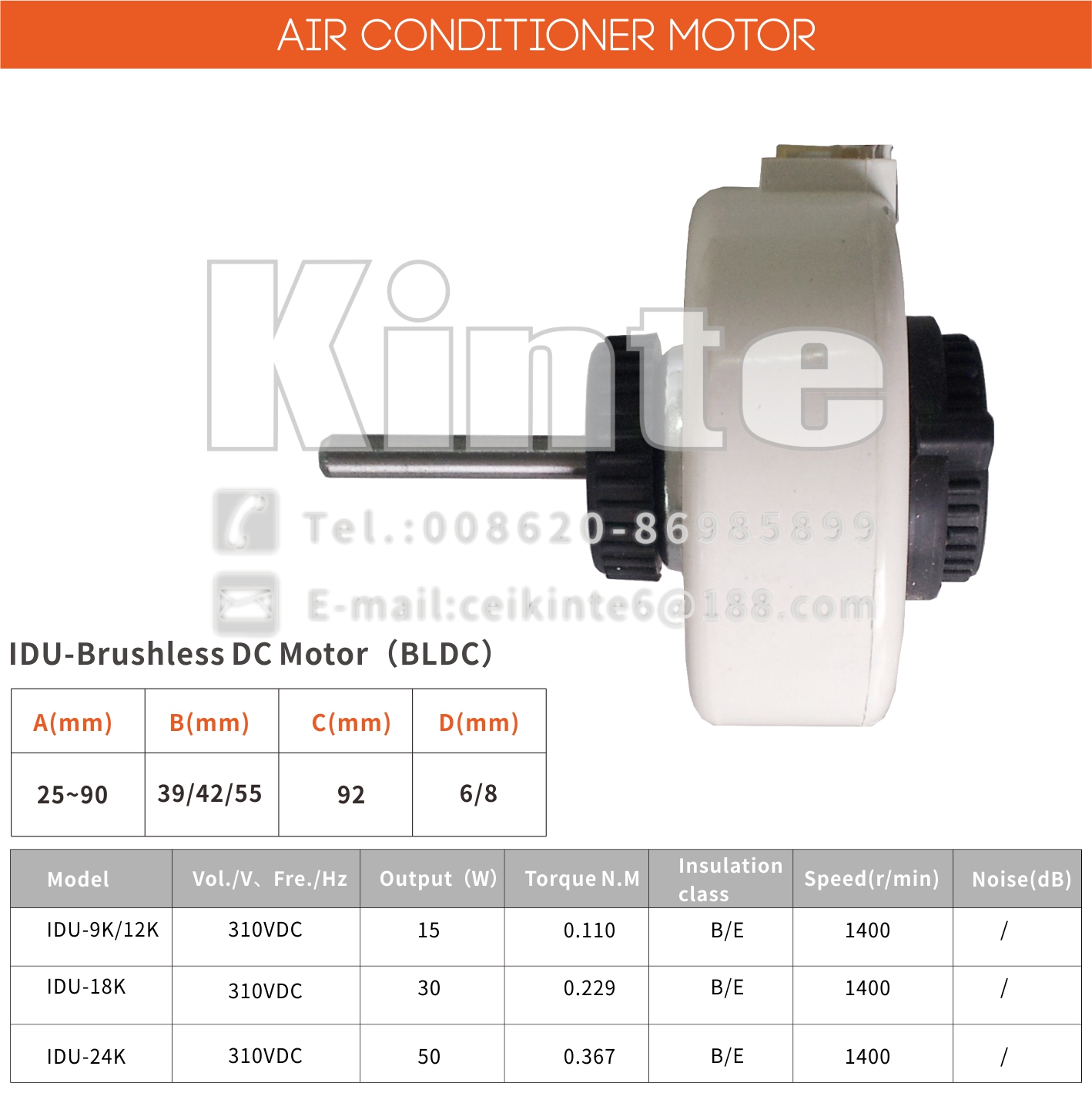

Performance Data (BLDC)
Brushless DC Motor Specifications
| Model | Power (W) | Torque (N.m) | Speed (r/min) |
|---|---|---|---|
| IDU-9K/12K | 15 | 0.11 | 1,400 |
| IDU-18K | 30 | 0.229 | 1,400 |
| IDU-24K | 50 | 0.367 | 1,400 |
- Insulation Class
- B/E
