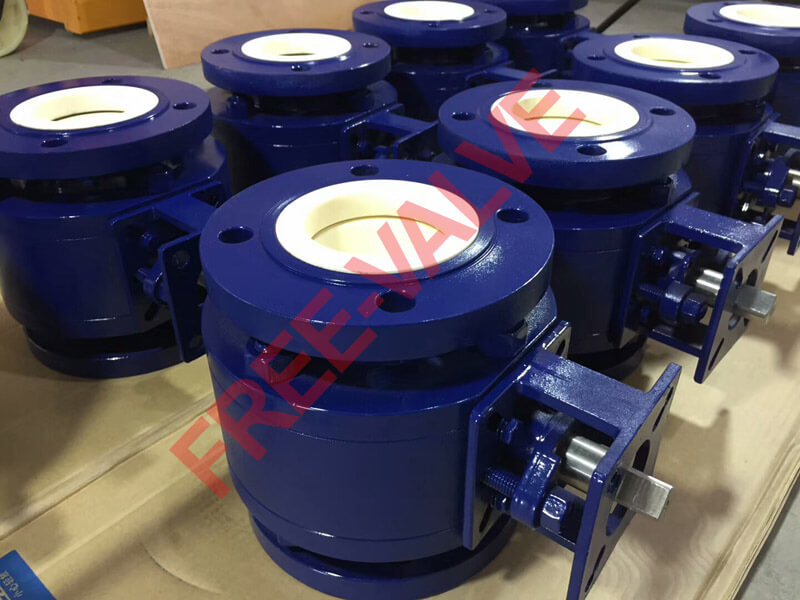

Adjustable Zirconium Ceramic Ball Valve
This adjustable ball valve features internal parts made of durable engineering ceramics for enhanced wear resistance. It is widely used for on/off functionality and throttling control in corrosive environments containing abrasive solids.
Technical Specifications
Product Overview
High-Performance Ceramic Control Valve
This adjustable zirconium ceramic ball valve is engineered for demanding industrial environments requiring superior wear and corrosion resistance. Utilizing advanced engineering ceramics with hardness exceeding HRC80, it provides exceptional durability against abrasive solids and corrosive media. The floating ball design ensures reliable sealing under differential pressure, making it an ideal solution for precise flow control and shut-off tasks in aggressive process applications.
Technical Specifications
- Nominal Pressure
- 1.0 MPa, Class 150
- Size Range
- DN50 to DN200 (NPS 2 to NPS 8)
- Connection Type
- Flange
- Max Working Temperature
- 200 ℃
- Sealing Surface Material
- Engineering Ceramic

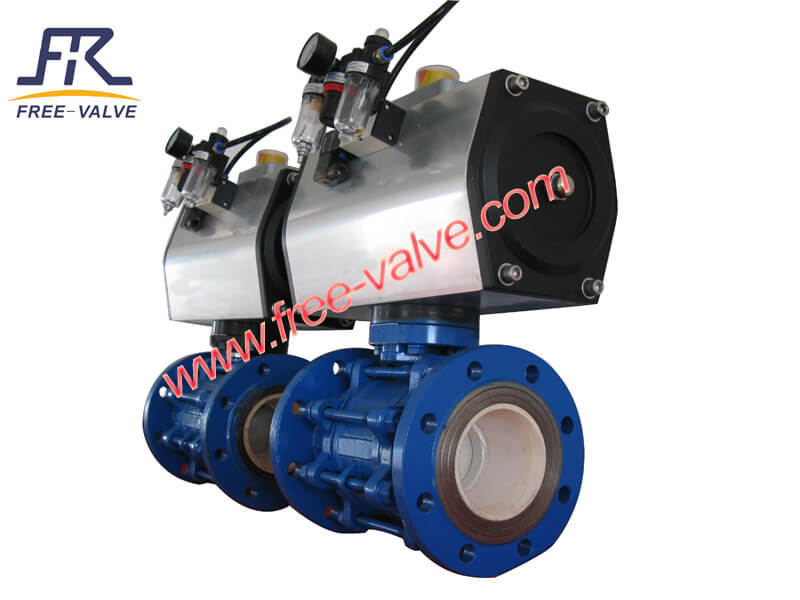

- Operating Types
- ManualPneumaticElectricHydraulic
Compliance & Standards
Standards Compliance
| Category | Standards |
|---|---|
| Flange Ends | ASME B16.5, GB/T9113 |
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, API609 |
Application Suitability
Suitable Media & Applications
- Silicon Powder
- Alumina Powder
- Dry Coal Powder
- Limestone Slurry
- Gypsum Slurry
- Plaster
- Fly Ash
- Mining Ore
- Coal Powder Injection
- Metallurgical Dust
- Thermal Power Plant FGD
- LiCoO2 Powder
Key Features
Ceramic Hardness
80 HRC
Hardness
