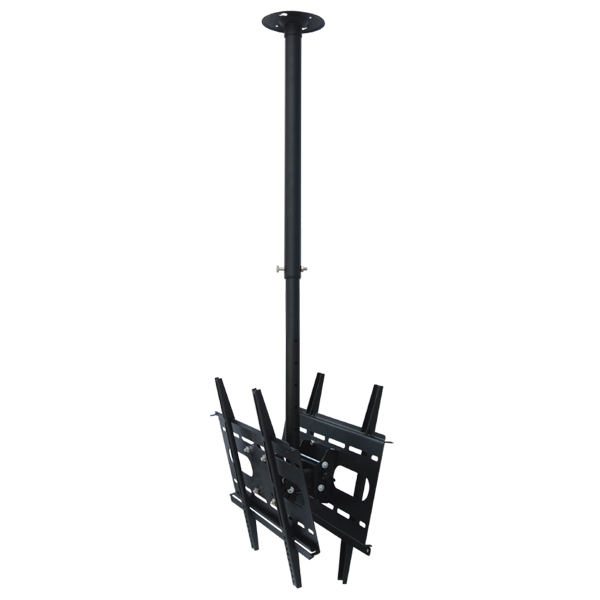

Adjustable Tilt TV Ceiling Mount
This ceiling mount is designed for securely mounting flat panel displays with adjustable height and tilt. Constructed from high gauge cold rolled steel, it ensures stability and includes a universal hardware pack.
Technical Specifications
Overview
Versatile Ceiling Mounting Solution
This adjustable tilt TV ceiling mount is engineered from high-gauge cold-rolled steel, providing a robust and secure solution for professional installations. It features a tool-less tilt mechanism and 360° pivot leveling to ensure optimal viewing angles in any commercial or residential space. With an adjustable length and optional security locking, it offers both flexibility and theft protection for screens ranging from 23'' to 37''.
Key Highlights
Key Features
56 kg
Max Load Capacity
15 °
Tilt Range

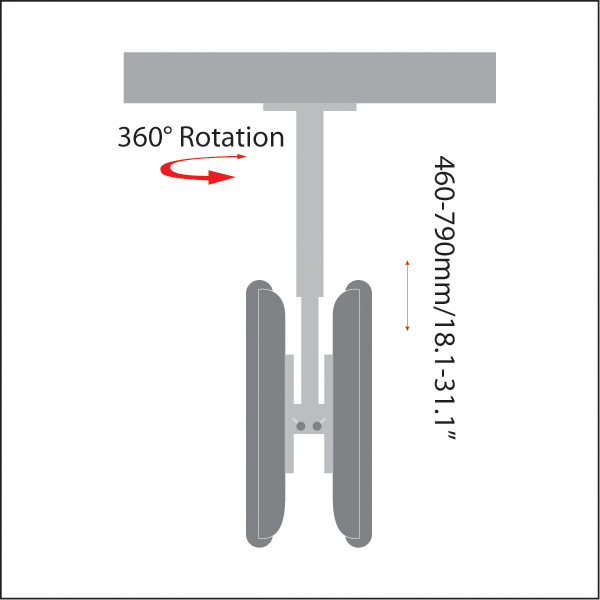

360 °
Pivot Leveling
Technical Specifications
- Screen Compatibility
- 23''-37''

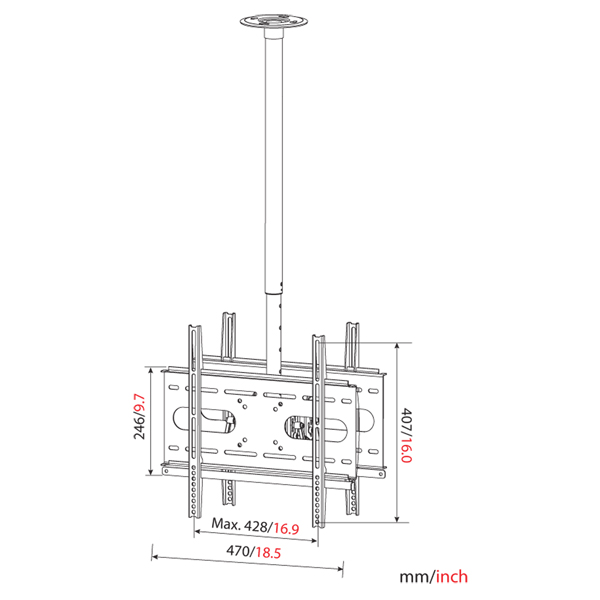

- Maximum VESA
- 400×400
- Material
- High gauge cold rolled steel
- Available Finishes
- Powder Coat SilverBlack
Adjustability
- Adjustable Length Range
- 477mm - 806mm
- Tilt Adjustment
- Tool-less continuous adjustment with locking knob
Logistics & Packaging
Standard Packaging
| Metric | Value |
|---|---|
| Quantity per Carton | 2 pcs |
| Carton Size | 56 x 25.5 x 25.5 cm |
| Net Weight (NW) | 9.8 kg |
| Gross Weight (GW) | 12.6 kg |
Container Loading Capacity
- 20' Container: 1538 pcs / 769 ctns
- 40' Container: 3078 pcs / 1539 ctns
Safety & Installation
Installation Features
Universal Hardware IncludedOptional Security LockAnti-Theft Guard
