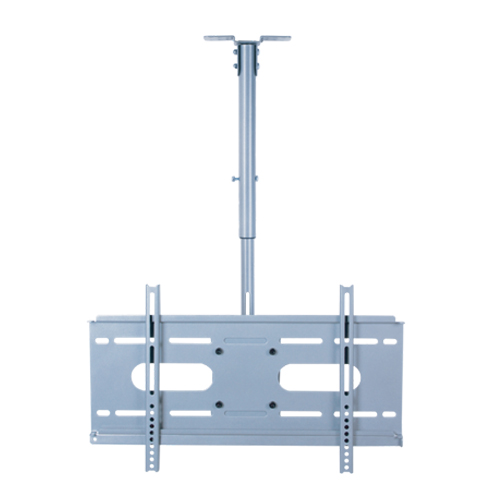

Adjustable Tilt Ceiling Mount for Flat Panel Displays
This ceiling mount is designed to securely hold flat panel TVs and displays. It features an adjustable pole for optimal viewing height and tilt adjustments for flexible viewing angles.
Technical Specifications
Overview
Professional Ceiling Mount Solution
This adjustable tilt ceiling mount is engineered from high-gauge cold-rolled steel, providing a robust solution for mounting flat panel displays in commercial or residential spaces. It features a tool-less tilt mechanism and an adjustable pole length ranging from 380mm to 620mm for optimal viewing height. With a high load capacity of 56kg and optional security features, it ensures a safe and versatile installation for screens up to 37 inches.
Key Performance Metrics
Key Performance Metrics
56 kg
Max Load Capacity
37 inch
Max Screen Size
620 mm
Max Extension
Technical Specifications
- Screen Compatibility
- 23''-37''
- Maximum VESA Pattern
- 500×300 mm
- Material
- High gauge cold rolled steel

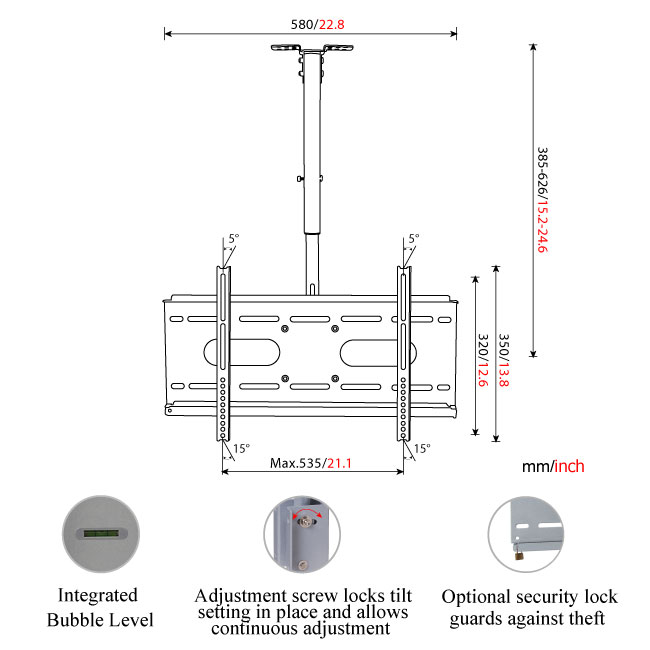

Adjustability
Adjustment Features
- Tilt adjustment without tools
- Continuous adjustment with locking screws
- Integrated bubble level for precise leveling
- Tilt Range
- -10° to +5°
- Adjustable Length
- 380mm - 620mm
Safety & Security
Security Options
Optional Security LockAnti-Theft Guard
Logistics & Packaging
Packaging Specifications
| Metric | Value |
|---|---|
| Quantity per Carton | 3 pcs |
| Carton Size | 63 x 25.5 x 31 cm |
| Net Weight (NW) | 13.5 kgs |
| Gross Weight (GW) | 15.4 kgs |
Container Loading Capacity
- 20' Container: 1740 pcs (580 ctns)
- 40' Container: 3480 pcs (1160 ctns)
Finish & Aesthetics
- Available Finishes
- Powder Coat SilverBlack
