Technical Specifications
Overview

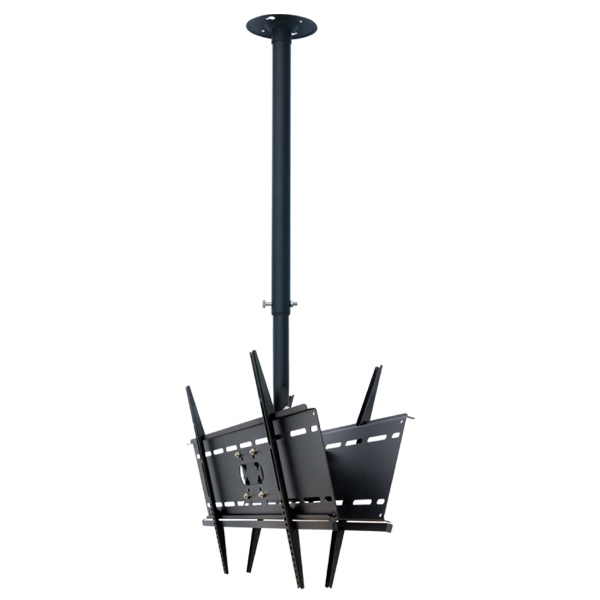

Heavy-Duty Adjustable Ceiling Mount
This professional-grade ceiling mount is engineered for flat panel displays ranging from 37'' to 60'', offering a robust solution for both commercial and residential installations. Constructed from high-gauge cold-rolled steel, it supports a substantial maximum load of 81.6 kg while providing flexible viewing angles through tilt and 360° pivot adjustments. The mount features an adjustable telescopic length and a universal hardware pack to ensure a secure and versatile setup in any environment.
Key Performance Metrics
Key Performance Metrics
81.6 kg
Max Load Capacity
360 °
Leveling Pivot
15 ±°
Tilt Range

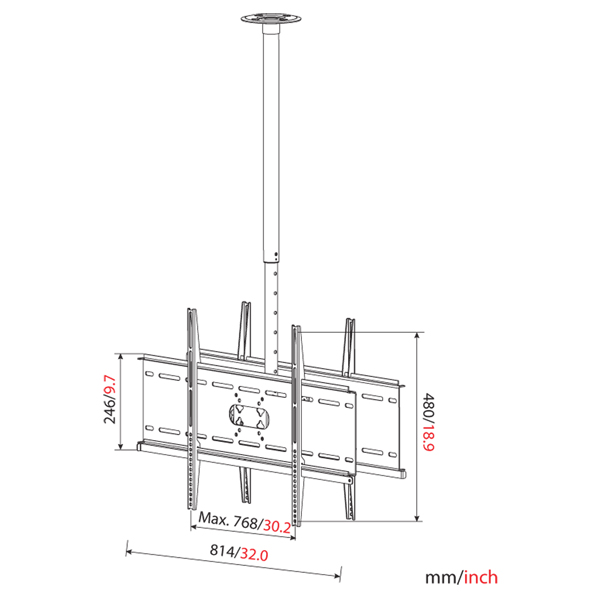

Compatibility & Dimensions
- Compatible Screen Sizes
- 37'' - 60''
- Maximum VESA Pattern
- 700 x 400 mm

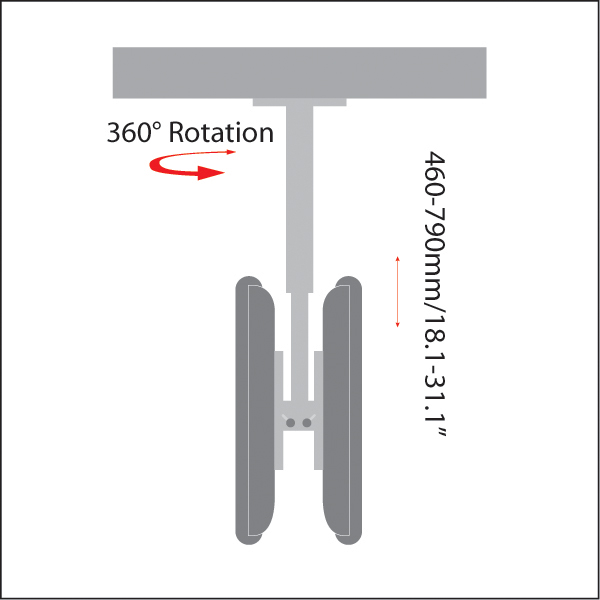

- Adjustable Pole Length
- 477mm - 806mm
Technical Features
Core Features
- Toolless tilt adjustment
- Optional security lock for theft prevention
- Universal hardware pack included
- Continuous adjustment knob for tilt locking
- Material
- High gauge cold rolled steel
- Available Finishes
- Powder Coat SilverPowder Coat Black
Logistics & Packaging
Shipping Specifications
| Metric | Value |
|---|---|
| Quantity per Carton | 2 pcs |
| Carton Size | 86.5 x 25.5 x 37 cm |
| Net Weight (NW) | 17.4 kgs |
| Gross Weight (GW) | 20.8 kgs |
| 20' Container Load | 690 pcs / 345 ctns |
| 40' Container Load | 1384 pcs / 692 ctns |
