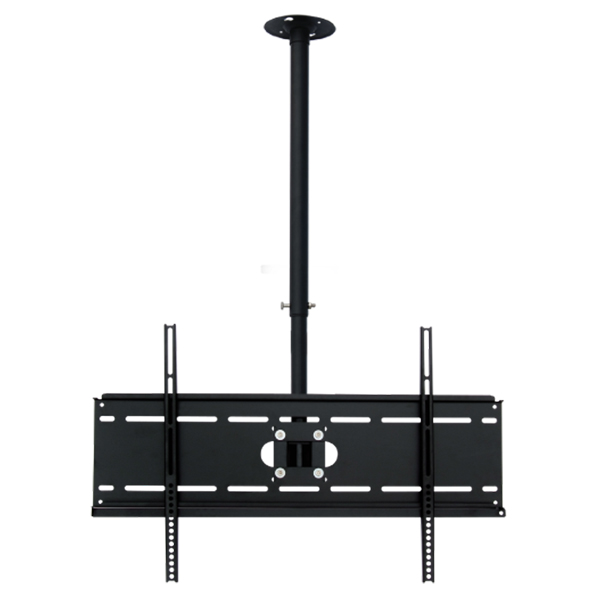

Adjustable Steel TV Ceiling Mount
This adjustable TV ceiling mount is constructed from high gauge cold rolled steel. It features tool-free tilt adjustment, optional security lock, and a universal hardware pack.
Technical Specifications
Overview
Heavy-Duty Adjustable Ceiling Mount
This adjustable steel ceiling mount is designed for screens ranging from 37'' to 60'', providing a secure and professional display solution for both commercial and residential environments. Constructed from high-gauge cold-rolled steel, it supports a maximum load of 81.6 kg and features a versatile 360° rotation for optimal viewing angles. The integrated cable management and optional security lock make it an ideal choice for high-traffic public spaces requiring both safety and a clean aesthetic.
Key Performance
Weight Capacity
81.6 kg
Max Load
Screen Size Range
37 inch
Min Size
60 inch
Max Size
Technical Specifications
Available Finishes
Powder Coat SilverBlack
- Max VESA
- 700x400
- Material
- High gauge cold rolled steel
Adjustability
Movement Range
| Feature | Range |
|---|---|
| Tilt | -10° to +5° |
| Rotation | 360° |
| Height Adjustment | 479mm - 794mm |
- Tilt Adjustment
- Tool-less tilt adjustment
Logistics & Packaging
Carton Specifications
- Quantity: 2 pcs per carton
- Carton Size: 86.5x25.5x37 cm
- Net Weight: 13.4 kg
- Gross Weight: 16.0 kg
Container Loading Capacity
| Container Type | Quantity (Units) | Quantity (Cartons) |
|---|---|---|
| 20' Container | 720 pcs | 360 ctns |
| 40' Container | 1452 pcs | 726 ctns |
Features
- Safety & Security
- Optional Security LockTheft ProtectionIntegrated Cable Management
- Installation
- Universal hardware pack included
