Technical Specifications
Overview
Versatile Ceiling Mounting Solution

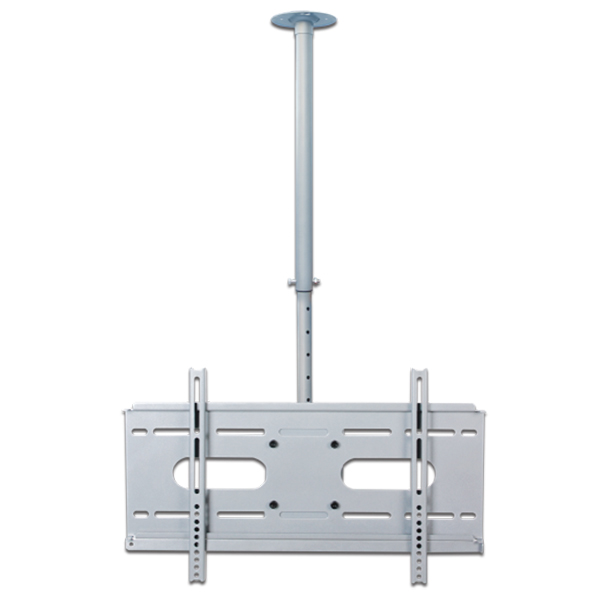

This adjustable steel TV ceiling mount is engineered for professional installations, supporting screen sizes from 23'' to 37''. Constructed from high-gauge cold-rolled steel, it offers exceptional durability and a maximum load capacity of 56 kg. Its telescopic design and 360° rotation provide maximum flexibility for commercial or residential environments where wall mounting is not an option.
Key Metrics
Performance Highlights
56 kg
Max Load
360 °
Rotation
500 x300
Max VESA
Technical Specifications
- Screen Size Compatibility
- 23'' - 37''
- Material
- High gauge cold rolled steel
- Tilt Range
- -10° to +5°

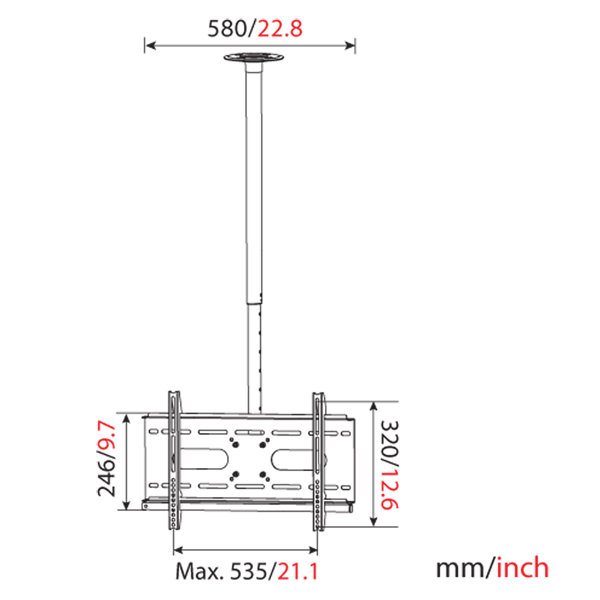

- Adjustable Length
- 479mm - 794mm
Features
Core Features
- Toolless tilt adjustment
- Optional security lock for theft prevention
- Universal hardware pack included
- Telescopic height adjustment
- 360 degree rotation for optimal viewing
Available Finishes
Silver Powder CoatBlack Powder Coat
Logistics & Packaging
Packaging Information
| Metric | Value |
|---|---|
| Quantity per Carton | 2 pcs |
| Carton Dimensions | 80.5 x 25.5 x 35.5 cm |
| Net Weight (NW) | 10.16 kg |
| Gross Weight (GW) | 12.6 kg |
Container Loading Capacity
- 20' Container: 770 pcs (385 cartons)
- 40' Container: 1546 pcs (773 cartons)
